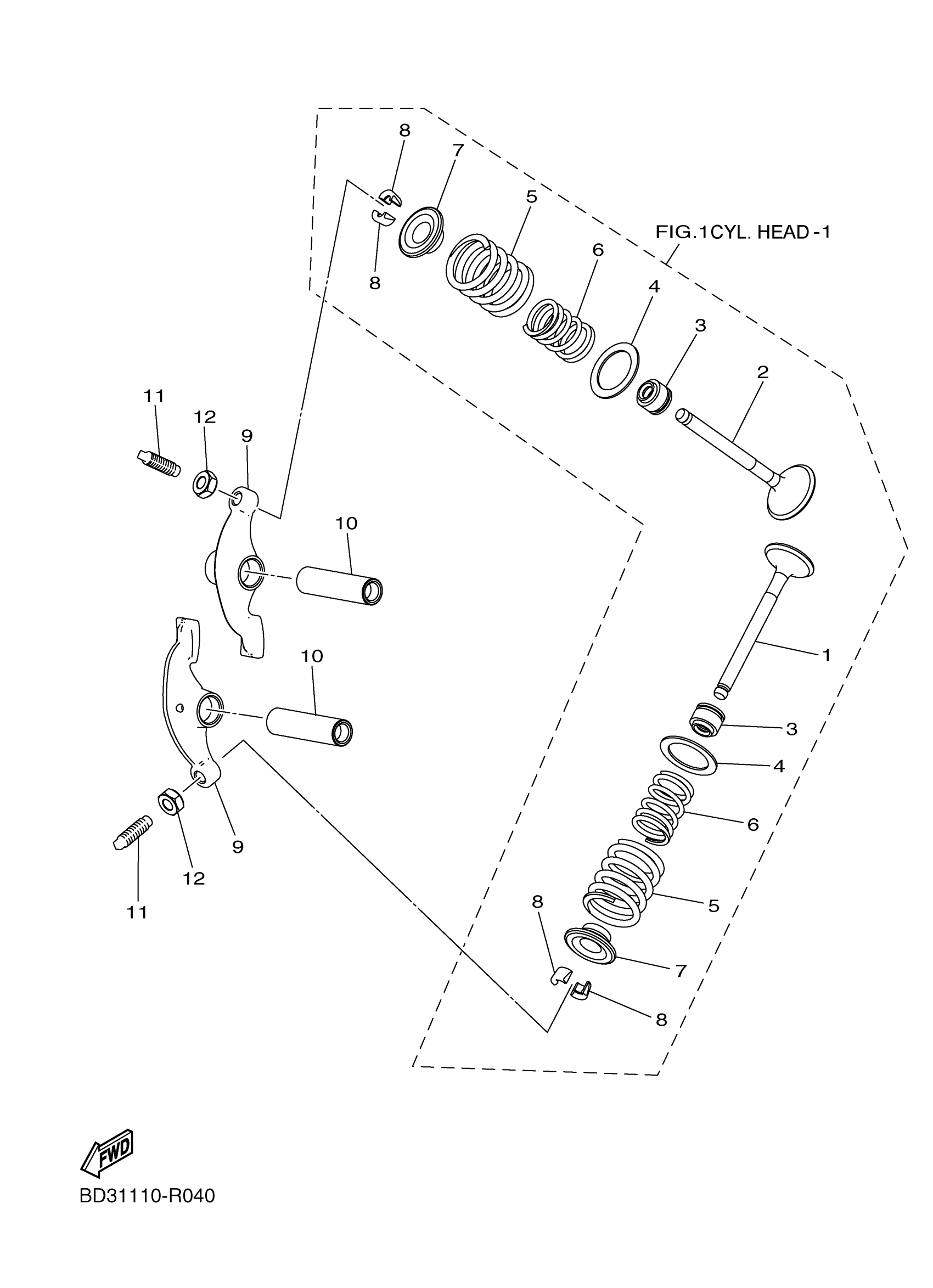

Yamaha YFM09RYXHL (RAPTOR 90) BD34 2017 VALVE Diagram

#

Description
Price

1

VALVE, EXHAUST

BD3-E2121-00-00

$46.35

2

VALVE, INTAKE

BD3-E2111-00-00

Unavailable

3

SEAL, VALVE STEM

BD3-E2119-00-00

$6.22

4

SEAT, VALVE SPRING

BD3-E2116-00-00

$1.54

5

SPRING, VALVE 1

BD3-E2113-00-00

$7.66

6

SPRING, VALVE 2

BD3-E2114-00-00

$6.00

7

RETAINER, VALVE SPRING

BD3-E2117-00-00

$10.66

8

LOCK, VALVE SPRING RETAINER

BD3-E2118-00-00

$2.78

9

ARM, VALVE ROCKER

BD3-E2151-00-00

$23.54

10

SHAFT, ROCKER

BD3-E2146-00-00

$4.88

11

SCREW, VALVE ADJUSTING

BD3-E2159-00-00

$7.10

12

NUT, LOCK

BD3-E2158-00-00

$3.69
