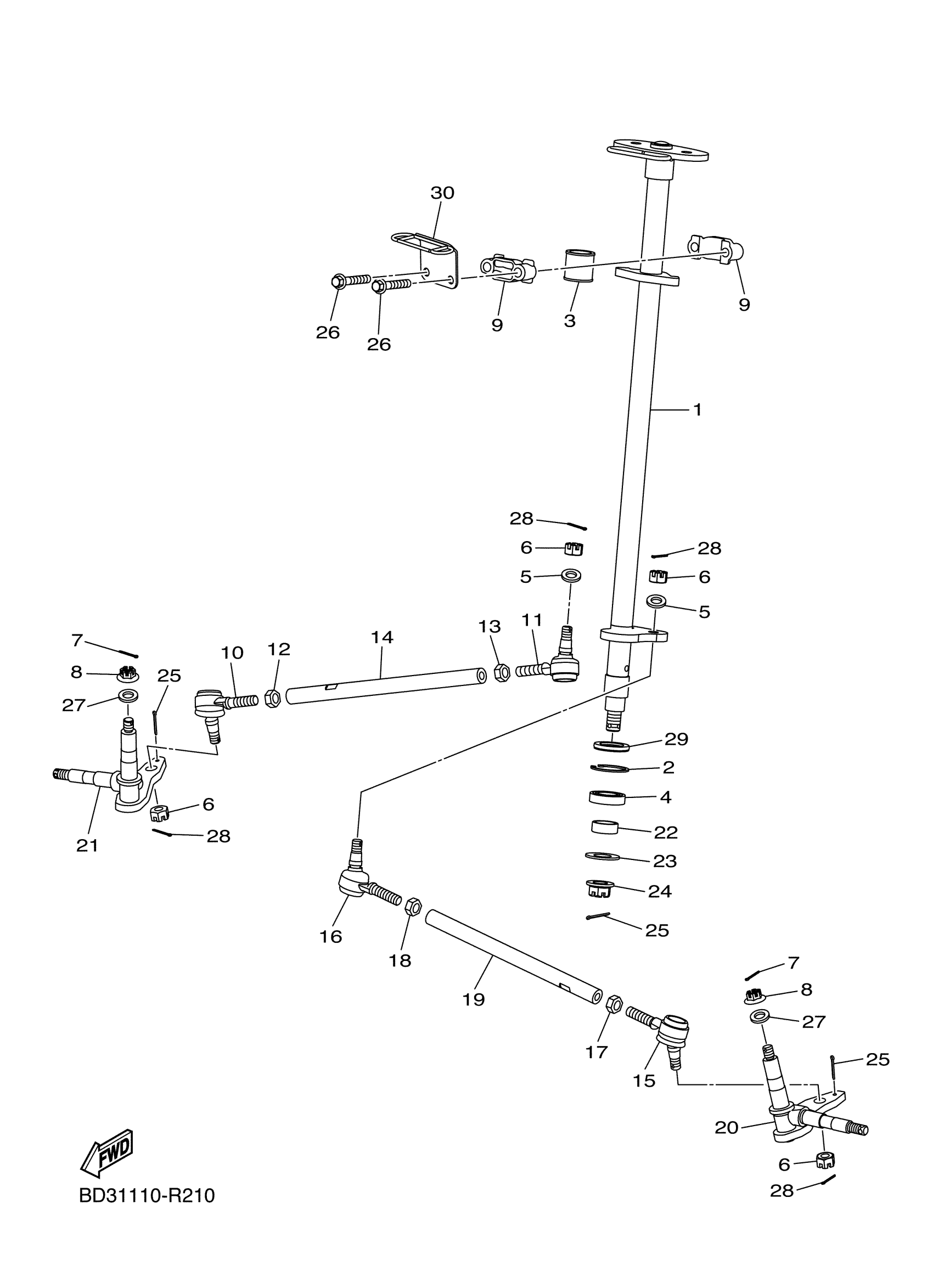

Yamaha YFM09RYXGL (RAPTOR 90) BD31 2016 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

BD3-F3813-00-00

$227.99

2

CLIP, RING

BD3-F384N-00-00

$5.60

3

COVER, STEERING

BD3-F3818-00-00

$18.99

4

BEARING, STEERING

BD3-F3812-00-00

$77.99

5

WASHER

BD3-F3427-00-00

$5.49

6

NUT

BD3-F3856-00-00

$13.99

7

PIN 2

BD3-F146E-00-00

$3.55

8

NUT

BD3-F3877-00-00

Unavailable

9

HOLDER, BEARING

BD3-F3872-00-00

$24.99

10

JOINT, UNIVERSAL 1

BD3-F3841-20-00

Unavailable

11

JOINT, UNIVERSAL 2

BD3-F3845-00-00

Unavailable

12

NUT

BD3-F1791-00-00

$4.99

13

NUT

BD3-F1829-00-00

$5.49

14

ROD, TIE

BD3-F3831-10-00

$50.99

15

JOINT, UNIVERSAL 1

BD3-F3841-20-00

Unavailable

16

JOINT, UNIVERSAL 2

BD3-F3845-00-00

Unavailable

17

NUT

BD3-F1791-00-00

$4.99

18

NUT

BD3-F1829-00-00

$5.49

19

ROD, TIE

BD3-F3831-10-00

$50.99

20

KNUCKLE, STEERING 1

BD3-F3511-00-00

Unavailable

21

KNUCKLE, STEERING 2

BD3-F3521-00-00

Unavailable

22

SPACER

BD3-F38B2-00-00

Unavailable

23

WASHER, FELT

BD3-F3165-00-00

Unavailable

24

NUT

BD3-F4531-00-00

Unavailable

25

PIN

BD3-F112N-00-00

Unavailable

26

BOLT 2

BD3-F4177-00-00

Unavailable

27

WASHER 4

BD3-F2246-00-00

Unavailable

28

PIN

BD3-F4374-00-00

Unavailable

29

SEAL

BD3-F3844-00-00

Unavailable

30

BRACKET, STEERING LOWER

BD3-F3868-00-00

Unavailable
