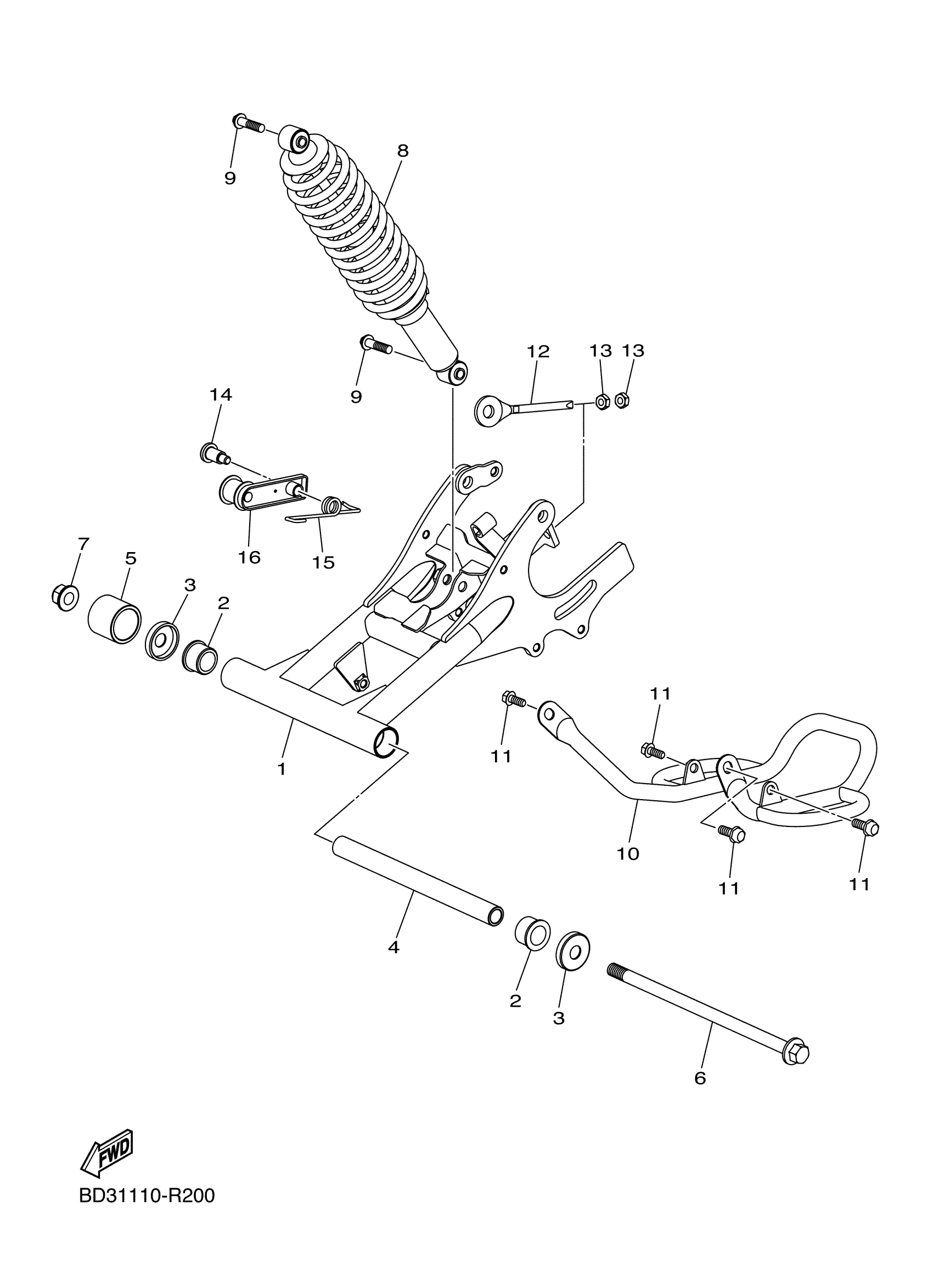

Yamaha YFM09RYXGL (RAPTOR 90) BD31 2016 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

BYS-F2110-00-00

Unavailable

2

BUSH 1

BD3-F2123-00-00

$10.49

3

COVER, THRUST 1

BD3-F2128-00-00

$10.49

4

COLLAR, DISTANCE

BD3-F2126-00-00

Unavailable

5

SEAL, GUARD

BD3-F2151-00-00

$7.49

6

BOLT 2

BD3-F1722-00-00

Unavailable

7

NUT 1

BD3-F1535-00-00

Unavailable

8

SHOCK ABSORBER ASSY, REAR

BD3-F2210-00-00

$303.99

9

BOLT

BD3-F4834-00-00

$7.49

10

GUARD 1

BD3-F2361-10-00

$33.99

11

BOLT

BD3-F3876-00-00

$3.23

12

PULLER, CHAIN 1

BD3-F5388-10-00

$15.99

13

NUT 2

BD3-F1536-10-00

$2.17

14

BOLT

BD3-F3769-10-00

$13.49

15

SPRING, TENSIONER

BD3-F2169-00-00

$13.99

16

BRACKET, TENSIONER

BD3-F2183-10-00

Unavailable
