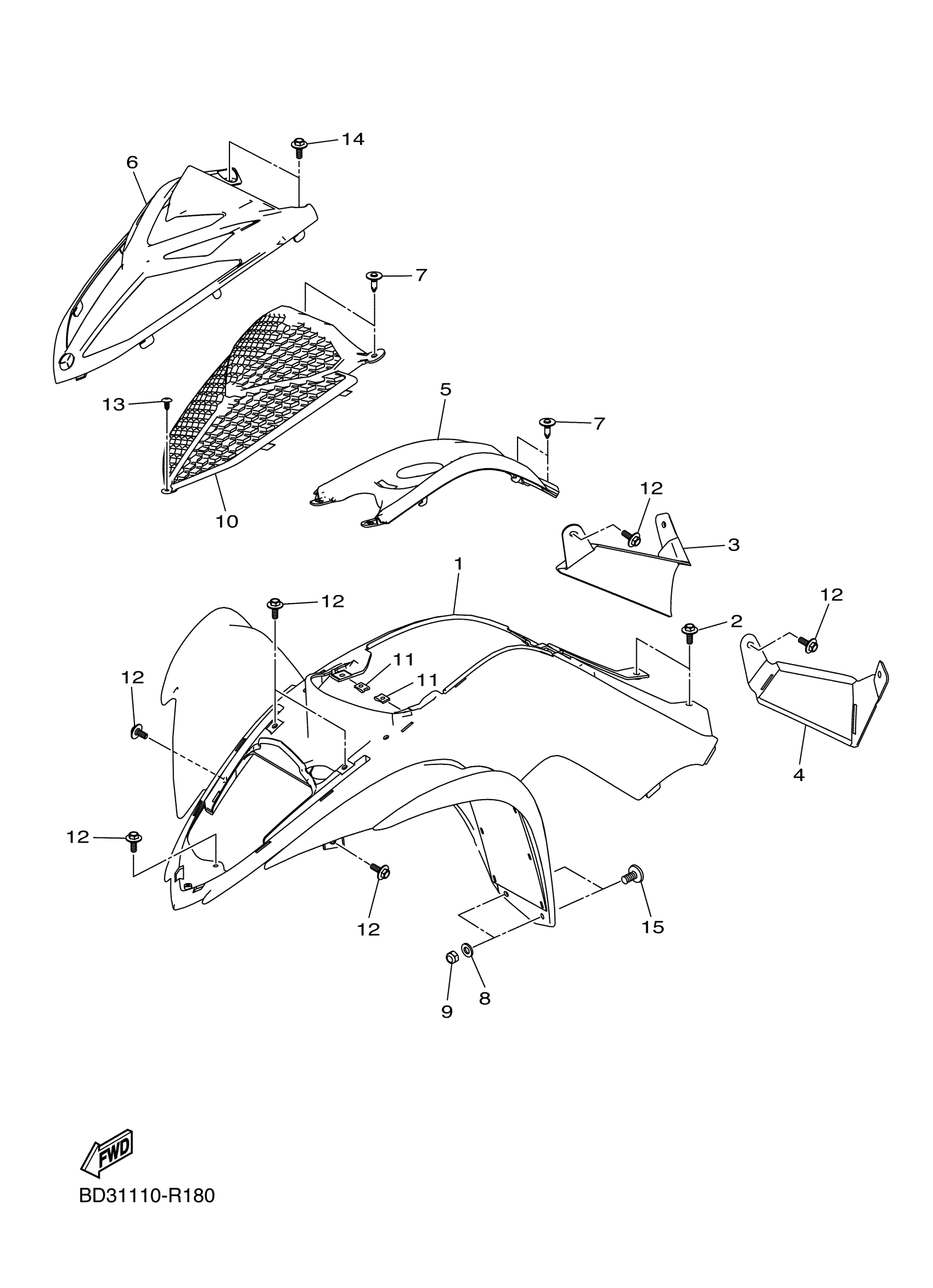

Yamaha YFM09RYXGL (RAPTOR 90) BD31 2016 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

BD3-F1500-30-00

Unavailable

2

BOLT

BD3-F1738-00-00

$5.60

3

COVER, SIDE 2

BD3-F1721-00-00

$61.99

4

COVER, SIDE 1

BD3-F1711-00-00

$53.99

5

COVER, TOP

BD3-F171A-00-00

Unavailable

6

FENDER, FRONT 2

BD3-F1556-00-00

Unavailable

7

RIVET

BD3-F1728-00-00

Unavailable

8

WASHER

BD3-F2149-00-00

$1.86

9

NUT, SPEED 3

BD3-F4148-00-00

$1.75

10

COVER, RADIATOR

BD3-E2467-00-00

$152.99

11

NUT

BD3-F4149-00-00

$7.49

12

BOLT 2

BD3-F1632-00-00

$5.60

13

SCREW, 1

BD3-F2969-00-00

$1.69

14

BOLT 2

BD3-F3356-00-00

$5.60

15

SCREW 4

BD3-F11C8-00-00

$5.60
