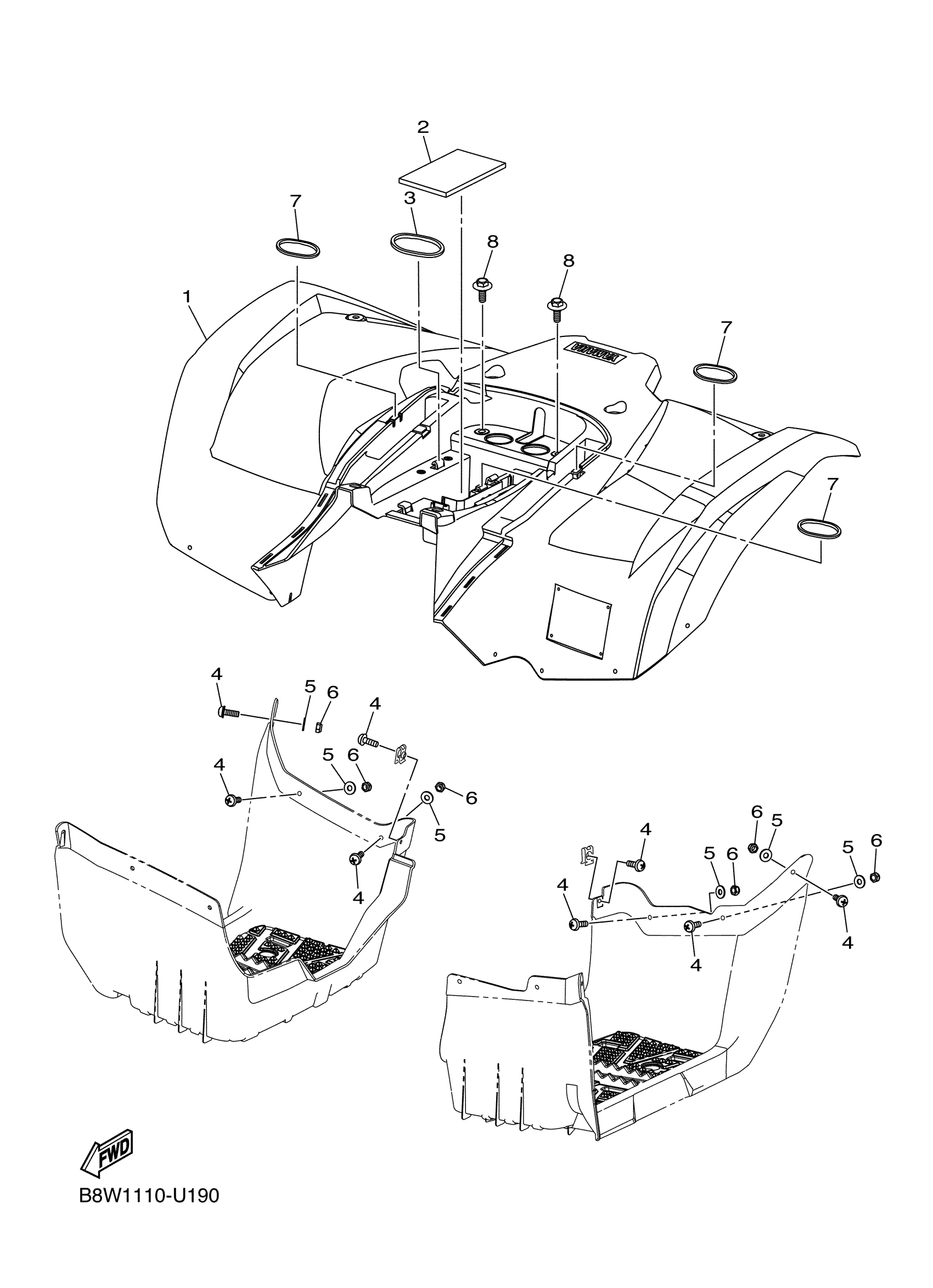

Yamaha YFM09GYXRW (GRIZZLY 90) B8WB 2024 REAR FENDER Diagram

#

Description

Price

1

REAR FENDER ASSY

B8W-F1600-50-00

$836.99

2

SEAT, BATTERY

BD3-H2122-00-00

$1.58

3

BAND, BATTERY

BD3-H2131-00-00

$5.86

4

SCREW 4

BW4-F11C8-00-00

$6.68

5

WASHER

BW4-F2149-00-00

$1.60

6

NUT 3

BW4-F4148-00-00

$1.66

7

BAND, TOOL

BD3-F1376-00-00

$3.62

8

BOLT 2

BD3-F1632-10-00

$2.96
