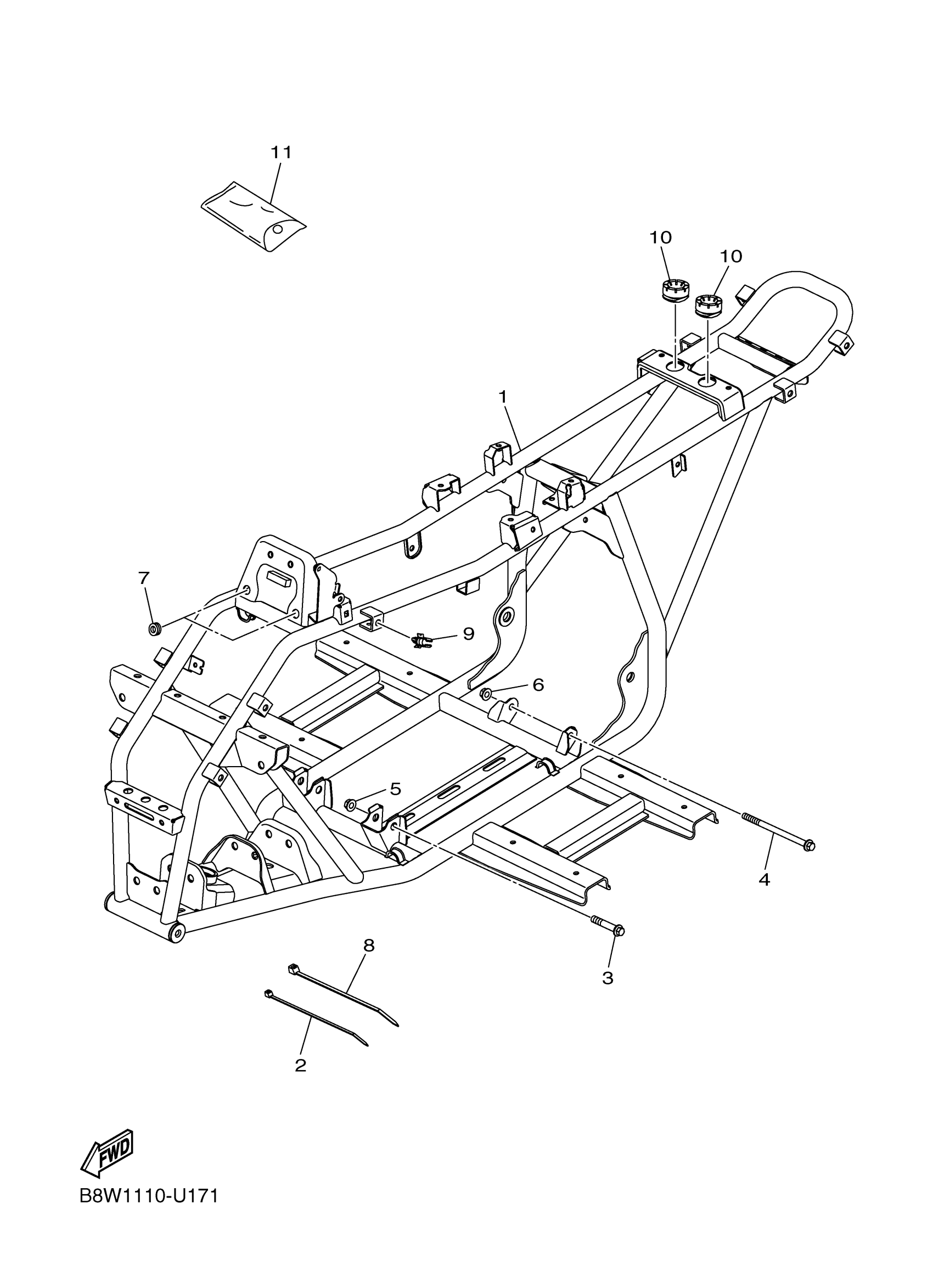

Yamaha YFM09GYXPS (GRIZZLY 90) B8W9 2023 FRAME Diagram

#

Description
Price

1

FRAME COMP.

B8W-F1110-00-00

$1,500.99

2

BAND

BD3-F1646-00-00

Unavailable

3

BOLT

BD3-F6332-10-00

$5.40

4

BOLT 3

BD3-F4178-10-00

Unavailable

5

NUT

BD3-F1839-10-00

$5.15

6

NUT

BD3-F3778-10-00

$4.57

7

GROMMET

BD3-F1719-00-00

Unavailable

8

BAND

BD3-F1647-00-00

$1.82

9

CLAMP

BD3-F15A3-00-00

Unavailable

10

DAMPER

BD3-F113B-00-00

$7.83

11

TOOL KIT

BD3-F8100-20-00

Unavailable
