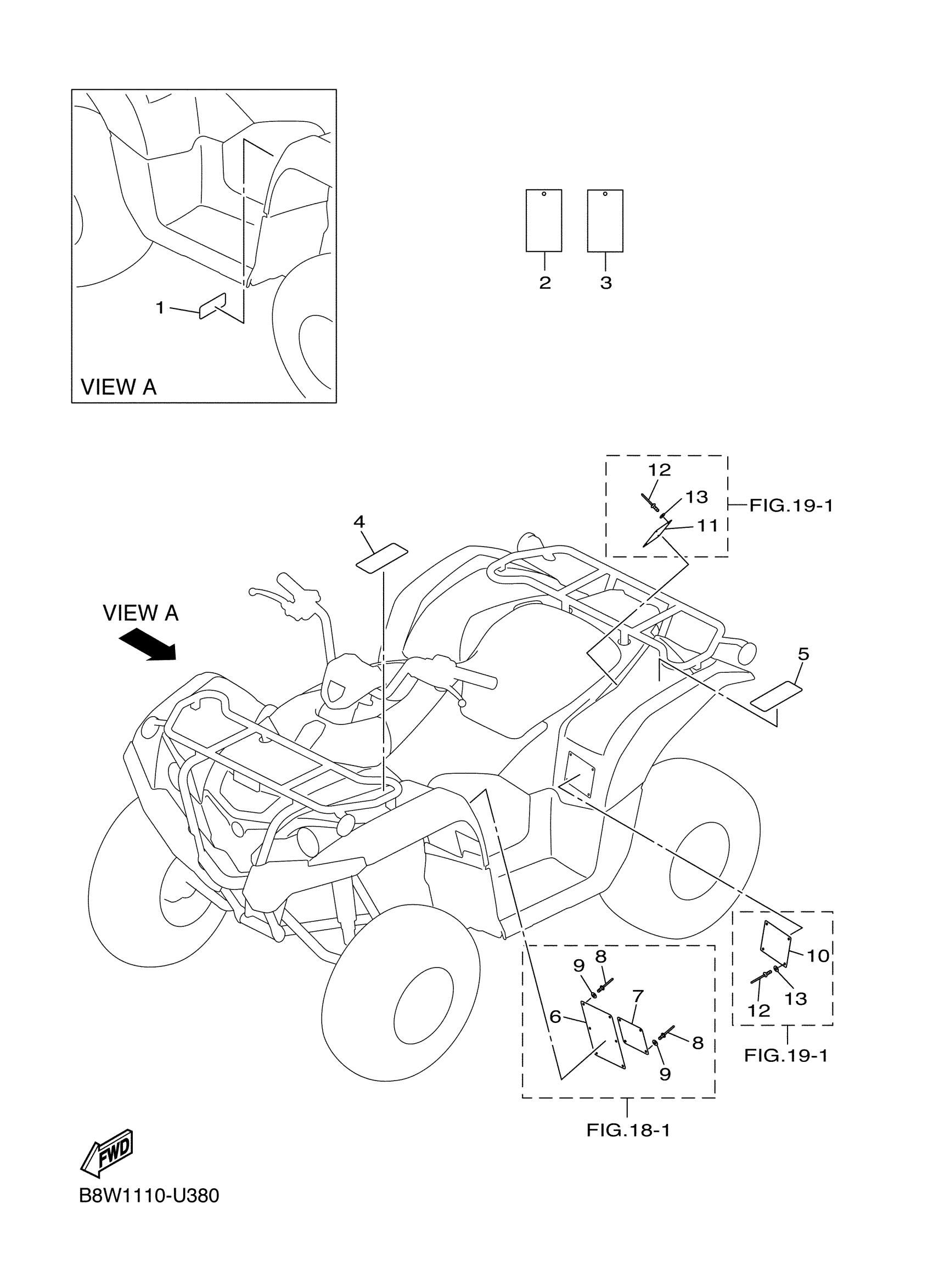

Yamaha YFM09GYXPS (GRIZZLY 90) B8W9 2023 EMBLEM & LABEL 1 Diagram

#

Description

Price

1

PLATE, ANSI SVIA

BD3-F817J-60-00

$12.29

2

TAG, NER

B8W-F818S-00-00

$2.98

3

TAG, WARNING

BD3-F819R-00-00

$6.28

4

LABEL, CAUTION

B8W-F4877-U0-00

$7.14

5

EMBLEM

B8W-F4897-U0-00

$7.14

6

LABEL, WARNING

BD3-F1568-00-00

$40.48

7

LABEL, WARNING AGE

BD3-F816L-00-00

$34.00

8

RIVET

BD3-F1128-00-00

$1.93

9

WASHER, SPECIAL 1

BD3-F1615-10-00

$2.81

10

LABEL, WARNING TIR

B8W-F816M-00-00

$22.63

11

LABEL 5

BD3-F151H-00-00

$16.82

12

RIVET

BD3-F1128-00-00

$1.93

13

WASHER, SPECIAL 1

BD3-F1615-10-00

$2.81
