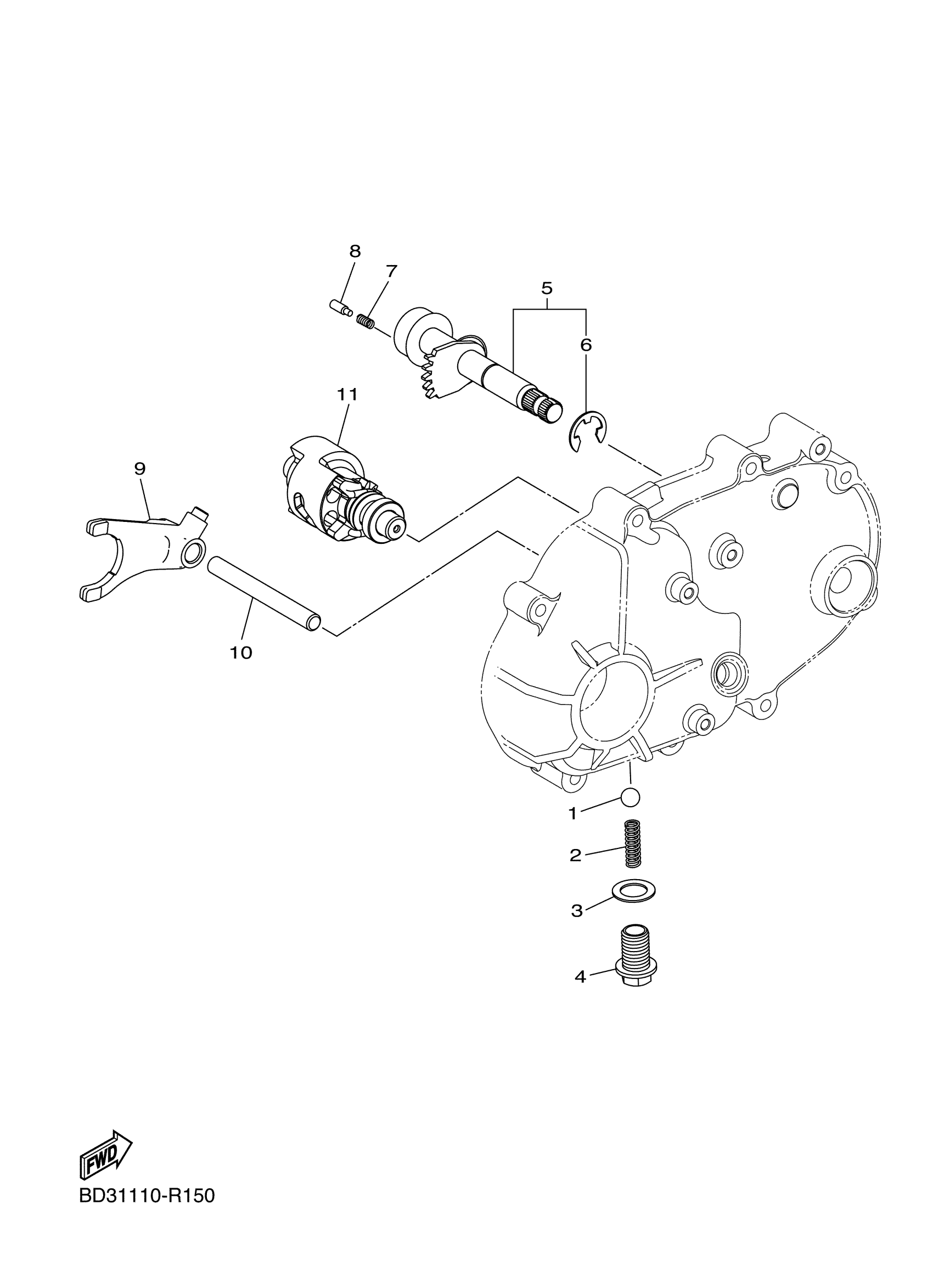

Yamaha YFM09GYXNS (GRIZZLY 90) B8W7 2022 SHIFT CAM & FORK Diagram

#

Description
Price

1

BALL

BD3-E7051-00-00

$2.78

2

SPRING, BALL HOLD

BD3-E7479-00-00

$2.98

3

WASHER,1

BD3-E7058-00-00

$4.66

4

SCREW, FIXED

BD3-E765G-10-00

Unavailable

5

SHIFT SHAFT COMP.

BD3-E8103-10-00

$121.08

6

CIRCLIP 1

BD3-HA906-00-00

Unavailable

7

SPRING

BD3-E8545-00-00

$2.98

8

POINT, NEUTRAL

BD3-E8542-00-00

$5.78

9

FORK, SHIFT 1

BD3-E8511-00-00

$97.78

10

BAR, SHIFT FORK GUIDE 1

BD3-E8531-00-00

$16.22

11

SHIFT CAM ASSY

BD3-E8540-00-00

$258.57
