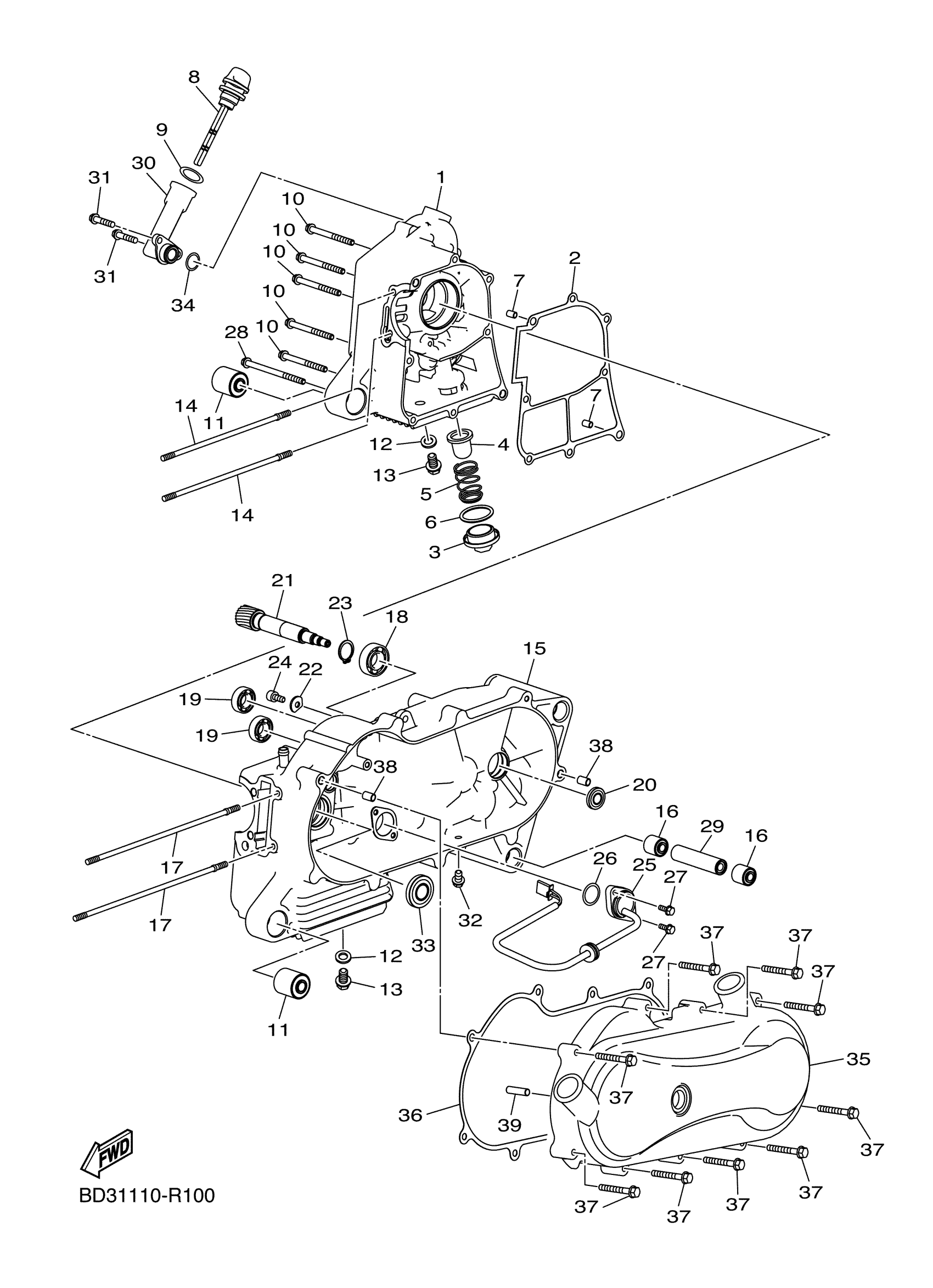

Yamaha YFM09GYXMS (GRIZZLY 90) B8W5 2021 CRANKCASE Diagram
#
1
CRANKCASE 2
BD3-E5121-00-00
Unavailable
4
STRAINER, OIL
BD3-E3411-00-00
Unavailable
8
PLUG, OIL LEVEL
BD3-E5362-00-00
Unavailable
10
BOLT
BD3-H1826-10-00
Unavailable
11
DAMPER
BD3-E4844-00-00
Unavailable
14
BOLT
BD3-G2742-10-00
Unavailable
15
CRANKCASE 1
BD3-E5111-10-00
Unavailable
16
SPACER, DAMPER
BD3-E5328-00-00
Unavailable
17
BOLT
BD3-G3143-10-00
Unavailable
18
BEARING 1
BD3-E1428-00-00
Unavailable
19
BEARING 2
BD3-E1429-00-00
Unavailable
20
OIL SEAL
BD3-E511A-00-00
Unavailable
21
GEAR, PRIMARY DRIVE
BD3-E6111-00-00
Unavailable
22
OIL SEAL
BD3-E511B-10-00
Unavailable
23
CIRCLIP
BD3-E5744-00-00
Unavailable
24
BOLT
BD3-G3886-10-00
Unavailable
25
NEUTRAL SWITCH ASSY
BD3-H2540-10-00
Unavailable
26
O-RING
BD3-E2439-00-00
Unavailable
27
BOLT
BD3-G4581-10-00
Unavailable
28
BOLT
BD3-G5154-10-00
Unavailable
29
SPACER, ENGINE MOUNT
BD3-E5327-10-00
Unavailable
30
PIPE, OIL
BD3-E5112-00-00
Unavailable
31
BOLT
BD3-E2623-10-00
Unavailable
32
BOLT, FLANGE W/WASHER
BD3-G5241-10-00
Unavailable
33
SEAL, CRANKCASE
BD3-E5315-00-00
Unavailable
34
O-RING
BD3-E5114-00-00
Unavailable
35
COVER, CRANKCASE 1
BD3-E5411-10-00
Unavailable
36
GASKET, CRANKCASE
BD3-E5451-10-00
Unavailable
37
BOLT
BD3-G1148-10-00
Unavailable
39
SHAFT 1
BD3-E5521-00-00
Unavailable
