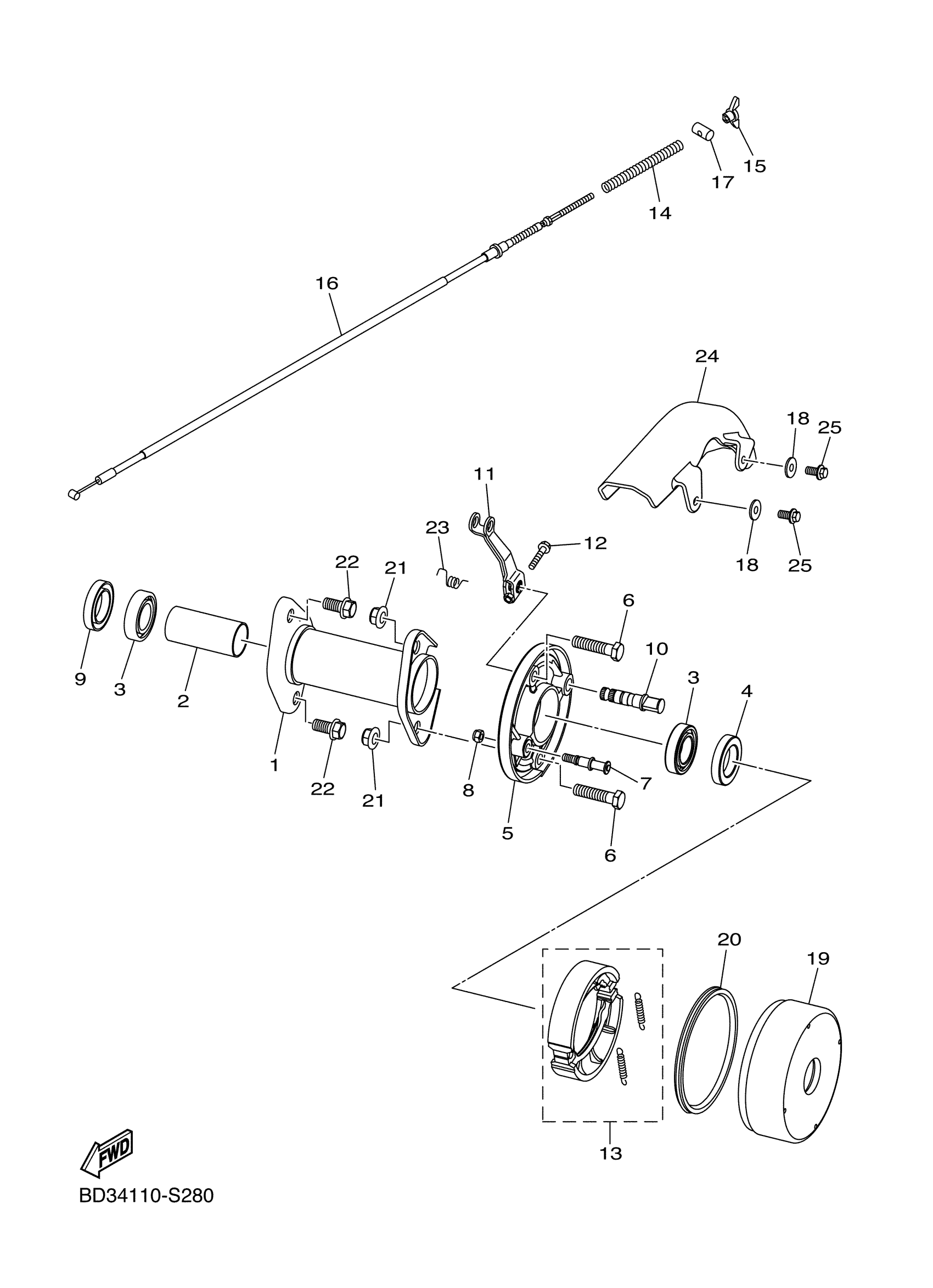

Yamaha YFM09GYXLL (GRIZZLY 90) B8W3 2020 REAR BRAKE Diagram

#

Description
Price

1

HUB, REAR

BD3-F5311-00-00

Unavailable

2

SPACER, BEARING

BD3-F5317-10-00

$37.99

3

BEARING

BD3-F53N4-10-00

Unavailable

4

SEAL, DUST

BD3-F537Y-00-00

$13.99

5

PLATE, BRAKE SHOE

BD3-F5321-00-00

$124.99

6

BOLT

BD3-F7217-10-00

Unavailable

7

SHAFT

BD3-F518E-10-00

$28.99

8

NUT

BD3-F2143-10-00

Unavailable

9

SEAL, HUB DUST

BD3-F5319-00-00

$12.49

10

CAMSHAFT

BD3-F5351-00-00

$36.99

11

LEVER, CAMSHAFT

BD3-F5355-10-00

$32.99

12

BOLT

BD3-F3767-10-00

$2.12

13

BRAKE SHOE SET

BD3-F530K-30-00

$57.99

14

SPRING

BD3-F6304-10-00

$4.82

15

NUT, ADJUSTING

BD3-F6343-10-00

$12.49

16

WIRE, BRAKE 1

BD3-F6341-10-00

Unavailable

17

PIN, CLEVIS

BD3-F7438-10-00

Unavailable

18

WASHER

BD3-F3458-10-00

Unavailable

19

DRUM, BRAKE

BD3-F531E-20-00

Unavailable

20

RING 2

BD3-F5336-00-00

Unavailable

21

NUT

BD3-F4477-10-00

Unavailable

22

BOLT, COWLING

BD3-F8374-10-00

Unavailable

23

SPRING, RETURN

BD3-F5333-10-00

Unavailable

24

CASE, CHAIN 2

BD3-F2312-00-00

Unavailable

25

BOLT, FOOTREST

BD3-F7416-10-00

Unavailable
