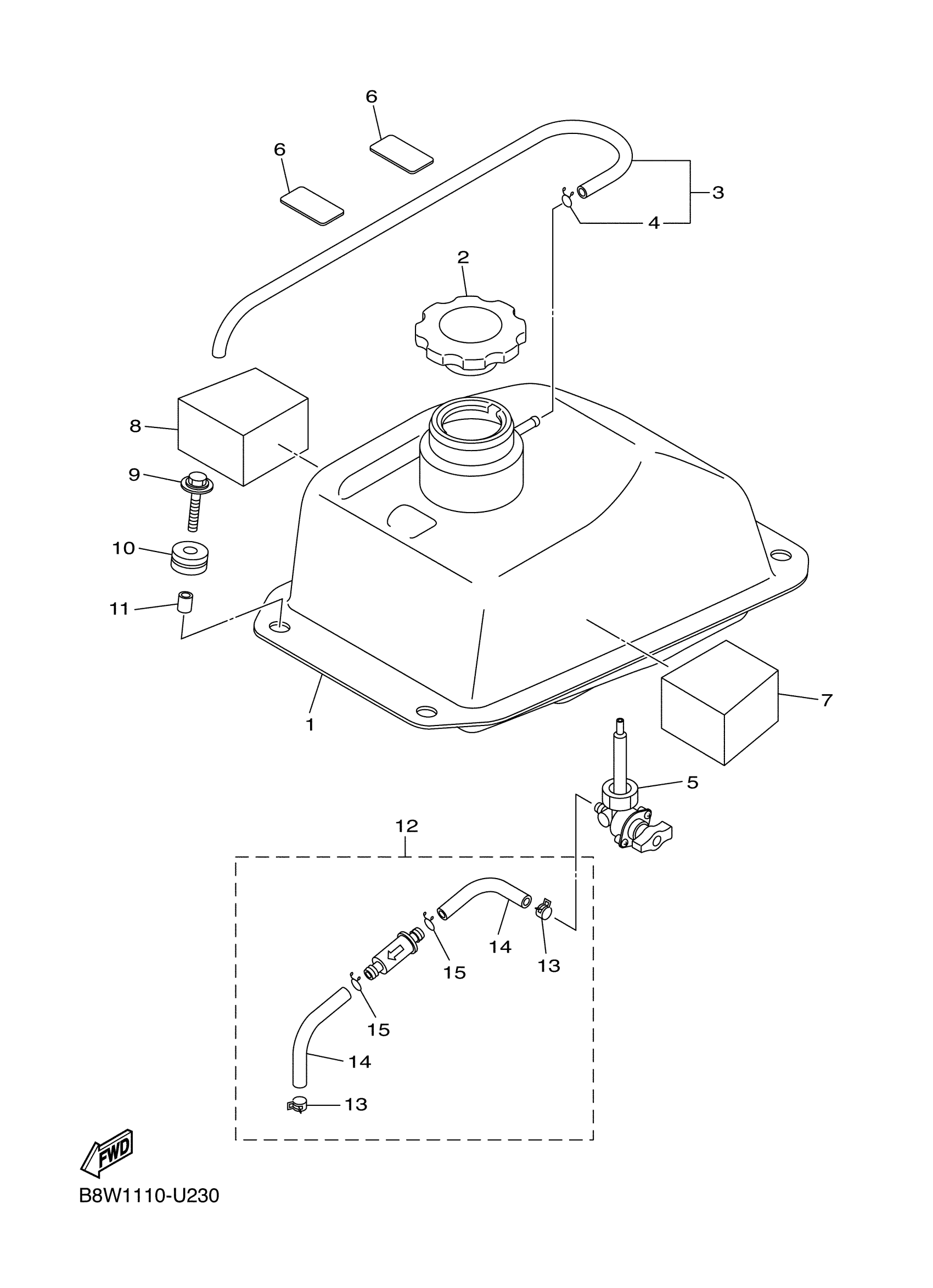

Yamaha YFM09GYXLL (GRIZZLY 90) B8W3 2020 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BD3-F4110-10-00

$578.99

2

CAP ASSY

BD3-F4610-10-00

$83.99

3

HOSE ASSY

BD3-F318J-10-00

Unavailable

4

CLIP

BD3-F3447-10-00

$3.45

5

FUEL COCK ASSY 1

BD3-F4500-00-00

$146.99

6

TAPE, 1

BD3-F1566-00-00

$5.60

7

DAMPER, LOCATING 1

B8W-F4181-00-00

Unavailable

8

DAMPER, LOCATING 2

B8W-F4182-00-00

Unavailable

9

BOLT

BD3-F3492-10-00

$8.49

10

GROMMET

BD3-F4339-00-00

Unavailable

11

COLLAR

BD3-F412G-10-00

$3.98

12

FILTER ASSY

BD3-F4560-10-00

$69.99

13

CLAMP, FUEL PIPE 1

BD3-F4366-00-00

$3.45

14

TUBE

BD3-F4864-00-00

$18.99

15

CLIP

BD3-F411M-10-00

$2.34
