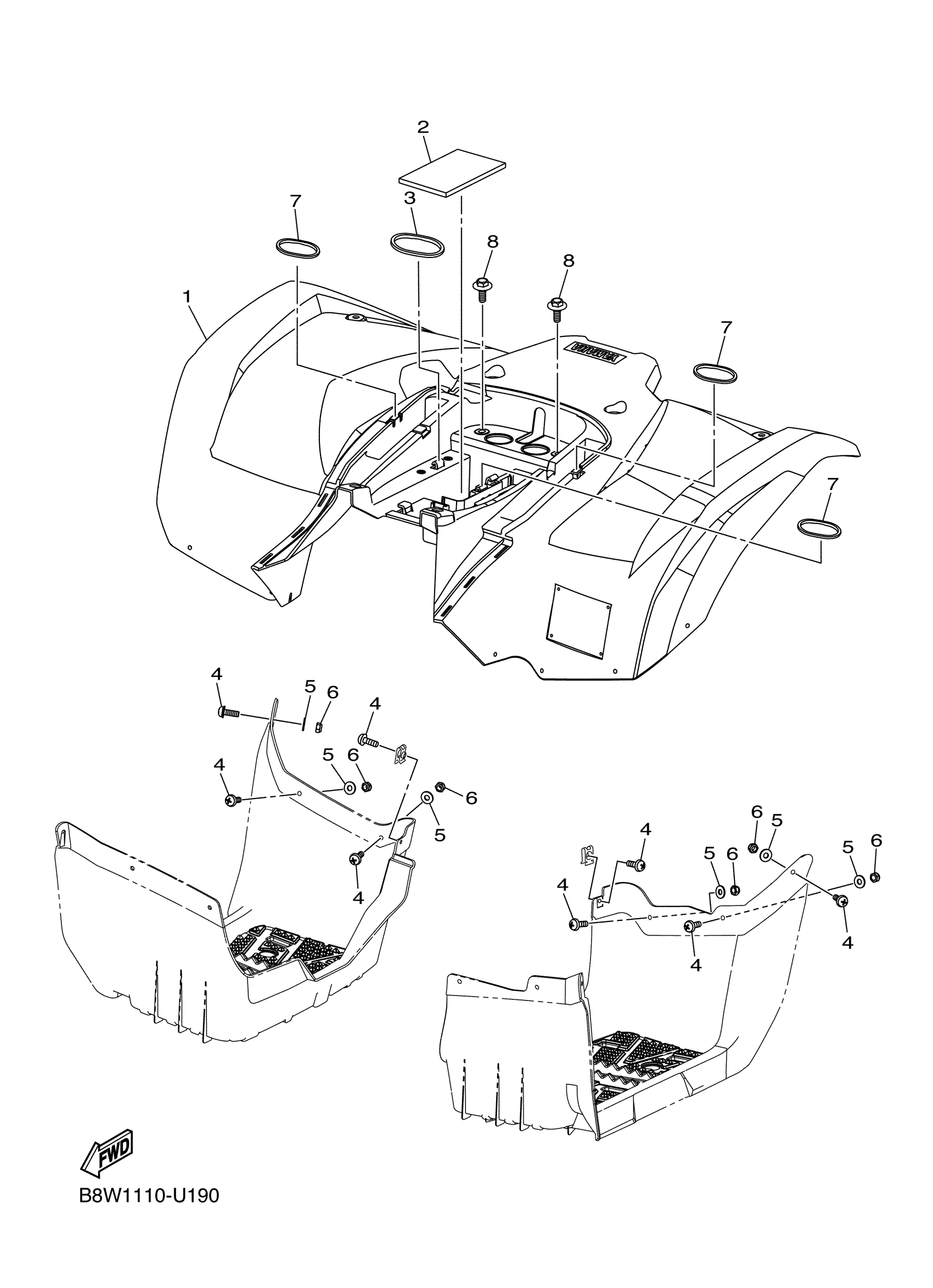

Yamaha YFM09GYXKL (GRIZZLY 90) B8W1 2019 REAR FENDER Diagram

#

Description

Price

1

REAR FENDER ASSY

B8W-F1600-00-00

$732.99

2

SEAT, BATTERY

BD3-H2122-00-00

$1.56

3

BAND, BATTERY

BD3-H2131-00-00

$5.86

4

SCREW 4

BW4-F11C8-00-00

$6.58

5

WASHER

BW4-F2149-00-00

$1.60

6

NUT 3

BW4-F4148-00-00

$1.64

7

BAND, TOOL

BD3-F1376-00-00

$3.56

8

BOLT 2

BD3-F1632-10-00

$2.89
