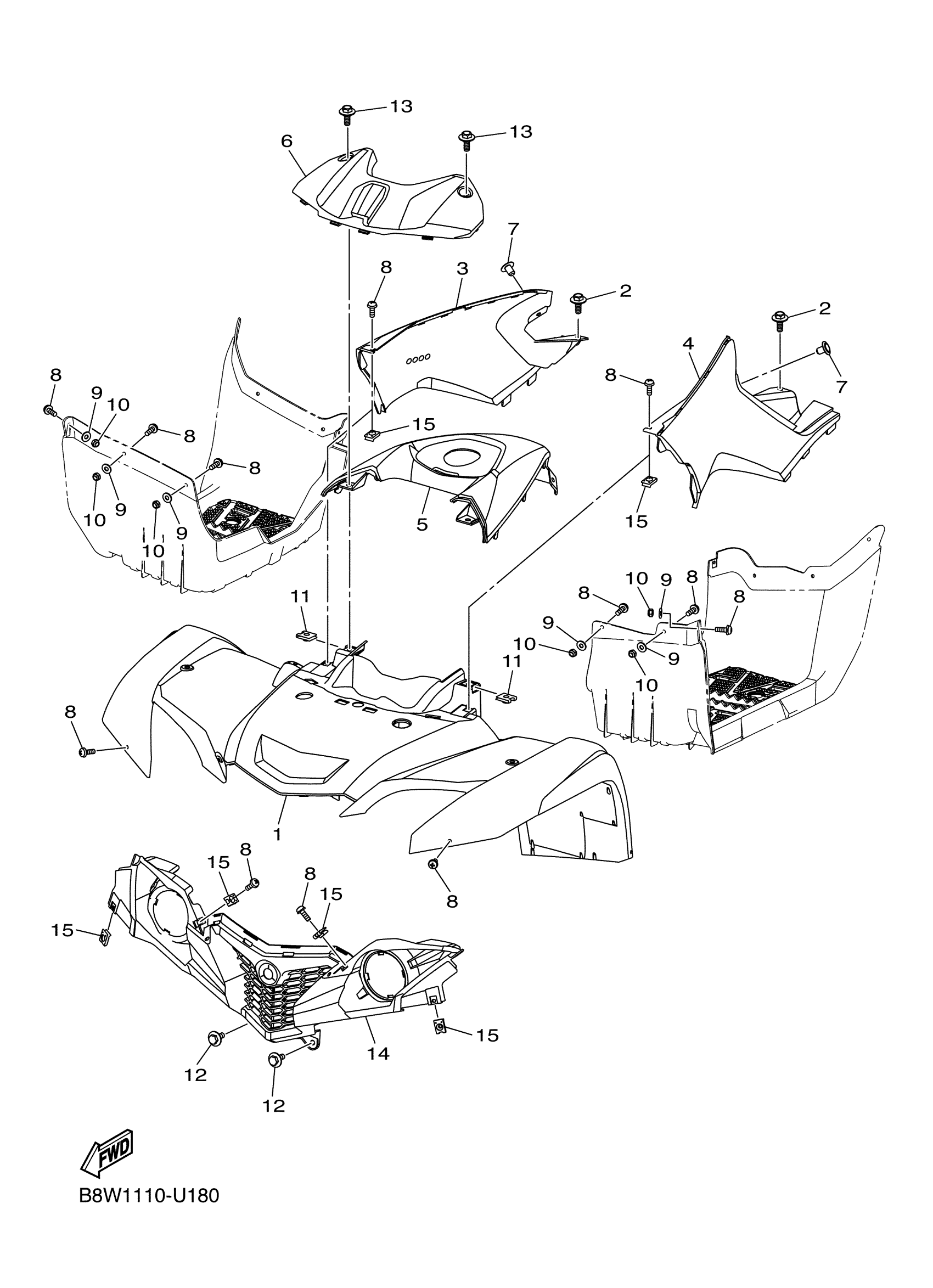

Yamaha YFM09GYXKL (GRIZZLY 90) B8W1 2019 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

B8W-F1500-00-00

$516.99

2

BOLT

BD3-F1738-00-00

$2.12

3

COVER, SIDE 2

B8W-F1721-00-00

$146.09

4

COVER, SIDE 1

B8W-F1711-00-00

$146.09

5

COVER, TOP

B8W-F171A-00-00

$77.06

6

FENDER, FRONT 2

B8W-F1556-00-00

$65.80

7

RIVET

BD3-F1728-00-00

Unavailable

8

SCREW 4

BW4-F11C8-00-00

$6.58

9

WASHER

BW4-F2149-00-00

$1.60

10

NUT 3

BW4-F4148-00-00

$1.64

11

NUT

BD3-F4149-10-00

$4.81

12

BOLT 2

BD3-F1632-10-00

$2.89

13

BOLT 2

BD3-F3356-10-00

$4.81

14

GRILLE, FRONT

B8W-F8309-00-00

Unavailable

15

NUT SPRING 1

BD3-E261D-10-00

Unavailable
