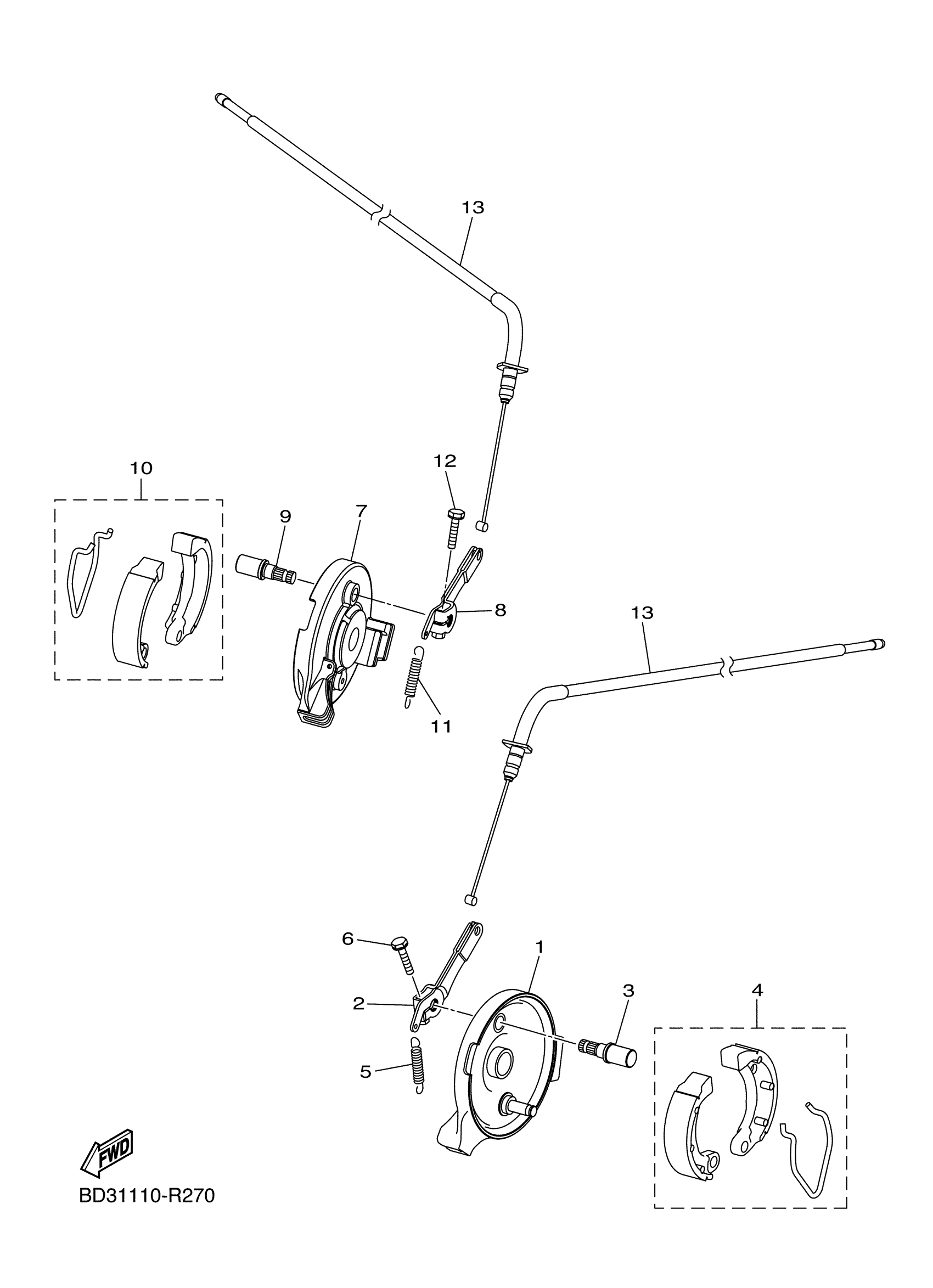

Yamaha YFM09GYXKL (GRIZZLY 90) B8W1 2019 FRONT BRAKE Diagram

#

Description

Price

1

PLATE, BRAKE SHOE

BD3-F5121-21-00

$129.18

2

LEVER, CAMSHAFT 1

BD3-F5155-20-00

$33.03

3

CAMSHAFT

BD3-F5151-20-00

$29.77

4

BRAKE SHOE COMP.

BD3-F510L-40-00

$33.34

5

SPRING, RETURN

BD3-F5143-10-00

$3.93

6

BOLT 1

BD3-F2241-10-00

$2.98

7

PLATE, BRAKE SHOE 2

BD3-F5169-20-00

$189.85

8

LEVER, CAMSHAFT 2

BD3-F5156-20-00

$33.31

9

CAMSHAFT

BD3-F5151-20-00

$29.77

10

BRAKE SHOE COMP.

BD3-F510L-40-00

$33.34

11

SPRING, RETURN

BD3-F5143-10-00

$3.93

12

BOLT 1

BD3-F2241-10-00

$2.98

13

CABLE, BRAKE

B8W-F6350-00-00

$34.72
