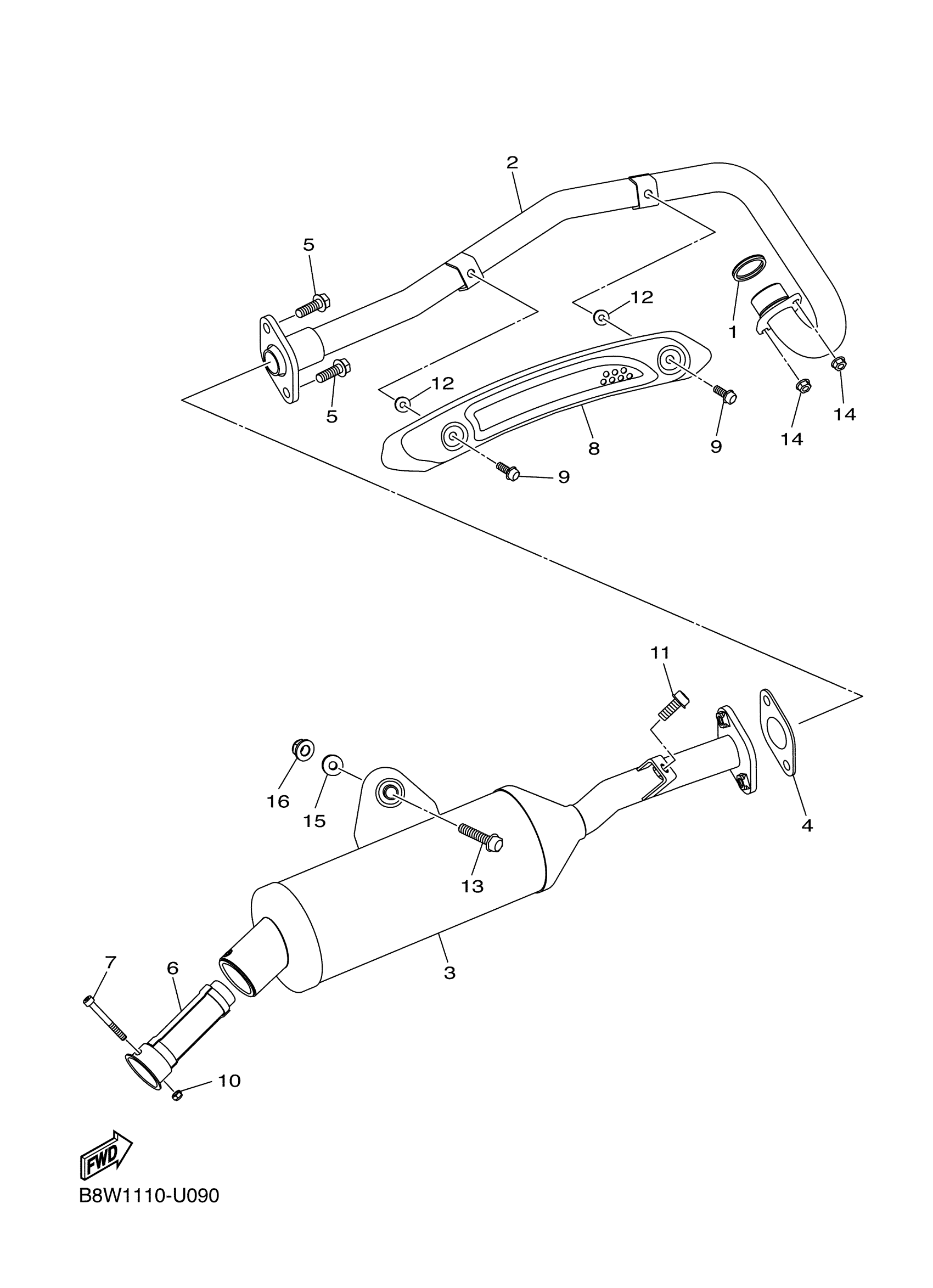

Yamaha YFM09GYXKL (GRIZZLY 90) B8W1 2019 EXHAUST Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

BD3-E4613-00-00

Unavailable

2

PIPE, EXHAUST 1

BD3-E4611-00-00

$222.26

3

MUFFLER 1

BD3-E4711-00-00

$458.29

4

GASKET, MUFFLER

BD3-E4714-00-00

$20.11

5

BOLT

BD3-E5768-00-00

$4.26

6

SPARK ARRESTER ASSY

BD3-E4780-00-00

$124.52

7

BOLT 2

BD3-E3574-00-00

$5.18

8

PROTECTOR, EXHAUST PIPE

BD3-E4628-00-00

$69.08

9

BOLT, HEX W/WASHER

BD3-E6194-00-00

Unavailable

10

NUT

BD3-E4358-00-00

$11.45

11

BOLT

BD3-F3876-10-00

$3.56

12

WASHER

BD3-E4617-00-00

$3.59

13

BOLT

BD3-E6777-10-00

Unavailable

14

NUT

BD3-F1494-10-00

$2.04

15

WASHER

BD3-E2289-10-00

$1.59

16

NUT, REAR FENDER

BD3-F1635-10-00

Unavailable
