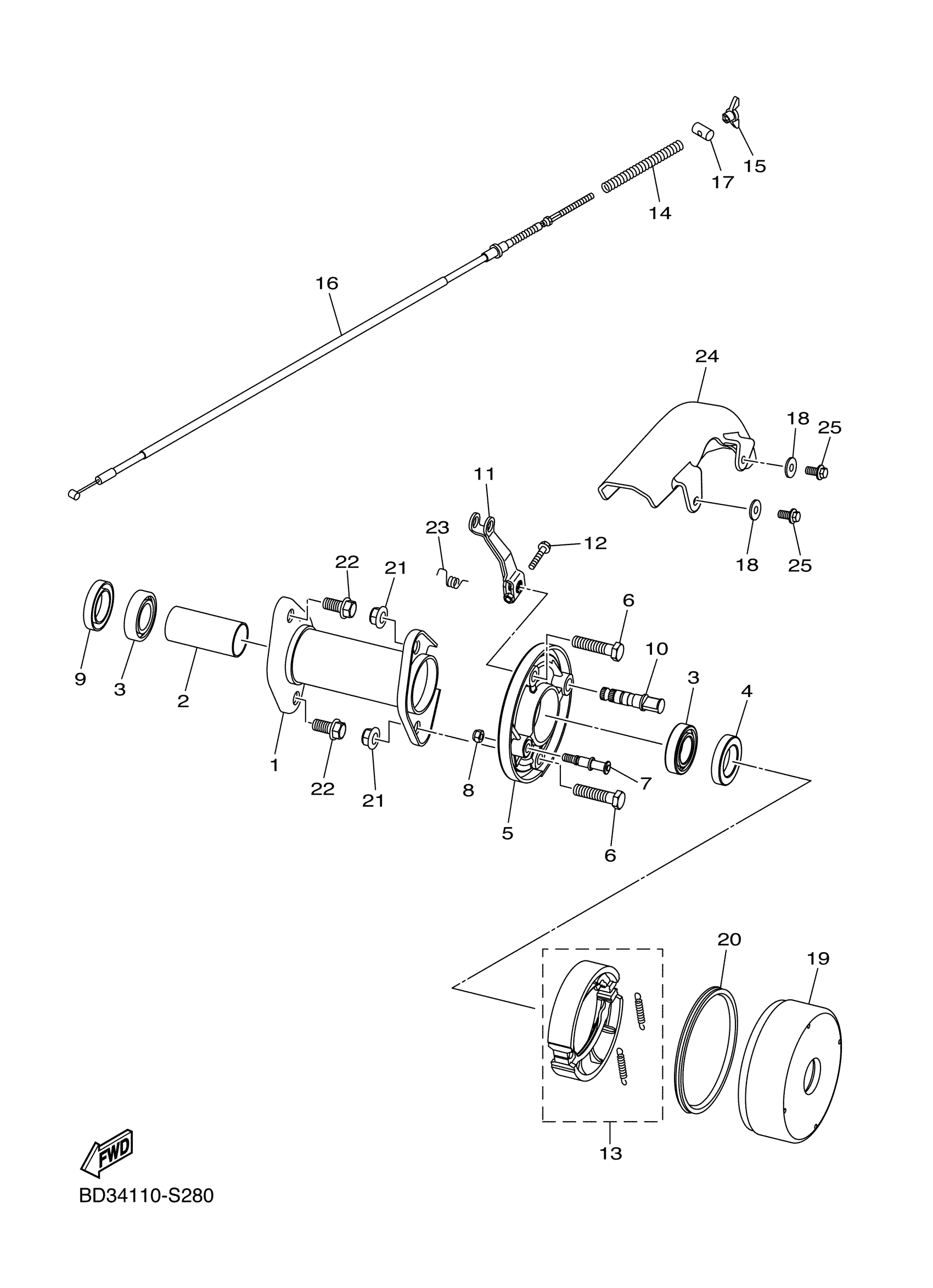

Yamaha YFM01RYXTL (RAPTOR 110) BYS7 2026 REAR BRAKE Diagram

#

Description
Price

1

HUB, REAR

BD3-F5311-00-00

$236.43

2

SPACER, BEARING

BD3-F5317-10-00

$33.32

3

BEARING

BD3-F53N4-10-00

$44.26

4

SEAL, DUST

BD3-F537Y-00-00

$11.06

5

PLATE, BRAKE SHOE

BD3-F5321-00-00

$95.20

6

BOLT

BD3-F7217-10-00

$12.85

7

SHAFT

BD3-F518E-10-00

$19.91

8

NUT

BD3-F2143-10-00

$1.40

9

SEAL, HUB DUST

BD3-F5319-00-00

$10.40

10

CAMSHAFT

BD3-F5351-00-00

$69.99

11

LEVER, CAMSHAFT

BD3-F5355-10-00

$28.03

12

BOLT

BD3-F3767-10-00

$2.03

13

BRAKE SHOE SET

BD3-F530K-30-00

$55.36

14

SPRING

BD3-F6304-10-00

$4.42

15

NUT, ADJUSTING

BD3-F6343-10-00

$10.68

16

WIRE, BRAKE 1

BD3-F6341-10-00

$52.88

17

PIN, CLEVIS

BD3-F7438-10-00

$6.28

18

WASHER

BD3-F3458-10-00

$2.98

19

DRUM, BRAKE

BD3-F531E-20-00

$347.99

20

RING 2

BD3-F5336-00-00

$16.62

21

NUT

BD3-F4477-10-00

$4.11

22

BOLT, COWLING

BD3-F8374-10-00

$8.26

23

SPRING, RETURN

BD3-F5333-10-00

$5.11

24

CASE, CHAIN 2

BD3-F2312-00-00

$54.64

25

BOLT, FOOTREST

BD3-F7416-10-00

$7.02
