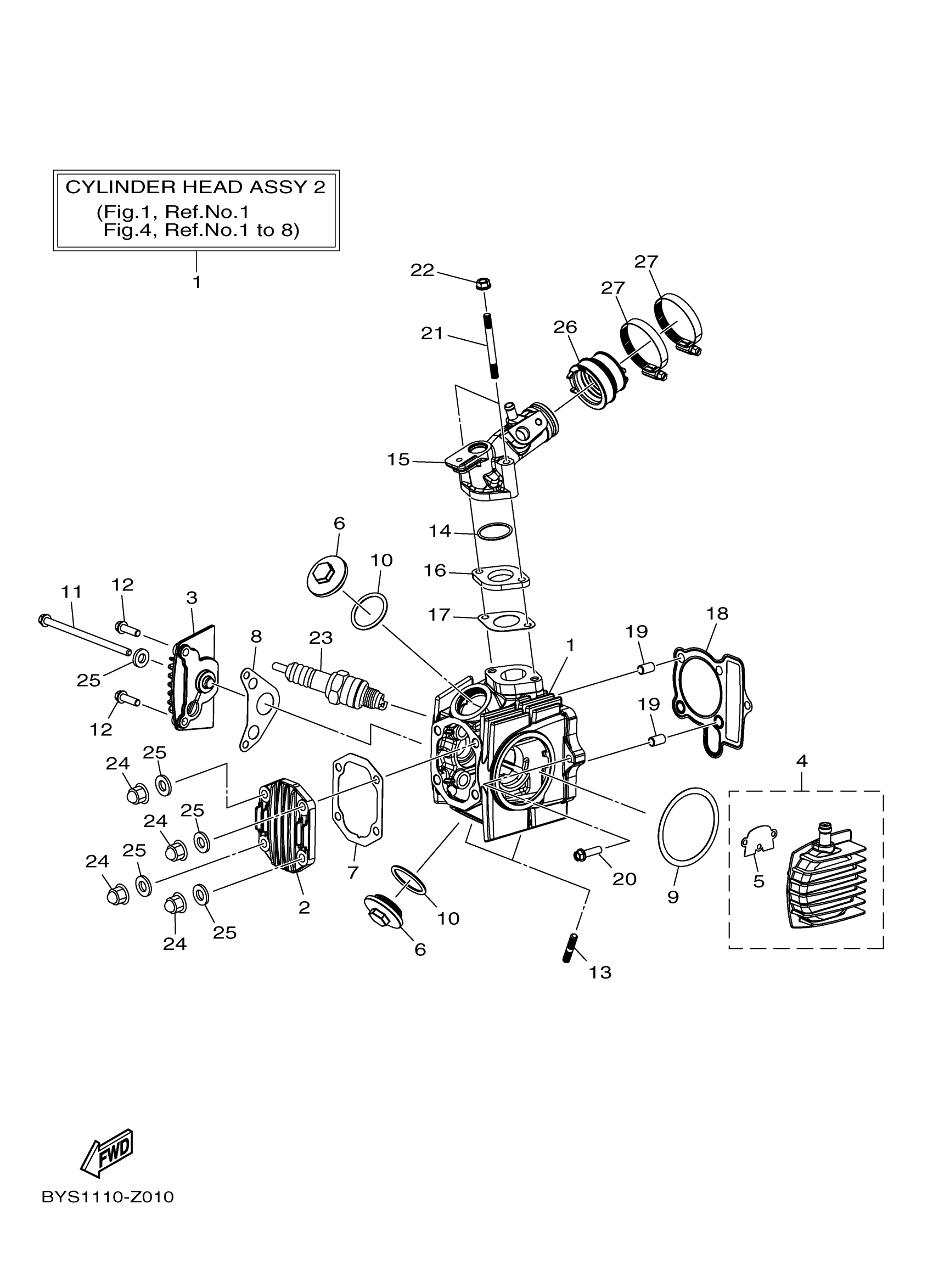

Yamaha YFM01RYXTL (RAPTOR 110) BYS7 2026 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY 2

BYS-E1103-10-00

$670.99

2

COVER, CYLINDER HEAD 2

BD3-E1192-00-00

$25.02

3

COVER, CYLINDER HEAD 3

BYS-E112E-00-00

$43.15

4

COVER, CYLINDER HEAD 1

BYS-E1191-10-00

$52.99

5

GASKET

BD3-E1195-10-00

$6.86

6

COVER, CYLINDER HEAD SIDE 2

BD3-E1186-00-00

$6.20

7

GASKET, HEAD COVER 1

BD3-E1193-20-00

$4.31

8

GASKET, HEAD COVER 2

BD3-E1194-20-00

$4.31

9

GASKET, BREATHER COVER

BD3-E1169-10-00

$4.06

10

O-RING

BD3-E119B-00-00

$9.10

11

BOLT

BD3-E2615-10-00

$4.42

12

BOLT

BD3-E2623-10-00

$2.20

13

BOLT, STUD

BYS-E1179-10-00

$7.77

14

O-RING

BYS-E119A-00-00

$4.98

15

MANIFOLD

BYS-E3585-00-00

$166.91

16

INSULATOR

BD3-E4271-00-00

$16.22

17

GASKET, MANIFOLD

BD3-E3556-00-00

$4.42

18

GASKET, CYLINDER HEAD 1

BYS-E1181-00-00

$18.51

19

PIN, DOWEL

BD3-E3516-00-00

$3.62

20

BOLT

BD3-E2157-10-00

$2.20

21

BOLT, STUD 1

BYS-E1391-00-00

$12.38

22

NUT

BD3-F1494-10-00

$2.13

23

CR6HS-A NGK SPLUG 4PK

CR6-HSA00-00-00

$5.09

24

NUT

BD3-E4439-10-00

$6.28

25

WASHER

BD3-E3318-00-00

$5.15

26

JOINT, CARBURETOR 1

BYS-E3586-00-00

$33.26

27

CLAMP, HOSE 1

BYS-E1387-00-00

$14.49
