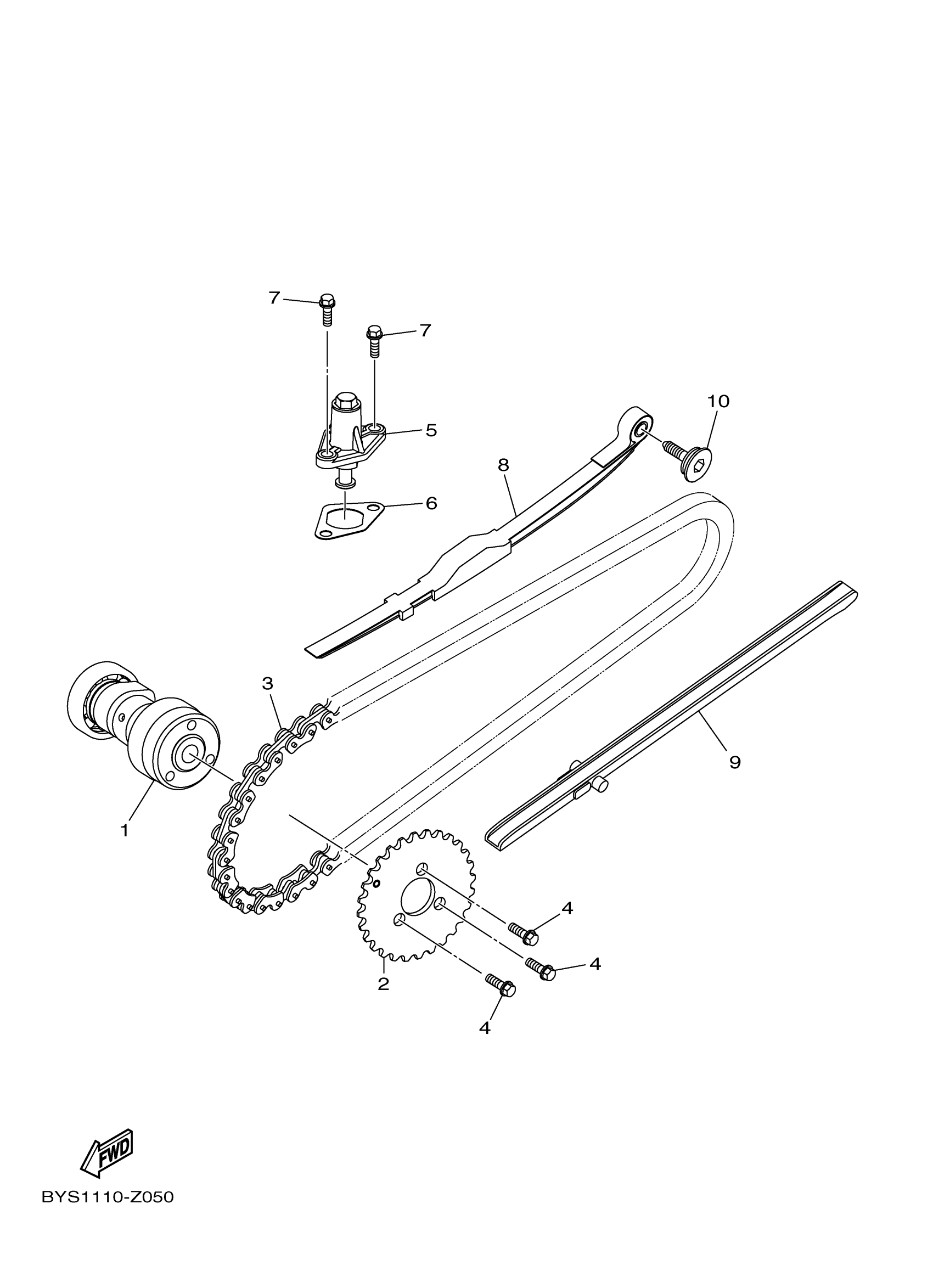

Yamaha YFM01RYXTL (RAPTOR 110) BYS7 2026 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

BYS-E2170-00-00

$150.99

2

SPROCKET, CAM CHAIN

BD3-E2176-00-00

$12.14

3

CHAIN ASSY

BD3-E2190-00-00

$35.66

4

SPROCKET, WHEEL

BD3-E1458-10-00

$3.35

5

TENSIONER ASSY, CAM CHAIN

BD3-E2210-00-00

$79.37

6

GASKET, TENSIONER CASE

BD3-E2213-10-00

$12.60

7

BOLT 1

BD3-E3573-10-00

$2.42

8

GUIDE, STOPPER 2

BD3-E2241-00-00

$96.83

9

GUIDE, STOPPER 1

BD3-E2231-00-00

$26.38

10

BOLT 2

BD3-E22A1-10-00

$13.62
