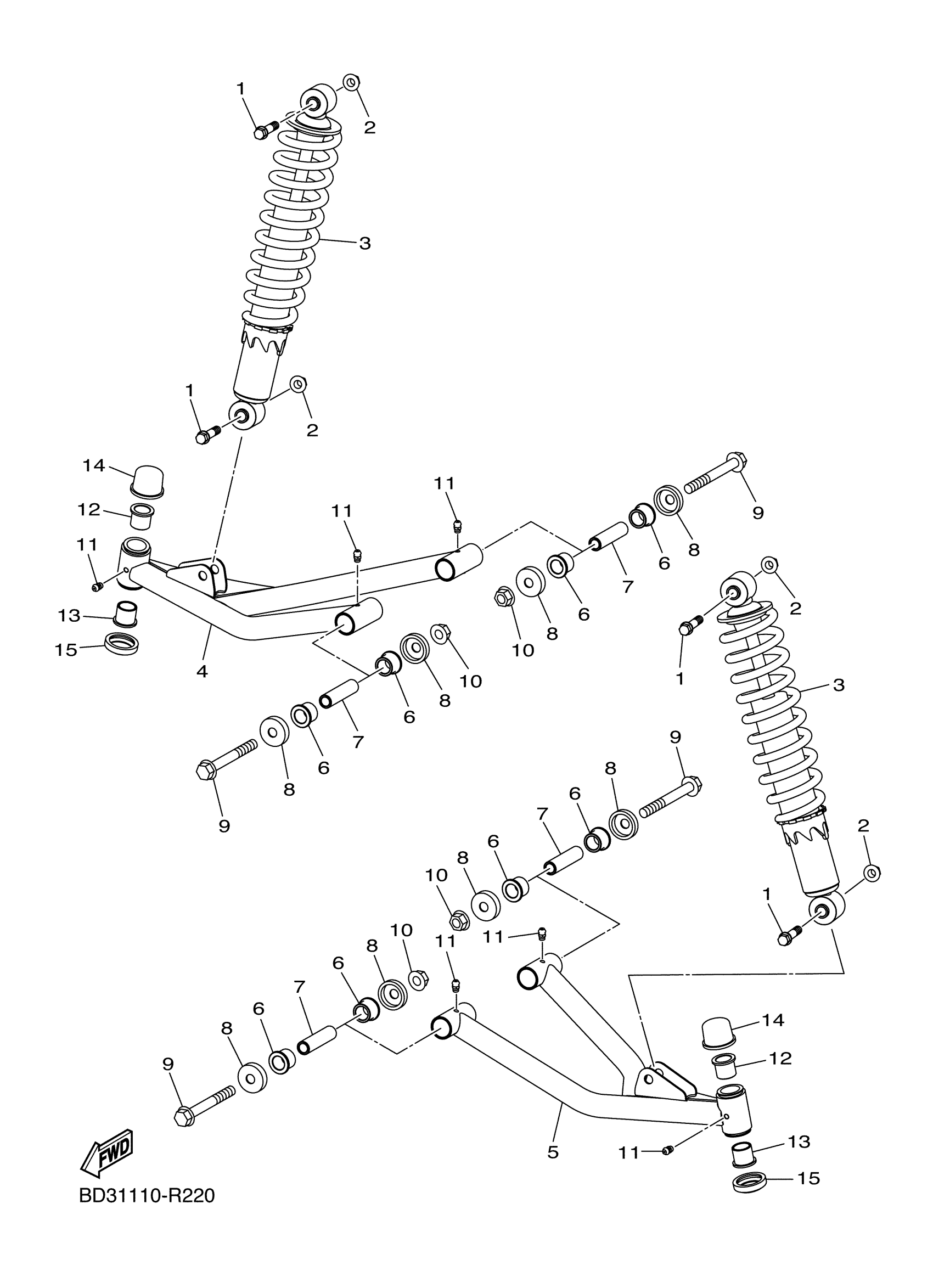

Yamaha YFM01RYXSL (RAPTOR 110) BYS4 2025 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

BOLT

BD3-F4834-10-00

$8.49

2

NUT 2

BD3-F3834-10-00

$3.35

3

SHOCK ABSORBER ASSY

BD3-F3350-10-00

$209.99

4

FRONT LOWER ARM COMP. (RIGHT)

BD3-F3580-10-00

Unavailable

5

FRONT LOWER ARM COMP. (LEFT)

BD3-F3570-10-00

Unavailable

6

BUSH

BYS-F3526-00-00

Unavailable

7

COLLAR 2

BD3-F3364-00-00

$18.99

8

COVER, THRUST 1

BD3-F3517-00-00

$10.49

9

BOLT, MAIN STAND

BD3-F7117-10-00

$13.99

10

NUT 2

BD3-F3834-10-00

$3.35

11

NIPPLE

BD3-F135J-10-00

$5.60

12

BUSH 1

BD3-F639L-00-00

$8.49

13

BUSH 2

BD3-F639M-00-00

$5.60

14

COVER, THRUST 2

BD3-F2129-00-00

Unavailable

15

SEAL, DUST 1

BD3-F3527-00-00

$5.60
