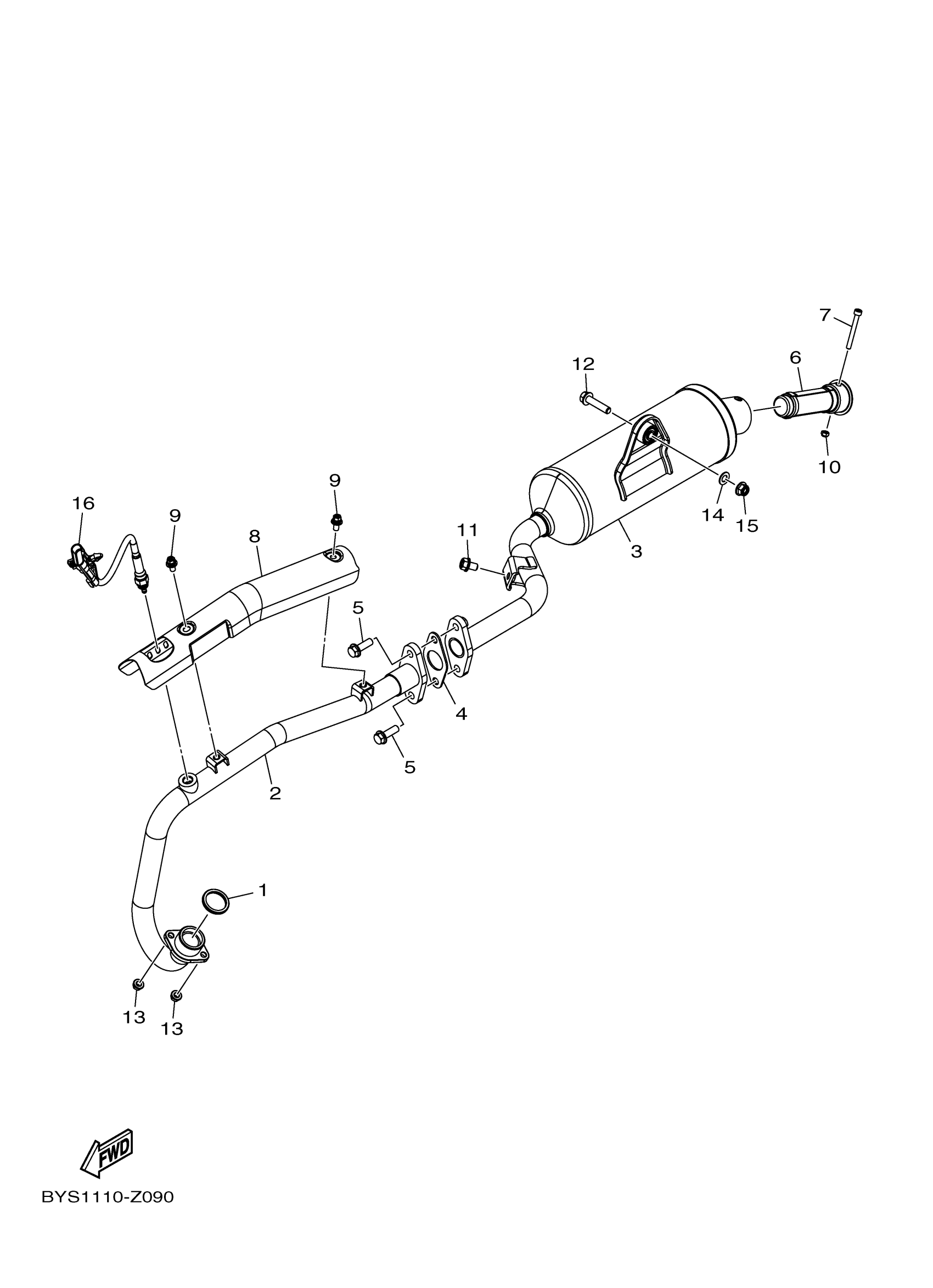

Yamaha YFM01RYXSL (RAPTOR 110) BYS4 2025 EXHAUST Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

BD3-E4613-00-00

Unavailable

2

PIPE, EXHAUST 1

BYS-E4611-10-00

$232.99

3

MUFFLER 1

BYS-E4711-00-00

$539.99

4

GASKET, MUFFLER

BD3-E4714-00-00

$25.99

5

BOLT

BD3-E5768-00-00

$4.72

6

SPARK ARRESTER ASSY

BD3-E4780-00-00

$132.99

7

BOLT 2

BD3-E3574-00-00

$7.49

8

PROTECTOR, EXHAUST PIPE

BYS-E4628-00-00

$115.99

9

BOLT, HEX W/WASHER

BD3-E6194-00-00

Unavailable

10

NUT

BD3-E4358-00-00

$13.49

11

BOLT

BD3-F3876-10-00

$4.29

12

BOLT

BD3-E6777-10-00

Unavailable

13

NUT, REAR FENDER

BD3-F1635-10-00

$5.60

14

WASHER

BD3-E2289-10-00

$1.59

15

NUT, REAR FENDER

BD3-F1635-10-00

$5.60

16

SENSOR, OXYGEN

BYS-H592A-00-00

Unavailable
