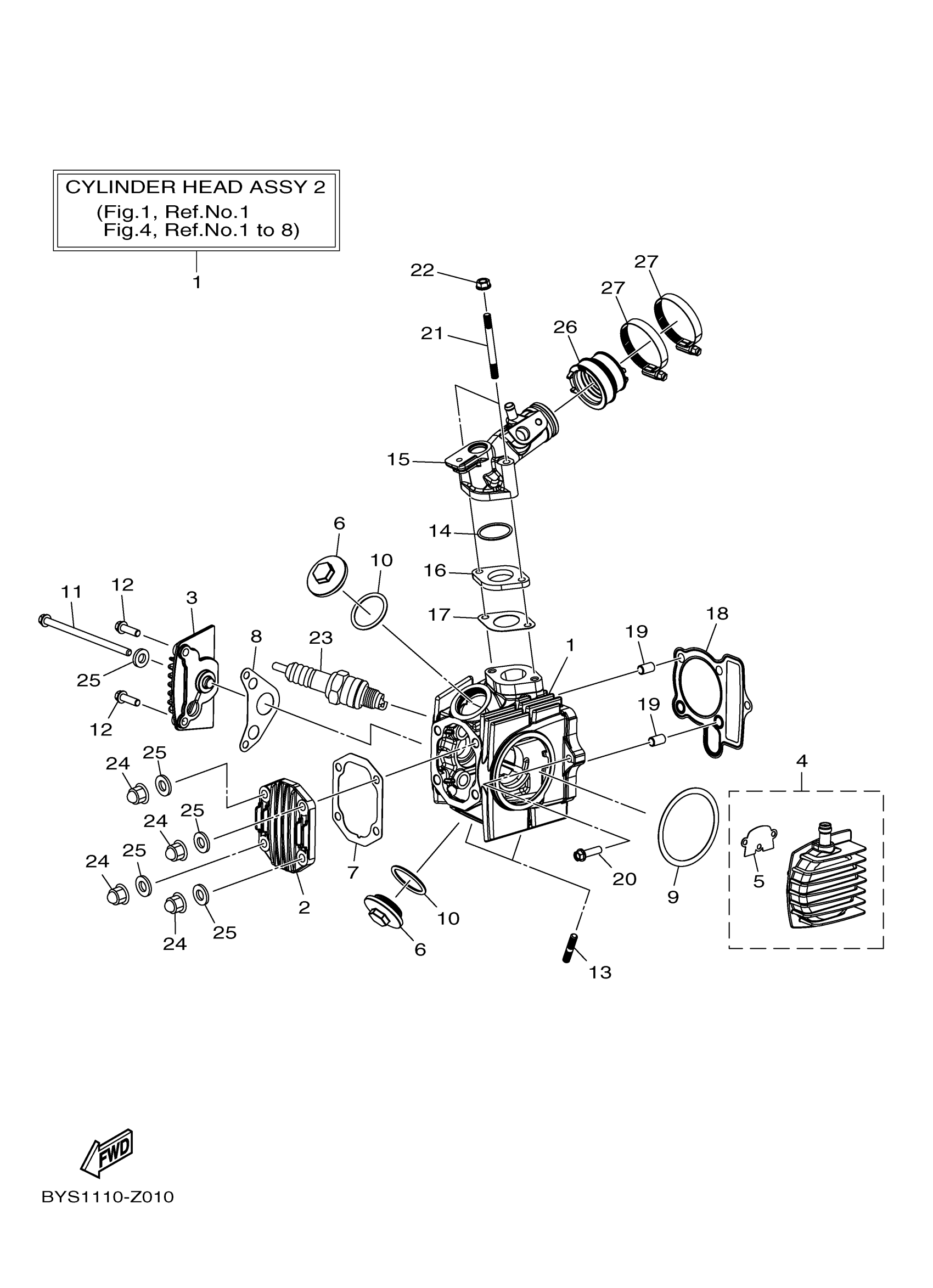

Yamaha YFM01RYXSL (RAPTOR 110) BYS4 2025 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY 2

BYS-E1103-10-00

$660.99

2

COVER, CYLINDER HEAD 2

BD3-E1192-00-00

$24.64

3

COVER, CYLINDER HEAD 3

BYS-E112E-00-00

$42.50

4

COVER, CYLINDER HEAD 1

BYS-E1191-10-00

Unavailable

5

GASKET

BD3-E1195-10-00

$6.76

6

COVER, CYLINDER HEAD SIDE 2

BD3-E1186-00-00

$6.91

7

GASKET, HEAD COVER 1

BD3-E1193-20-00

$4.01

8

GASKET, HEAD COVER 2

BD3-E1194-20-00

Unavailable

9

GASKET, BREATHER COVER

BD3-E1169-10-00

$4.00

10

O-RING

BD3-E119B-00-00

$8.51

11

BOLT

BD3-E2615-10-00

$4.35

12

BOLT

BD3-E2623-10-00

$2.04

13

BOLT, STUD

BYS-E1179-10-00

$7.65

14

O-RING

BYS-E119A-00-00

$4.91

15

MANIFOLD

BYS-E3585-00-00

$164.38

16

INSULATOR

BD3-E4271-00-00

Unavailable

17

GASKET, MANIFOLD

BD3-E3556-00-00

Unavailable

18

GASKET, CYLINDER HEAD 1

BYS-E1181-00-00

Unavailable

19

PIN, DOWEL

BD3-E3516-00-00

Unavailable

20

BOLT

BD3-E2157-10-00

Unavailable

21

BOLT, STUD 1

BYS-E1391-00-00

Unavailable

22

NUT

BD3-F1494-10-00

Unavailable

23

CR6HS-A NGK SPLUG 4PK

CR6-HSA00-00-00

$5.02

24

NUT

BD3-E4439-10-00

Unavailable

25

WASHER

BD3-E3318-00-00

Unavailable

26

JOINT, CARBURETOR 1

BYS-E3586-00-00

Unavailable

27

CLAMP, HOSE 1

BYS-E1387-00-00

Unavailable
