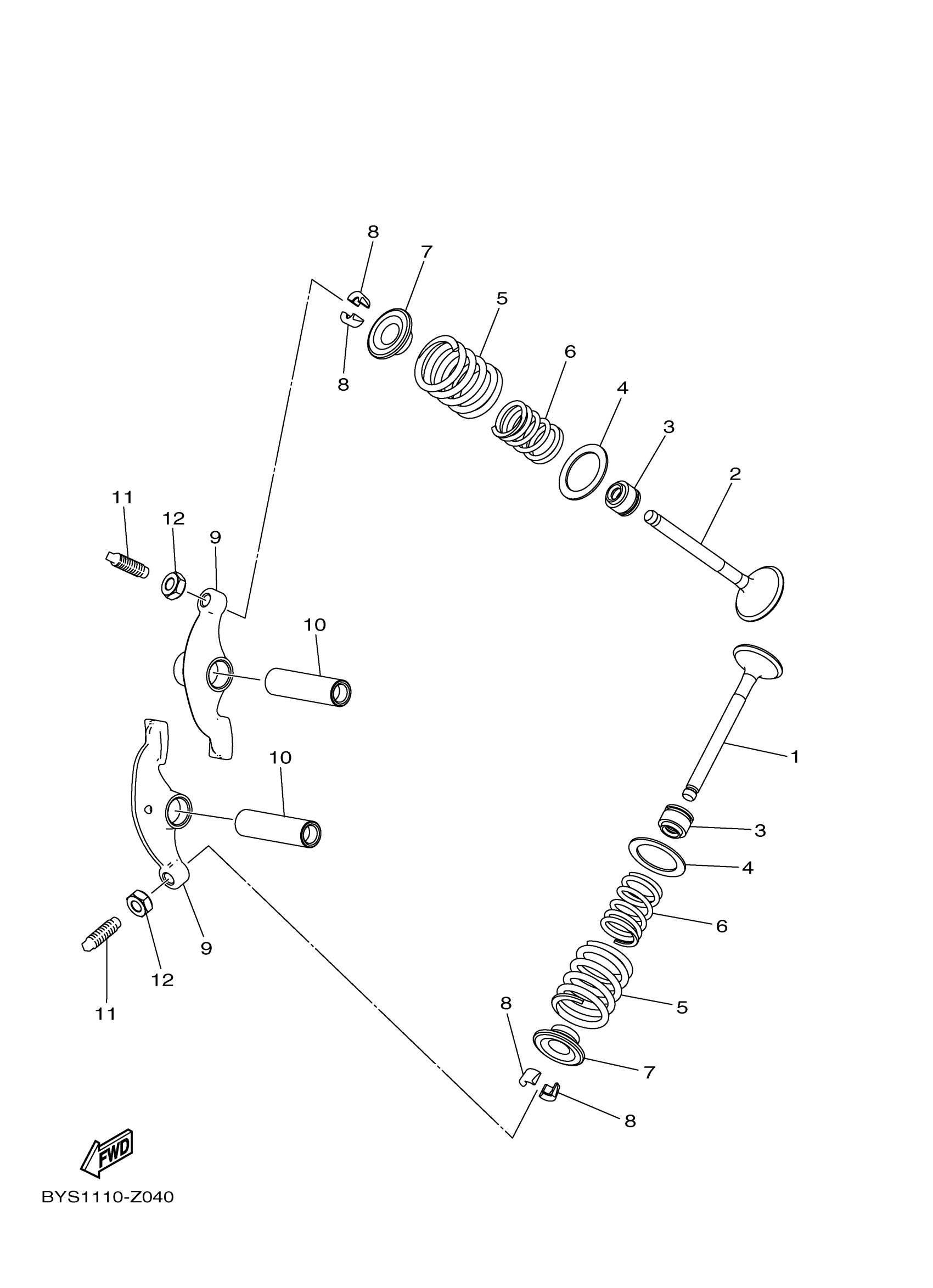

Yamaha YFM01RYXRL (RAPTOR 110) BYS1 2024 VALVE Diagram

VALVE, EXHAUST

BD3-E2121-00-00

$55.99

VALVE, INTAKE

BD3-E2111-00-00

Unavailable

SEAL, VALVE STEM

BD3-E2119-00-00

$7.49

SEAT, VALVE SPRING

BD3-E2116-00-00

$2.22

SPRING, VALVE 1

BD3-E2113-00-00

$10.49

SPRING, VALVE 2

BD3-E2114-00-00

$8.49

RETAINER, VALVE SPRING

BD3-E2117-00-00

$12.49

LOCK, VALVE SPRING RETAINER

BD3-E2118-00-00

$3.35

ARM, VALVE ROCKER

BD3-E2151-00-00

$29.99

SHAFT, ROCKER

BD3-E2146-00-00

$7.49

SCREW, VALVE ADJUSTING

BD3-E2159-00-00

Unavailable

NUT, LOCK

BD3-E2158-00-00

Unavailable
