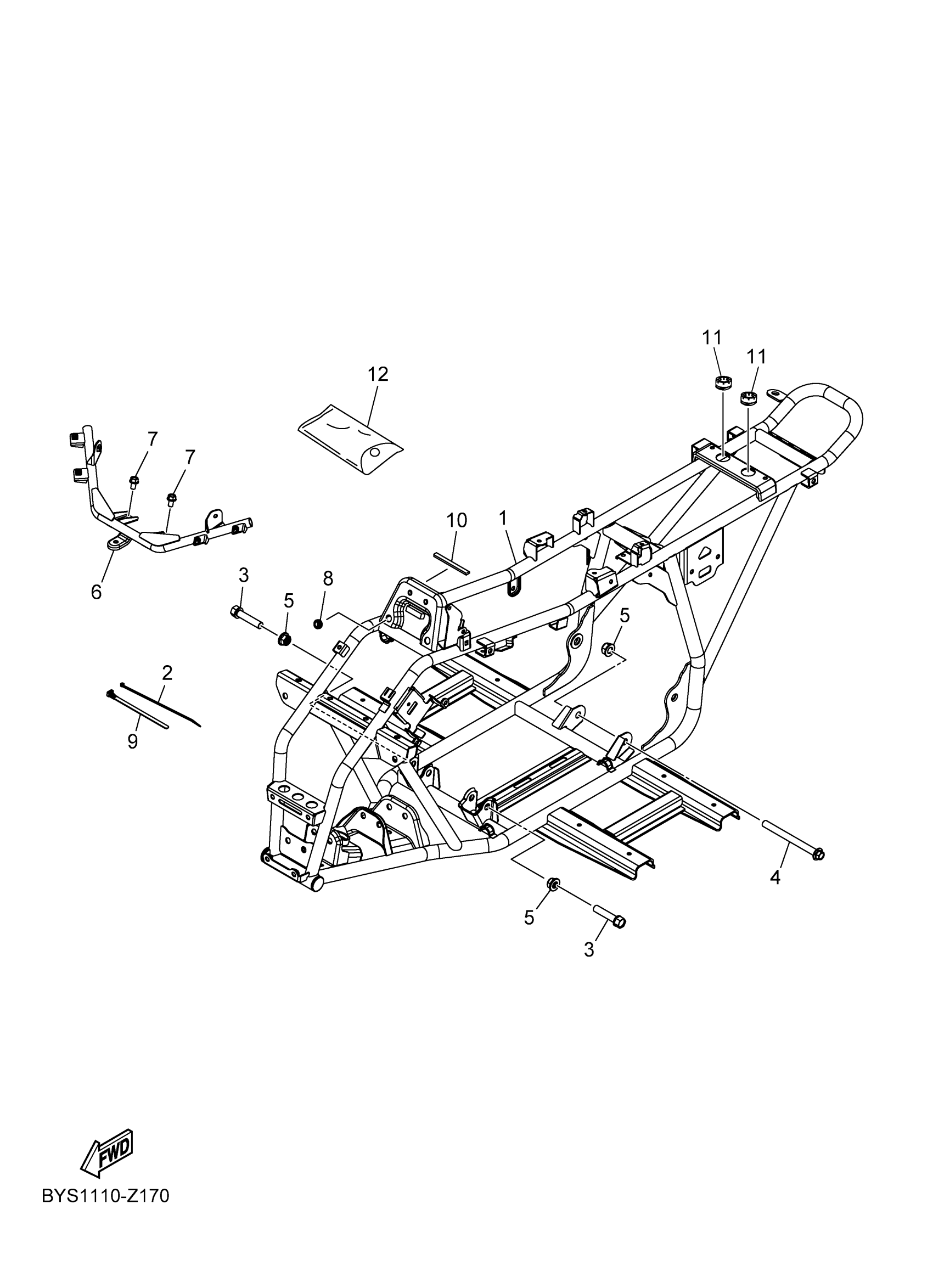

Yamaha YFM01RYXRL (RAPTOR 110) BYS1 2024 FRAME Diagram

#

Description

Price

1

FRAME COMP.

BYS-F1110-00-00

Unavailable

2

BAND

BD3-F1646-00-00

Unavailable

3

BOLT

BYS-F6332-00-00

Unavailable

4

BOLT 3

BYS-F4178-00-00

Unavailable

5

NUT

BYS-F1839-00-00

Unavailable

6

STAY, FENDER 1

BD3-F1513-00-00

Unavailable

7

BOLT 1

BD3-F4176-10-00

Unavailable

8

GROMMET

BD3-F1719-00-00

Unavailable

9

BAND

BW4-F1647-00-00

$1.81

10

PROTECTOR 1

BW4-F476U-00-00

$2.44

11

DAMPER

BD3-F113B-00-00

$8.49

12

TOOL KIT

BD3-F8100-20-00

Unavailable
