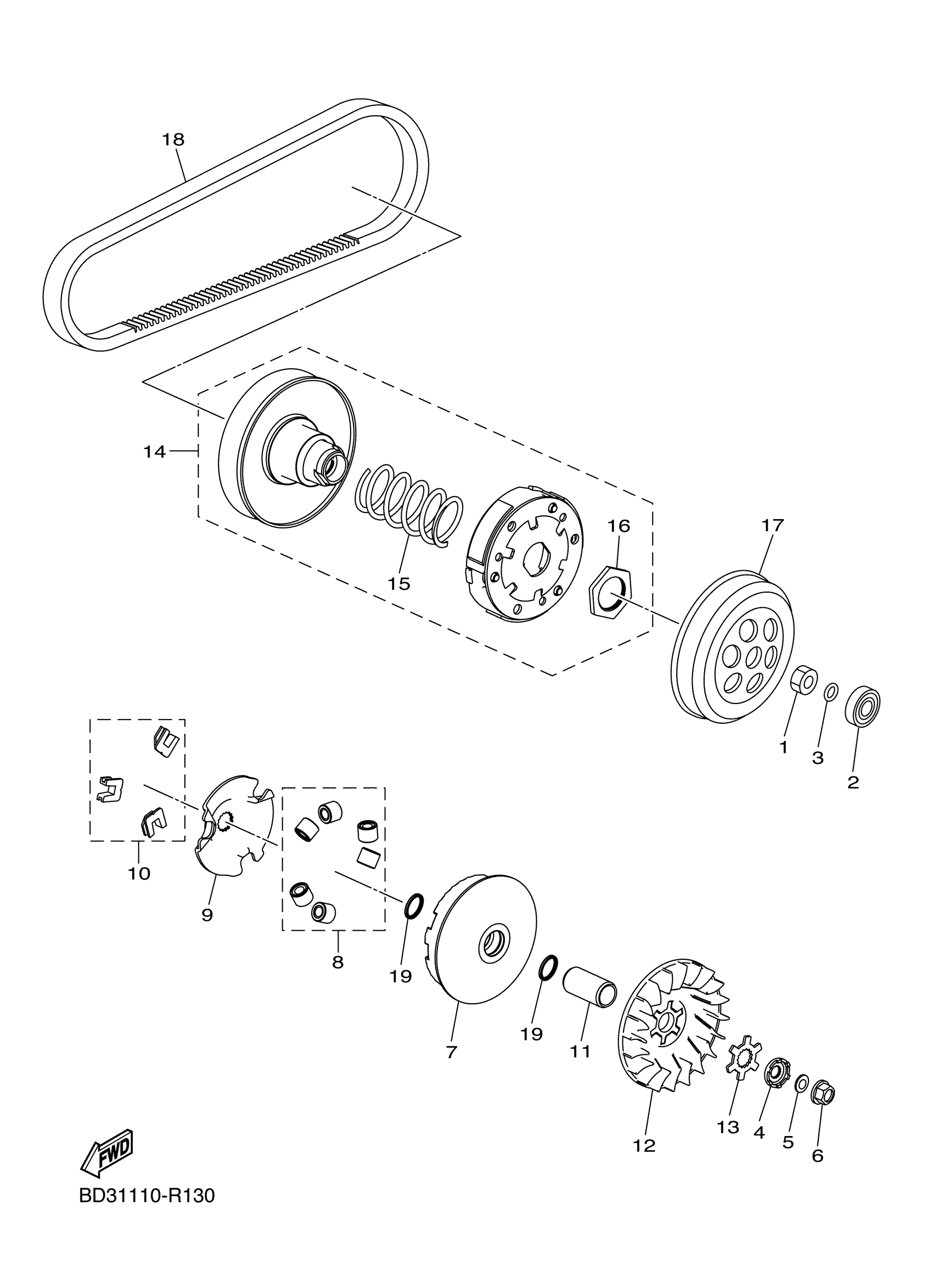

Yamaha YFM01RYXRL (RAPTOR 110) BYS1 2024 CLUTCH Diagram

#

Description
Price

1

NUT

BD3-E4594-10-00

$14.99

2

BEARING 1

BD3-E7156-00-00

$46.99

3

O-RING

BD3-E3769-00-00

$2.17

4

CLUTCH, ONEWAY

BD3-E5657-00-00

$12.49

5

WASHER

BD3-F3427-00-00

$5.49

6

NUT 2

BD3-F3834-10-00

$3.35

7

SHEAVE, PRIMARY SLIDING

BD3-E7621-00-00

$73.99

8

WEIGHT

BYS-E7632-00-00

Unavailable

9

CAM

BD3-E7623-00-00

Unavailable

10

BUSH

BD3-E7625-00-00

$14.99

11

BUSH

BD3-E7637-00-00

Unavailable

12

SHEAVE, PRIMARY FIXED

BD3-E7611-00-00

Unavailable

13

WASHER, LOCK

BD3-E7646-00-00

$7.49

14

CLUTCH CARRIER ASSY

BD3-E6620-10-00

$216.99

15

SPRING, SECONDARY

BD3-E7683-00-00

$28.99

16

NUT

BD3-E4595-10-00

Unavailable

17

CLUTCH HOUSING COMP.

BD3-E6611-00-00

Unavailable

18

V-BELT

BD3-E7641-00-00

Unavailable

19

OIL SEAL

BD3-E76F3-00-00

Unavailable
