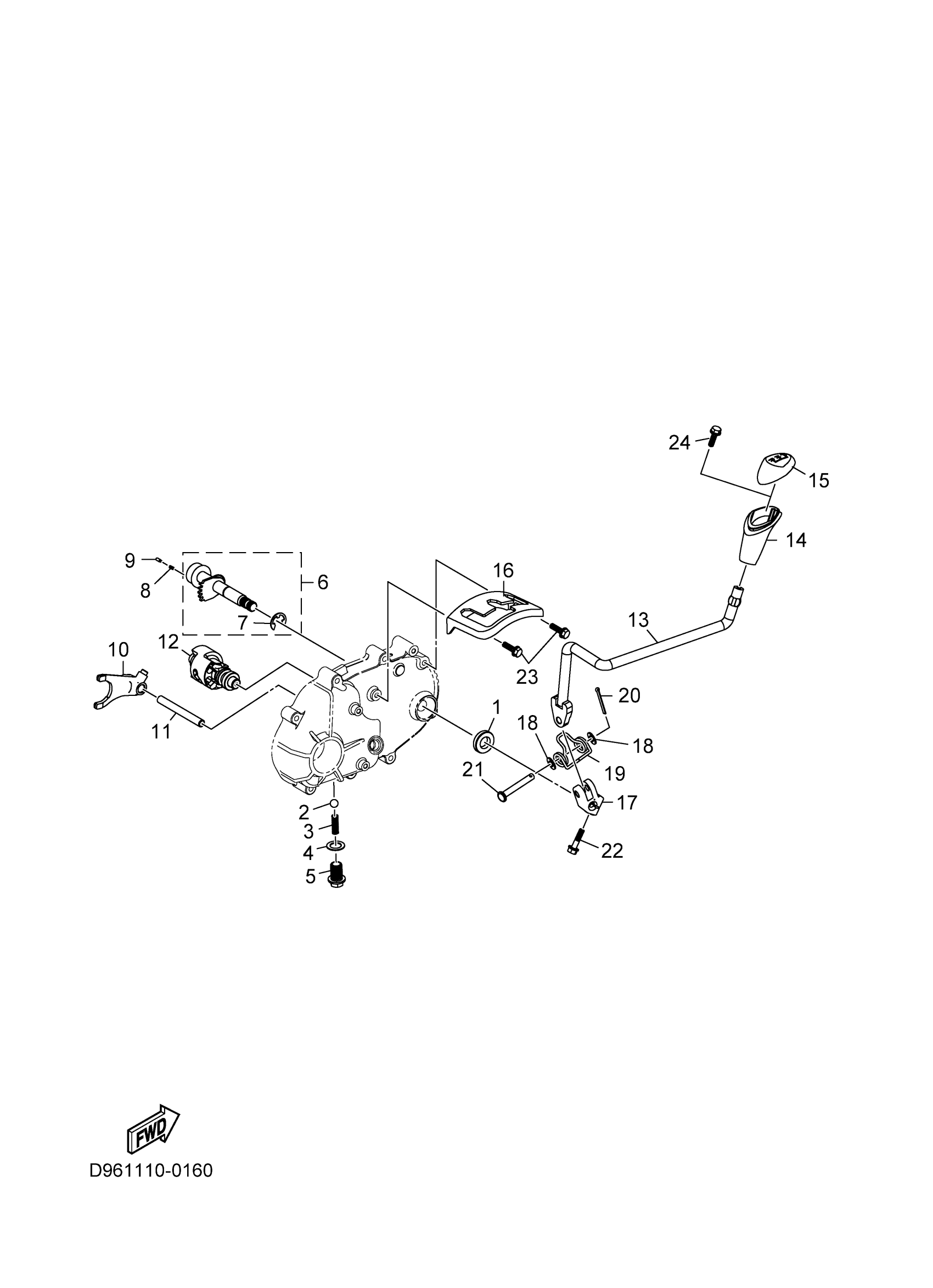

Yamaha YFM01GYXTS (GRIZZLY 110) D963 2026 SHIFT CAM & FORK Diagram

#

Description
Price

1

OIL SEAL

BD3-G3882-00-00

$5.68

2

BALL

BD3-E7051-00-00

$2.98

3

SPRING, BALL HOLD

BD3-E7479-00-00

$2.98

4

WASHER,1

BD3-E7058-00-00

$4.66

5

SCREW, FIXED

BD3-E765G-10-00

$18.46

6

SHIFT SHAFT COMP.

BD3-E8103-10-00

Unavailable

7

CIRCLIP 1

BD3-HA906-00-00

Unavailable

8

SPRING

BD3-E8545-00-00

$2.98

9

POINT, NEUTRAL

BD3-E8542-00-00

$5.78

10

FORK, SHIFT 1

BD3-E8511-00-00

$97.78

11

BAR, SHIFT FORK GUIDE 1

BD3-E8531-00-00

$16.22

12

SHIFT CAM ASSY

BD3-E8540-00-00

$258.57

13

LEVER COMP. 1

BD3-E8190-00-00

$155.99

14

KNOB, SHIFT LEVER

BD3-E8174-00-00

$26.02

15

KNOB

BD3-E7496-00-00

$5.78

16

GUIDE, SHIFT

BD3-E8172-00-00

$49.75

17

GUIDE

BD3-E8179-00-00

$80.77

18

WASHER

BD3-E5615-10-00

$2.03

19

SPRING, RETURN

BD3-E8196-00-00

Unavailable

20

PIN 2

BD3-F146E-10-00

$1.58

21

SHAFT, SHIFT

BD3-E8125-10-00

$6.63

22

BOLT

BD3-G8171-10-00

$2.03

23

BOLT

BD3-H1452-10-00

$2.20

24

BOLT

BD3-H1552-10-00

$4.60
