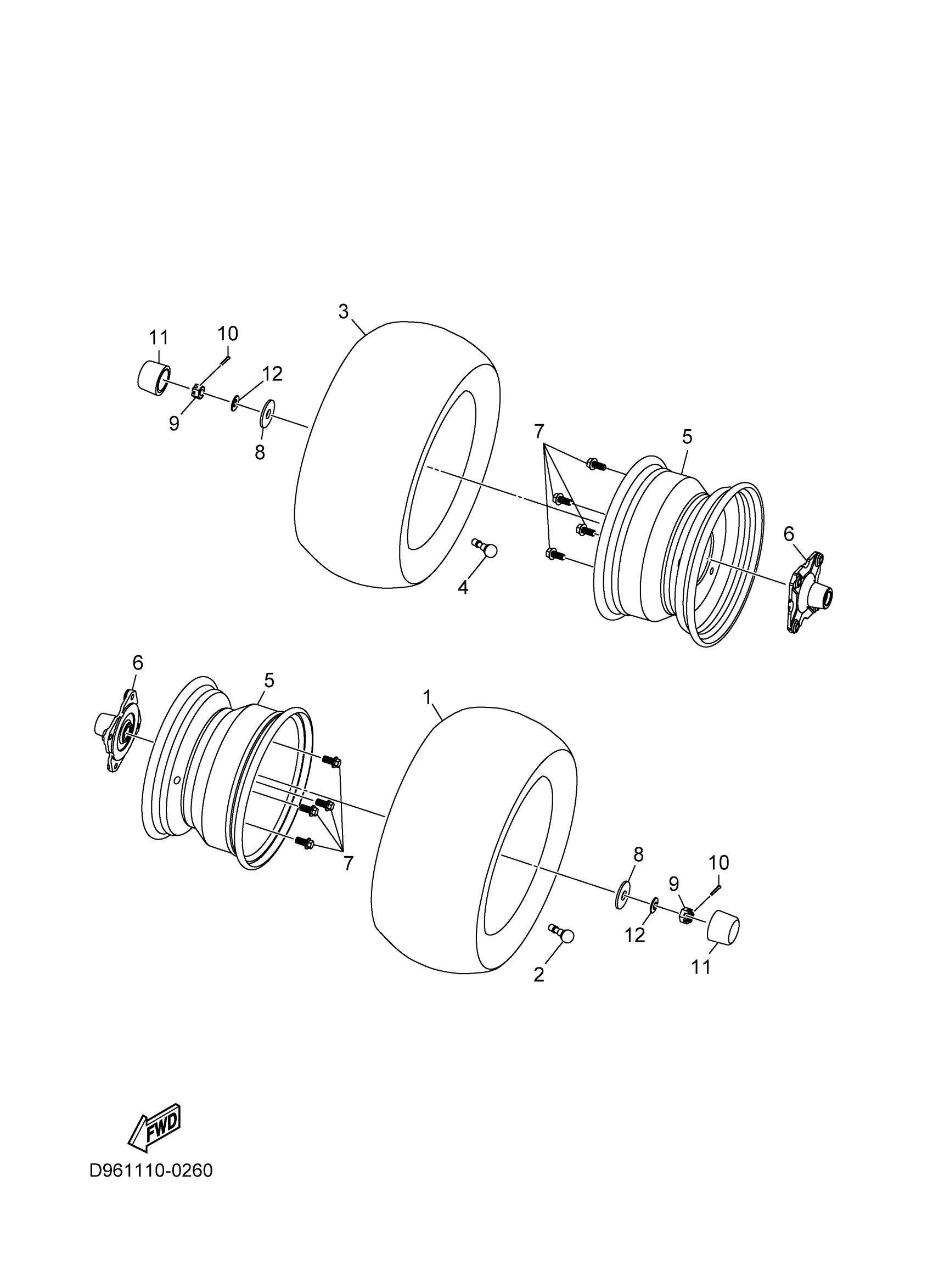

Yamaha YFM01GYXTS (GRIZZLY 110) D963 2026 REAR WHEEL Diagram

#

Description
Price

1

TIRE

B8W-F53P3-00-00

$319.97

2

AIR VALVE ASSY

BD3-F5170-00-00

$29.77

3

TIRE

B8W-F53P3-00-00

$319.97

4

AIR VALVE ASSY

BD3-F5170-00-00

$29.77

5

WHEEL COMP.

BD3-F5180-00-00

$169.99

6

COLLAR, WHEEL

BD3-F5377-10-00

$266.99

7

BOLT

BD3-F4592-10-00

$5.94

8

WASHER 1

BD3-F2243-10-00

$7.14

9

NUT, AXLE

BD3-F5382-10-00

$5.65

10

PIN

BD3-F112N-10-00

$1.62

11

CAP, WHEEL

BD3-F512A-00-00

$9.89

12

WASHER, SPRING LOWER

BD3-F2159-00-00

$7.72
