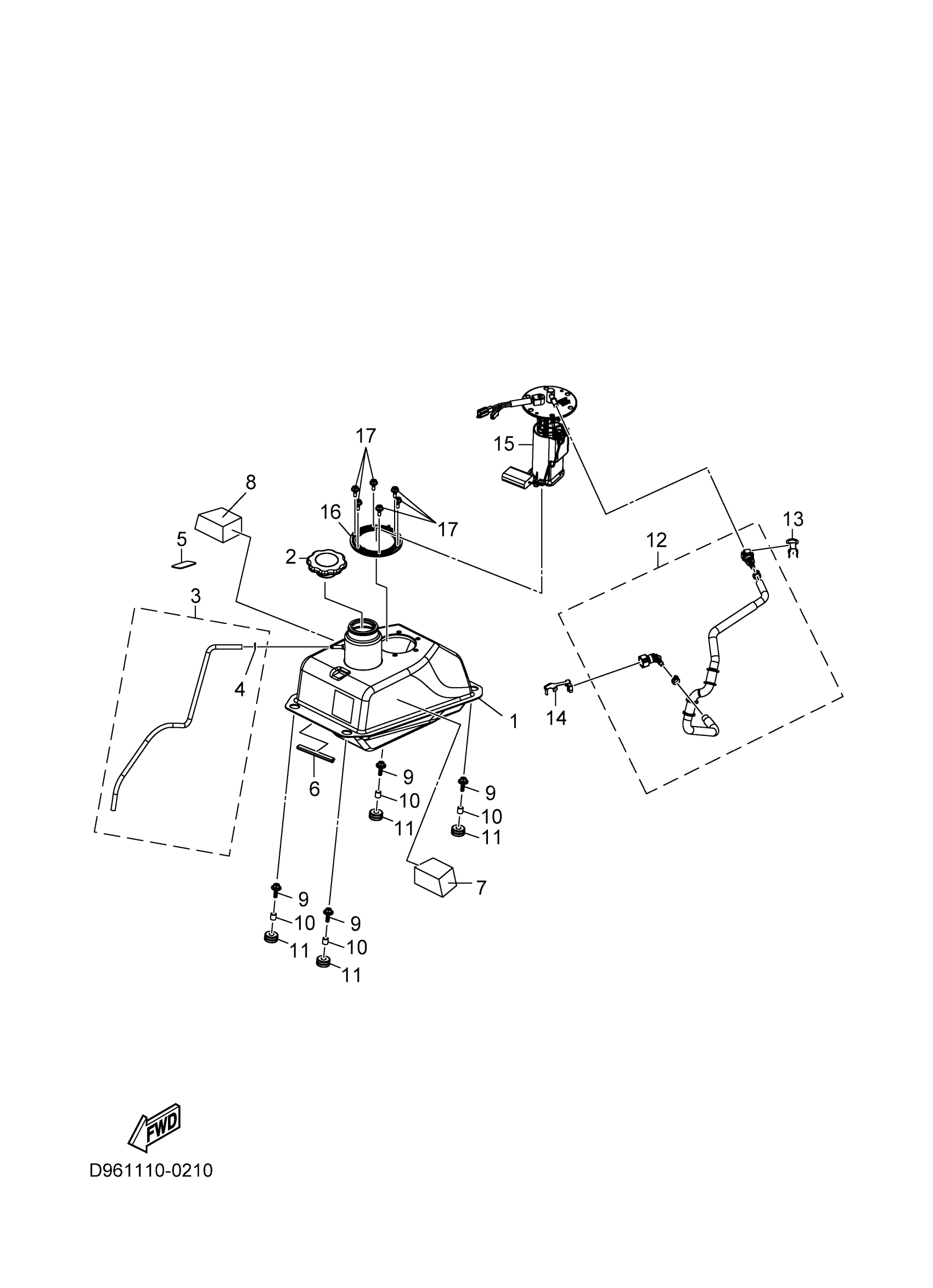

Yamaha YFM01GYXTS (GRIZZLY 110) D963 2026 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

D96-F4110-00-00

$495.99

2

CAP ASSY

BD3-F4610-10-00

$79.11

3

HOSE ASSY

BYS-F318J-00-00

$15.88

4

CLIP

BD3-F3447-10-00

$2.20

5

TAPE, 1

BD3-F1566-00-00

$3.57

6

PROTECTOR 1

BW4-F476U-00-00

$1.03

7

DAMPER, LOCATING 1

B8W-F4181-00-00

$9.91

8

DAMPER, LOCATING 2

B8W-F4182-00-00

$9.91

9

BOLT

BD3-F3493-00-00

$3.80

10

GROMMET

BD3-F4339-00-00

$4.86

11

COLLAR

BD3-F412G-10-00

$3.77

12

PIPE, FUEL 1

BYS-E3971-00-00

$189.99

13

CLAMP 1

BYS-F4135-00-00

$8.12

14

CLAMP 2

BYS-F4136-00-00

$6.35

15

FUEL PUMP COMP.

BYS-E3907-00-00

$395.91

16

SEAL

BYS-F414G-00-00

$27.97

17

BOLT 1

BYS-F4176-00-00

$9.18
