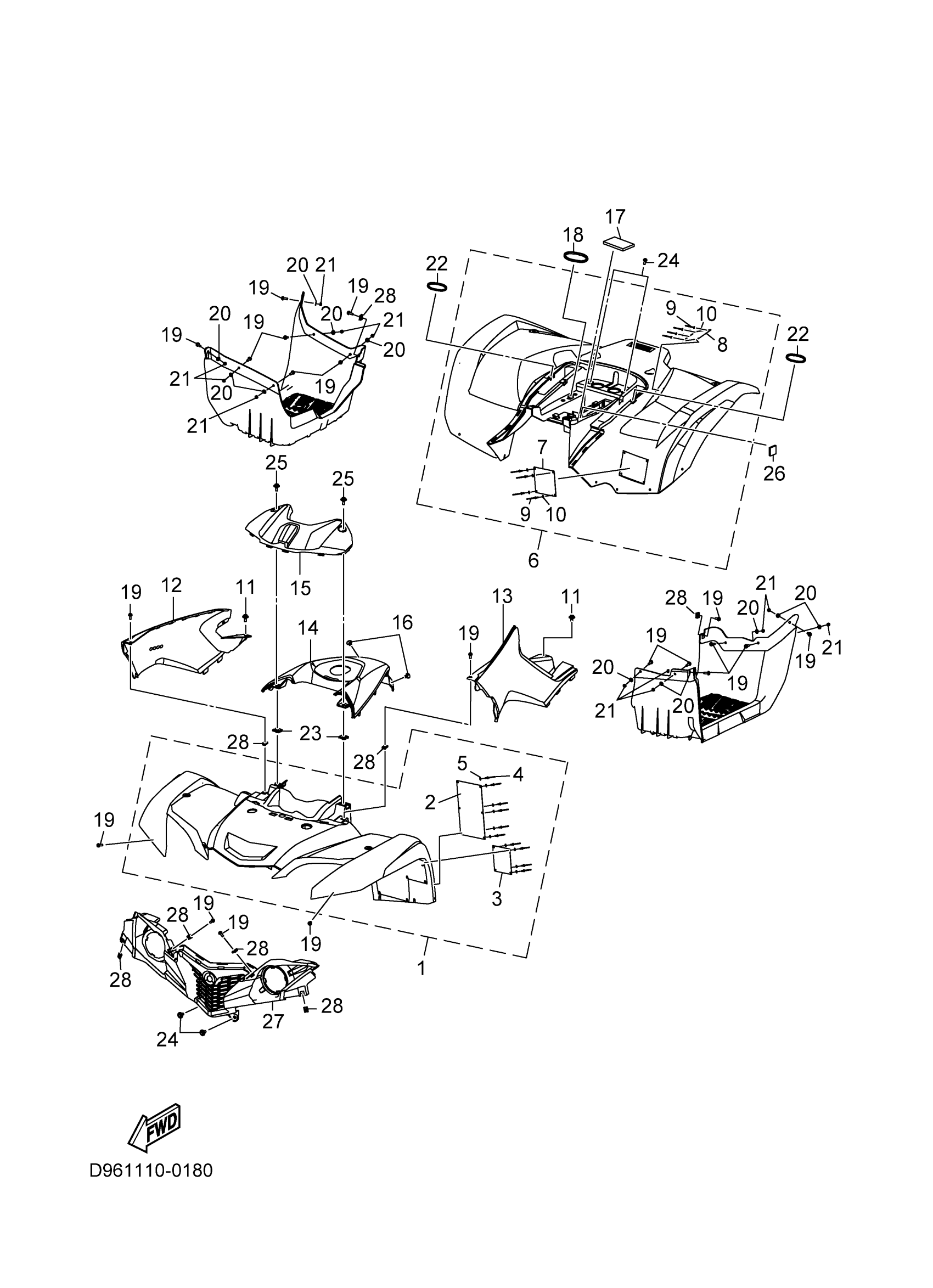

Yamaha YFM01GYXTS (GRIZZLY 110) D963 2026 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

D96-F1500-90-00

Unavailable

2

LABEL, WARNING

BYS-F1568-00-00

Unavailable

3

LABEL, WARNING AGE

BD3-F816L-00-00

$34.00

4

RIVET

BD3-F1128-00-00

$2.06

5

WASHER, SPECIAL 1

BD3-F1615-10-00

$2.93

6

REAR FENDER ASSY

D96-F1600-90-00

Unavailable

7

LABEL, WARNING TIR

B8W-F816M-00-00

$22.63

8

LABEL 5

BD3-F151H-00-00

$16.82

9

RIVET

BD3-F1128-00-00

$2.06

10

WASHER, SPECIAL 1

BD3-F1615-10-00

$2.93

11

BOLT

BD3-F1738-00-00

$2.12

12

COVER, SIDE 2

B8W-F1721-40-00

Unavailable

13

COVER, SIDE 1

B8W-F1711-40-00

Unavailable

14

COVER, TOP

B8W-F171A-40-00

Unavailable

15

FENDER, FRONT 2

B8W-F1556-00-00

$54.99

16

RIVET

BYS-F1728-00-00

$5.74

17

SEAT, BATTERY

BD3-H2122-00-00

$1.58

18

BAND, BATTERY

BD3-H2131-00-00

$6.28

19

SCREW 4

BW4-F11C8-00-00

$6.68

20

WASHER

BW4-F2149-00-00

$1.71

21

NUT 3

BW4-F4148-00-00

$1.66

22

BAND, TOOL

BD3-F1376-00-00

$3.62

23

NUT

BD3-F4149-10-00

$5.14

24

BOLT 2

BD3-F1632-10-00

$3.09

25

BOLT 2

BD3-F3356-10-00

$5.14

26

DAMPER

BD3-F1649-00-00

$2.08

27

GRILLE, FRONT

B8W-F8309-00-00

$345.99

28

NUT SPRING 1

BD3-E261D-10-00

$2.98
