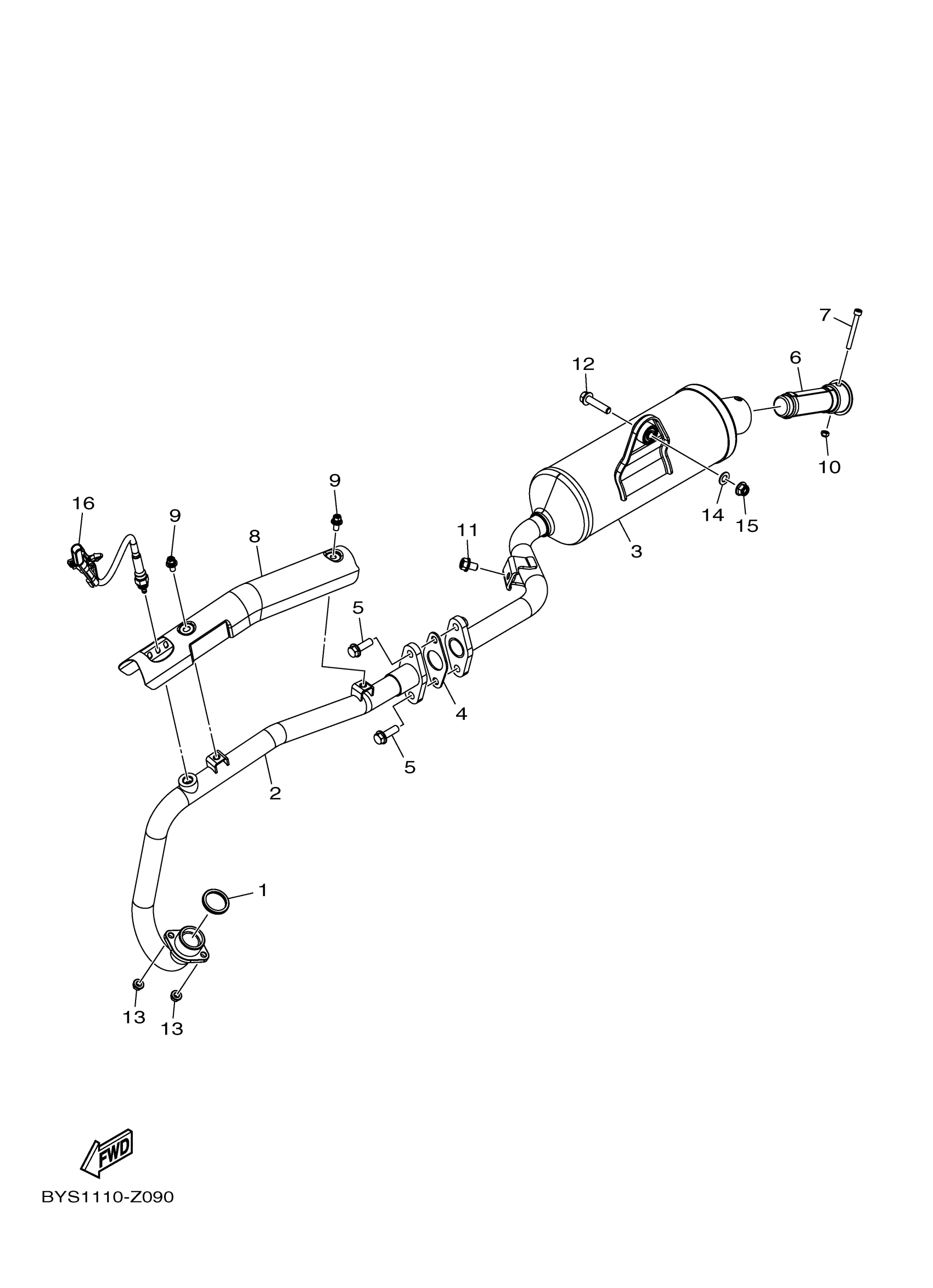

Yamaha YFM01GYXTS (GRIZZLY 110) D963 2026 EXHAUST Diagram

Description

Price

GASKET, EXHAUST PIPE

BD3-E4613-00-00

Unavailable

PIPE, EXHAUST 1

BYS-E4611-10-00

$223.91

MUFFLER 1

BYS-E4711-00-00

$583.99

GASKET, MUFFLER

BD3-E4714-00-00

$20.42

BOLT

BD3-E5768-00-00

$4.32

SPARK ARRESTER ASSY

BD3-E4780-00-00

$126.43

BOLT 2

BD3-E3574-00-00

$5.26

PROTECTOR, EXHAUST PIPE

BYS-E4628-00-00

$103.09

BOLT, HEX W/WASHER

BD3-E6194-00-00

Unavailable

NUT

BD3-E4358-00-00

$11.63

BOLT

BD3-F3876-10-00

$3.56

BOLT

BD3-E6777-10-00

Unavailable

NUT, REAR FENDER

BD3-F1635-10-00

$4.35

WASHER

BD3-E2289-10-00

$1.62

NUT, REAR FENDER

BD3-F1635-10-00

$4.35

SENSOR, OXYGEN

BYS-H592A-00-00

Unavailable
