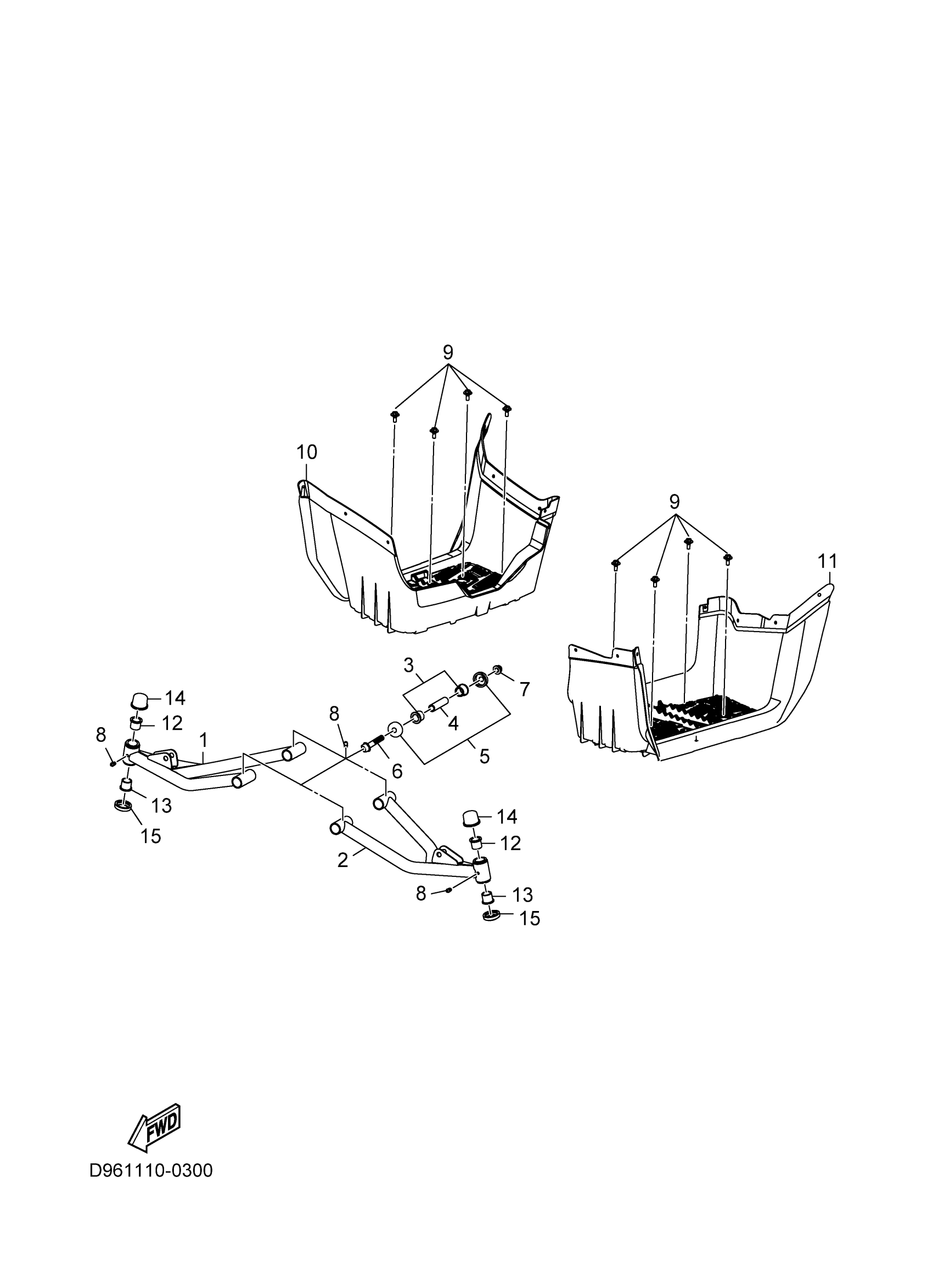

Yamaha YFM01GYXSD (GRIZZLY 110) D961 2025 STAND & FOOTREST Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (RIGHT)

BD3-F3580-10-00

Unavailable

2

FRONT LOWER ARM COMP. (LEFT)

BD3-F3570-10-00

Unavailable

3

BUSH

BYS-F3526-00-00

Unavailable

4

COLLAR 2

BD3-F3364-00-00

$15.55

5

COVER, THRUST 1

BD3-F3517-00-00

$7.77

6

BOLT, MAIN STAND

BD3-F7117-10-00

$11.31

7

NUT 2

BD3-F3834-10-00

$2.78

8

NIPPLE

BD3-F135J-10-00

$4.12

9

BOLT 2

BD3-F1632-10-00

$2.89

10

COVER 2

B8W-F7463-00-00

Unavailable

11

COVER 1

B8W-F7453-00-00

$186.23

12

BUSH 1

BD3-F639L-00-00

$6.43

13

BUSH 2

BD3-F639M-00-00

$4.40

14

COVER, THRUST 2

BD3-F2129-00-00

Unavailable

15

SEAL, DUST 1

BD3-F3527-00-00

$3.82
