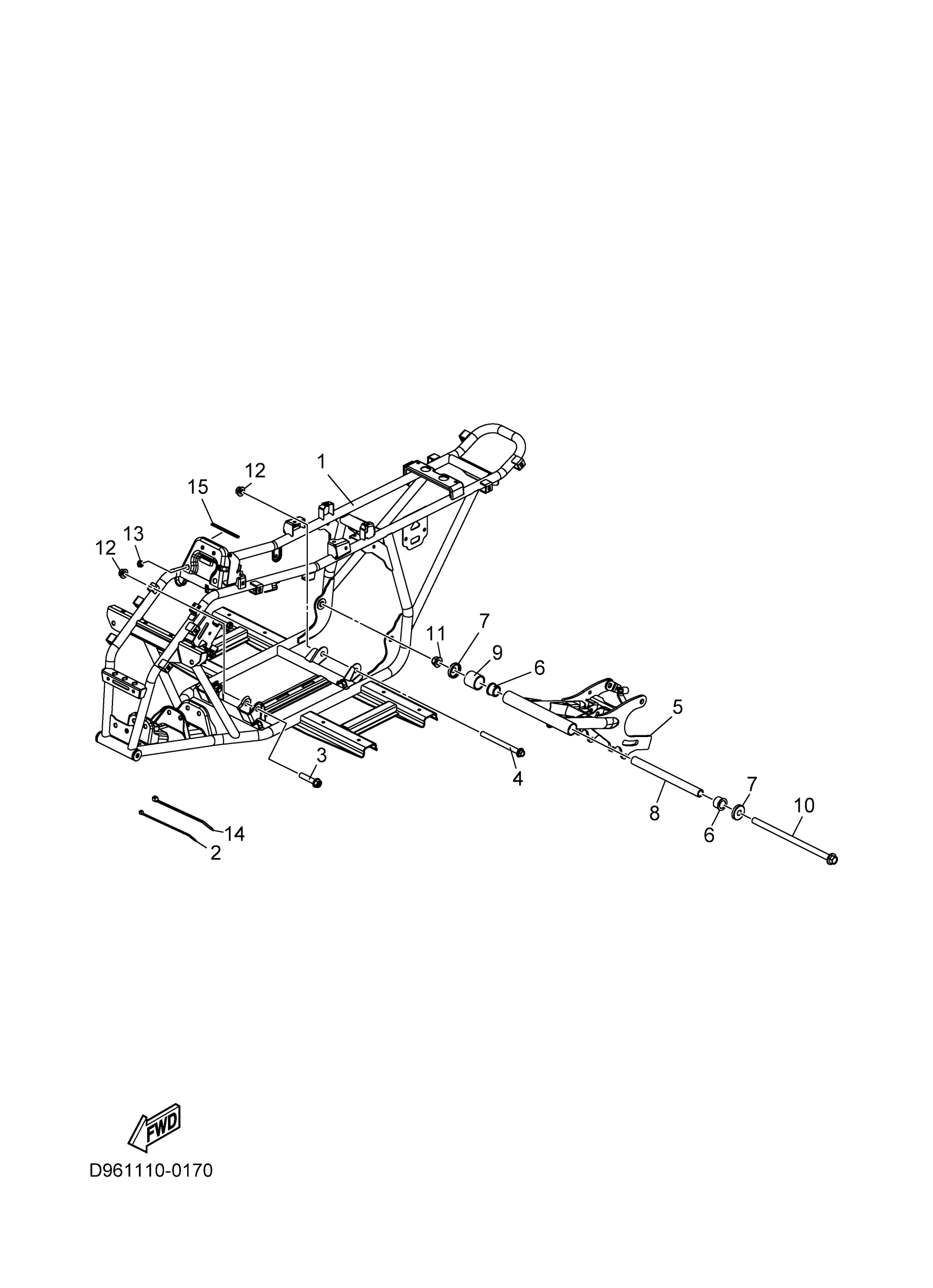

Yamaha YFM01GYXSD (GRIZZLY 110) D961 2025 FRAME Diagram

#

Description
Price

1

FRAME COMP.

D96-F1110-00-00

$1,615.99

2

BAND

BD3-F1646-00-00

Unavailable

3

BOLT

BYS-F6332-00-00

$7.48

4

BOLT 3

BYS-F4178-00-00

$19.12

5

REAR ARM COMP.

BYS-F2110-00-00

Unavailable

6

BUSH 1

BD3-F2123-00-00

$8.51

7

COVER, THRUST 1

BD3-F2128-00-00

$8.51

8

COLLAR, DISTANCE

BD3-F2126-00-00

Unavailable

9

SEAL, GUARD

BD3-F2151-00-00

$5.90

10

BOLT 2

BD3-F1722-10-00

$67.62

11

NUT 1

BD3-F1535-10-00

$14.14

12

NUT

BYS-F1839-00-00

$11.26

13

GROMMET

BD3-F1719-00-00

Unavailable

14

BAND

BW4-F1647-00-00

$2.26

15

PROTECTOR 1

BW4-F476U-00-00

$1.02
