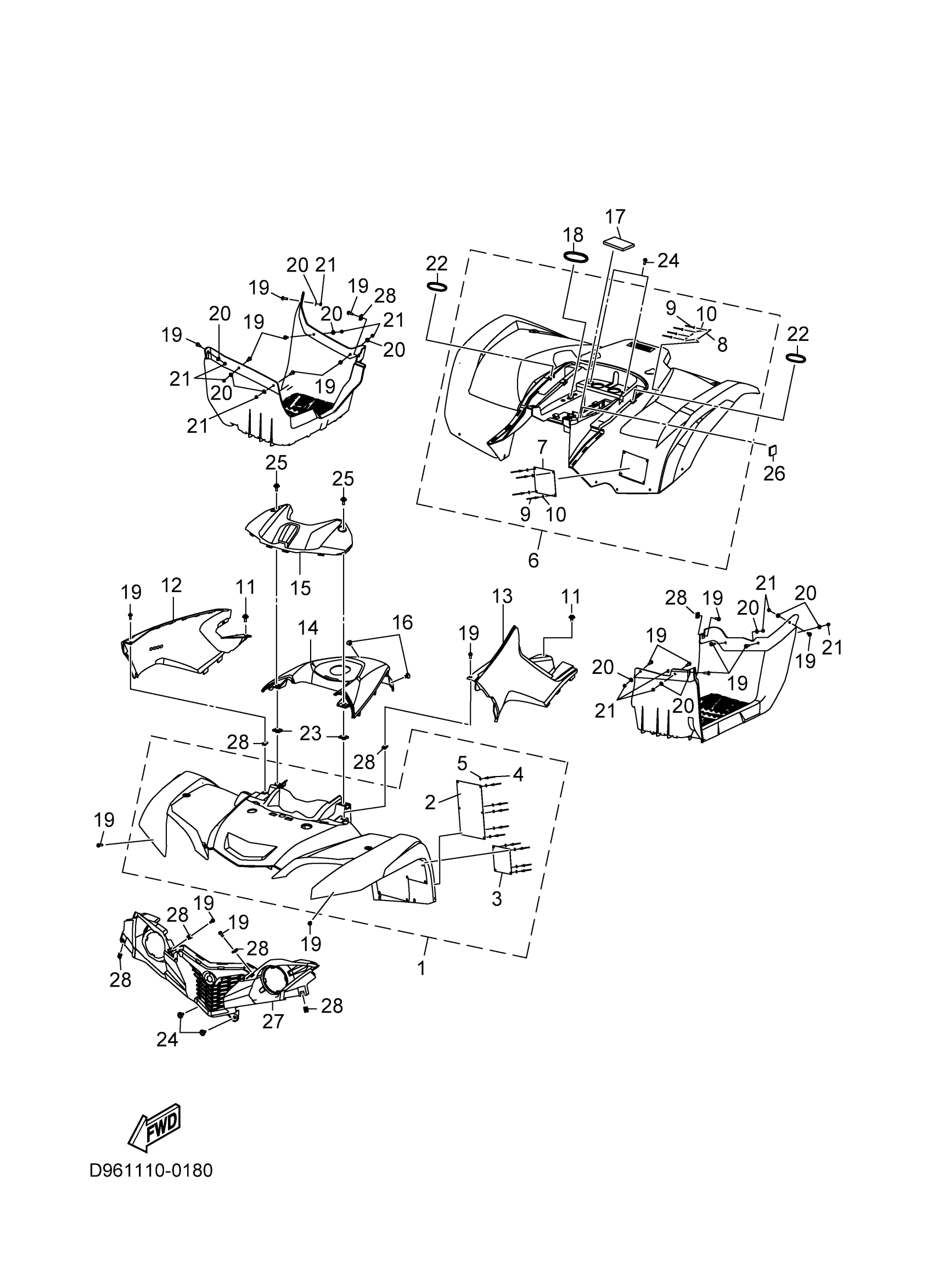

Yamaha YFM01GYXSD (GRIZZLY 110) D961 2025 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

B8W-F1500-70-00

$745.99

2

LABEL, WARNING

BD3-F1568-00-00

$39.86

3

LABEL, WARNING AGE

BD3-F816L-00-00

$33.48

4

RIVET

BD3-F1128-00-00

$1.93

5

WASHER, SPECIAL 1

BD3-F1615-10-00

$2.80

6

REAR FENDER ASSY

D96-F1600-70-00

$876.99

7

LABEL, WARNING TIR

B8W-F816M-00-00

$22.29

8

LABEL 5

BD3-F151H-00-00

$16.56

9

RIVET

BD3-F1128-00-00

$1.93

10

WASHER, SPECIAL 1

BD3-F1615-10-00

$2.80

11

BOLT

BD3-F1738-00-00

$2.12

12

COVER, SIDE 2

B8W-F1721-30-00

$167.59

13

COVER, SIDE 1

B8W-F1711-30-00

Unavailable

14

COVER, TOP

B8W-F171A-30-00

$89.94

15

FENDER, FRONT 2

B8W-F1556-00-00

$65.80

16

RIVET

BYS-F1728-00-00

Unavailable

17

SEAT, BATTERY

BD3-H2122-00-00

Unavailable

18

BAND, BATTERY

BD3-H2131-00-00

Unavailable

19

SCREW 4

BW4-F11C8-00-00

Unavailable

20

WASHER

BW4-F2149-00-00

Unavailable

21

NUT 3

BW4-F4148-00-00

Unavailable

22

BAND, TOOL

BD3-F1376-00-00

Unavailable

23

NUT

BD3-F4149-10-00

Unavailable

24

BOLT 2

BD3-F1632-10-00

Unavailable

25

BOLT 2

BD3-F3356-10-00

Unavailable

26

DAMPER

BD3-F1649-00-00

Unavailable

27

GRILLE, FRONT

B8W-F8309-00-00

Unavailable

28

NUT SPRING 1

BD3-E261D-10-00

Unavailable
