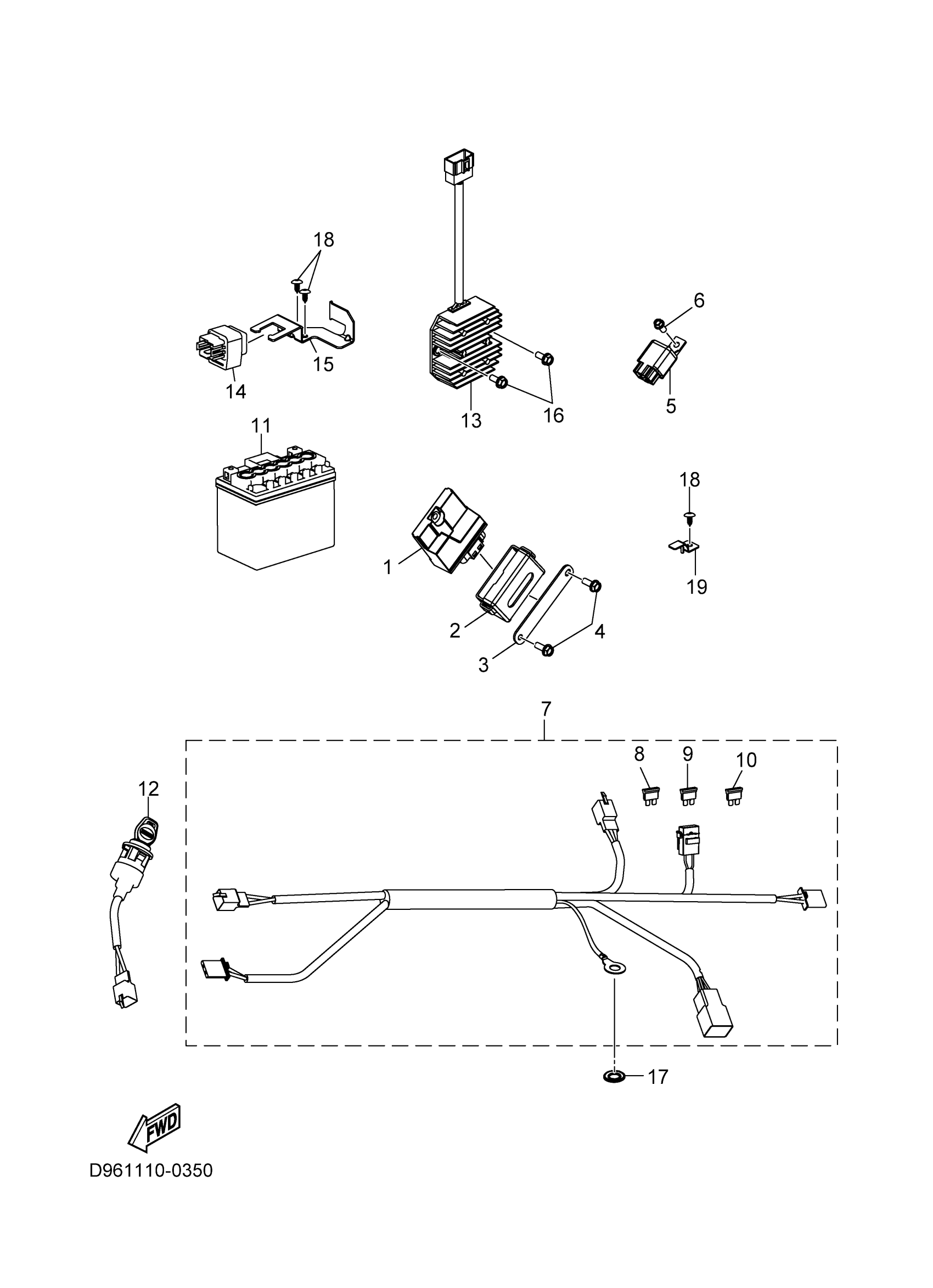

Yamaha YFM01GYXSD (GRIZZLY 110) D961 2025 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

BYS-H591A-00-00

Unavailable

2

BAND

BYS-H5546-00-00

Unavailable

3

BRACKET, UNIT

BYS-H5991-00-00

Unavailable

4

BOLT

BD3-E2228-10-00

$4.14

5

RELAY ASSY

BYS-H1950-00-00

Unavailable

6

BOLT

BD3-E7647-10-00

Unavailable

7

WIRE HARNESS ASSY

BYS-H2590-00-00

$619.99

8

FUSE

BYS-H2151-00-00

$2.28

9

FUSE

BYS-H2151-10-00

$2.28

10

FUSE

BYS-H2151-20-00

$2.28

11

BATTERY ASSY

BYS-H2100-00-00

Unavailable

12

MAIN SWITCH ASSY

B8W-H2510-00-00

$73.99

13

RECTIFIER & REGULATOR ASSY

BYS-H1960-00-00

$149.99

14

STARTER RELAY ASSY

BD3-H1940-00-00

$71.99

15

BRACKET

BYS-H1948-00-00

Unavailable

16

BOLT

BYS-E2228-00-00

Unavailable

17

WASHER

BD3-F3456-10-00

Unavailable

18

SCREW, 1

BD3-F2969-10-00

Unavailable

19

BRACKET

BYS-H3614-00-00

Unavailable
