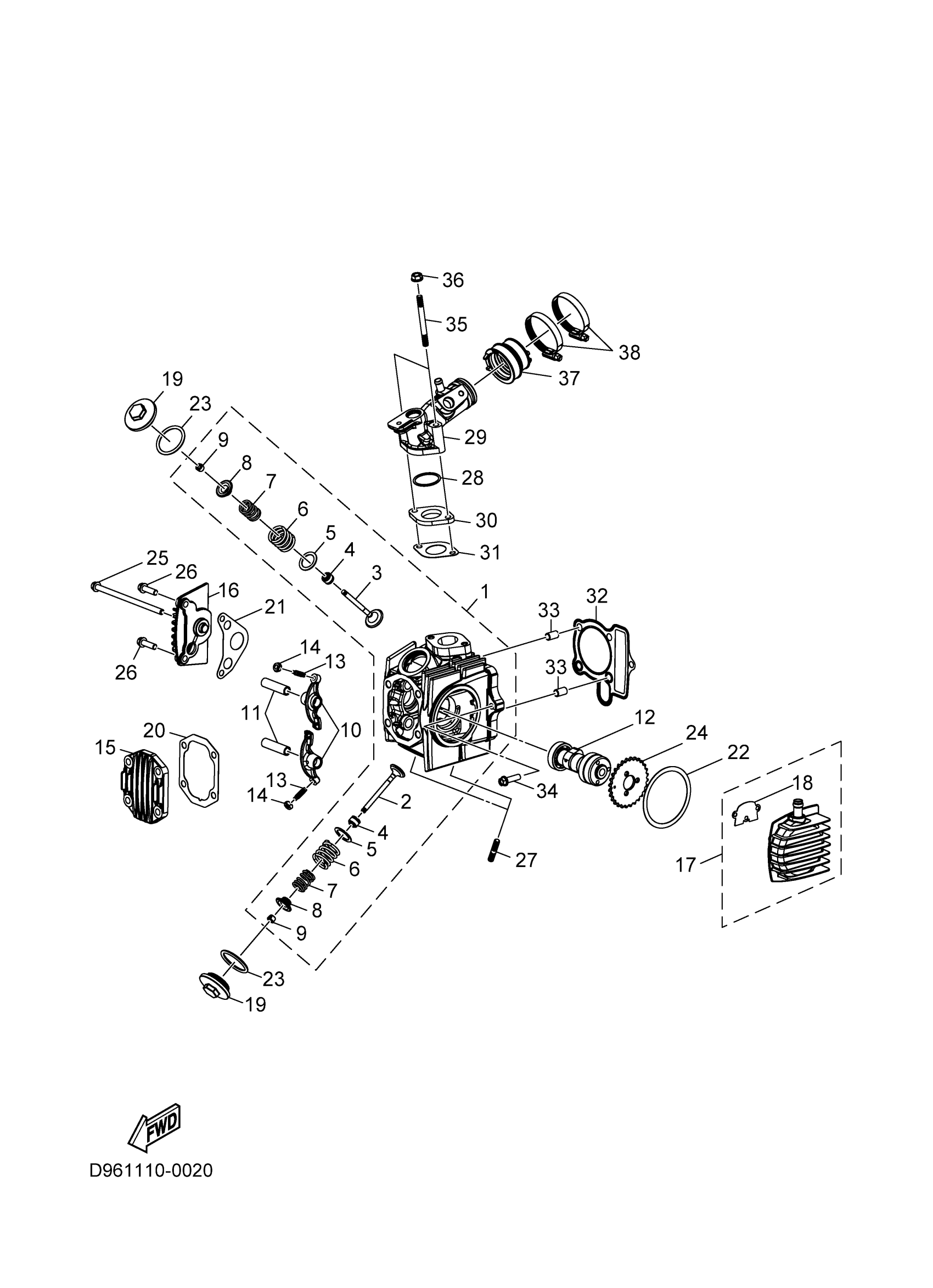

Yamaha YFM01GYXSD (GRIZZLY 110) D961 2025 CYLINDER HEAD Diagram
#
Description
Price
3
VALVE, INTAKE
BD3-E2111-00-00
Unavailable
16
COVER, CYLINDER HEAD 3
BYS-E112E-00-00
Unavailable
17
COVER, CYLINDER HEAD 1
BYS-E1191-10-00
Unavailable
18
GASKET
BD3-E1195-10-00
Unavailable
19
COVER, CYLINDER HEAD SIDE 2
BD3-E1186-00-00
Unavailable
20
GASKET, HEAD COVER 1
BD3-E1193-20-00
Unavailable
21
GASKET, HEAD COVER 2
BD3-E1194-20-00
Unavailable
22
GASKET, BREATHER COVER
BD3-E1169-10-00
Unavailable
23
O-RING
BD3-E119B-00-00
Unavailable
24
SPROCKET, CAM CHAIN
BD3-E2176-00-00
Unavailable
25
BOLT
BD3-E2615-10-00
Unavailable
26
BOLT
BD3-E2623-10-00
Unavailable
27
BOLT, STUD
BYS-E1179-10-00
Unavailable
28
O-RING
BYS-E119A-00-00
Unavailable
29
MANIFOLD
BYS-E3585-00-00
Unavailable
30
INSULATOR
BD3-E4271-00-00
Unavailable
31
GASKET, MANIFOLD
BD3-E3556-00-00
Unavailable
32
GASKET, CYLINDER HEAD 1
BYS-E1181-00-00
Unavailable
33
PIN, DOWEL
BD3-E3516-00-00
Unavailable
34
BOLT
BD3-E2157-10-00
Unavailable
35
BOLT, STUD 1
BYS-E1391-00-00
Unavailable
36
NUT
BD3-F1494-10-00
Unavailable
37
JOINT, CARBURETOR 1
BYS-E3586-00-00
Unavailable
38
CLAMP, HOSE 1
BYS-E1387-00-00
Unavailable
