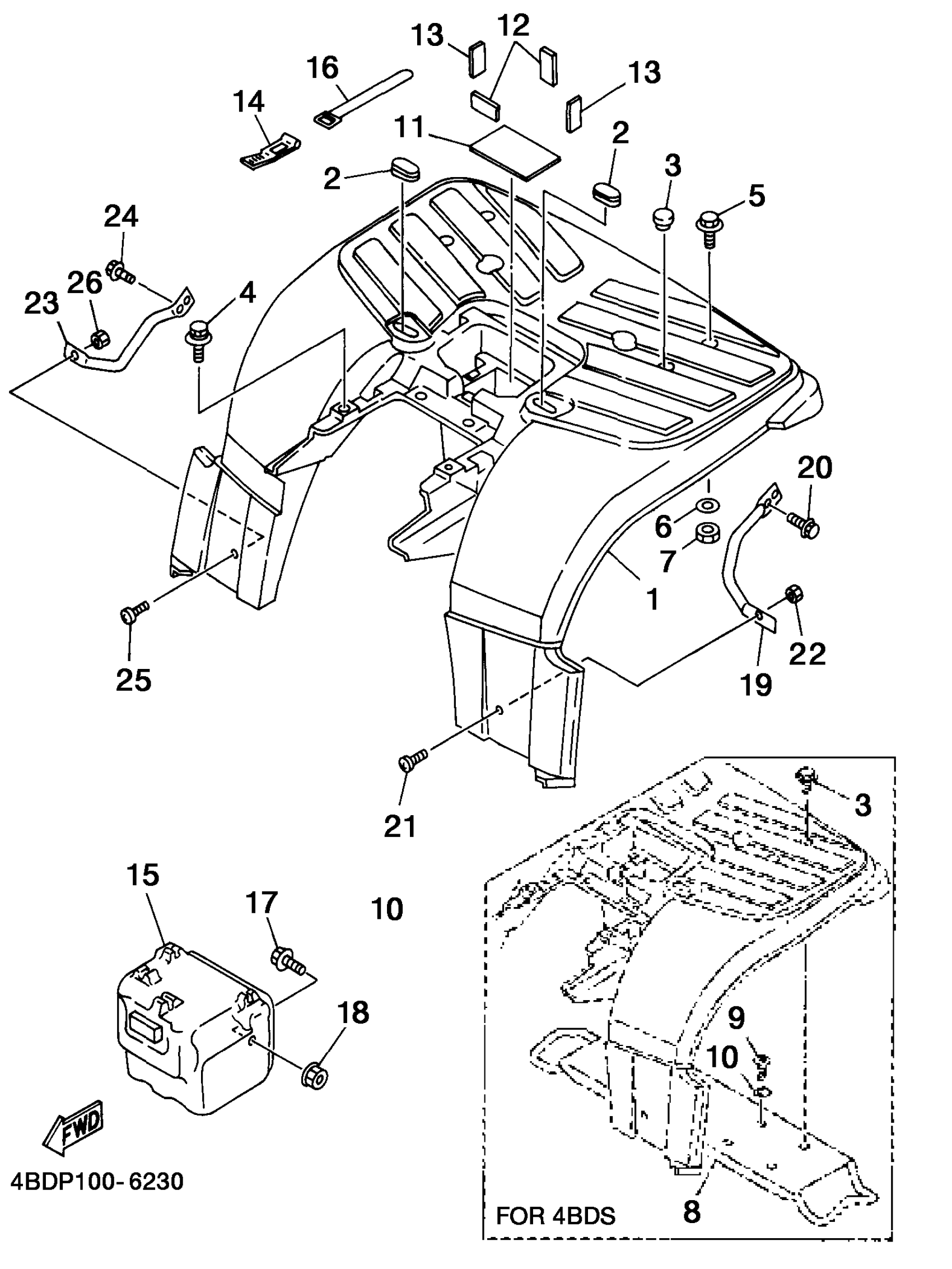

Yamaha YFB250UK (TIMBERWOLF) 4BDP 1998 REAR FENDER 1 Diagram
#
Description
Price
1
REAR FENDER COMP (4BDS) (ROMANTIQUE ROUGE)
4KD-W2161-50-00
Unavailable
1
REAR FENDER COMP (4BDS) (AROMA GREEN)
4KD-W2161-60-00
Unavailable
1
REAR FENDER COMP (4BDS) (YELLOWISH GRAY SOLID 2)
4KD-W2161-70-00
Unavailable
1
REAR FENDER COMP (4BDP) (ROMANTIQUE ROUGE)
4KD-W2161-C0-00
Unavailable
1
REAR FENDER COMP (4BDP) (AROMA GREEN)
4KD-W2161-D0-00
Unavailable
1
REAR FENDER COMP (4BDP) (YELLOWISH GRAY SOLID 2)
4KD-W2161-E0-00
Unavailable
2
GROMMET
90480-01556-00
Unavailable
8
STAY, FENDER 1
4BD-21613-00-00
Unavailable
10
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
11
DAMPER 2
4BD-21639-00-00
Unavailable
12
DAMPER
1YW-21638-00-00
Unavailable
13
DAMPER, SIDE COVER
26H-21746-00-00
Unavailable
14
CLAMP(4BD)
90464-48174-00
Unavailable
15
BOX COMP.
4BD-2160A-00-00
Unavailable
16
BAND
59V-21646-00-00
Unavailable
18
NUT, W/ WASHER
95707-06600-00
Unavailable
19
STAY, FENDER 3
4BD-21643-00-00
Unavailable
20
BOLT, FLANGE
95817-06012-00
Unavailable
21
SCREW (25G)
90149-06184-00
Unavailable
23
STAY, FENDER 4
4BD-21644-00-00
Unavailable
24
BOLT, FLANGE
95817-06012-00
Unavailable
25
SCREW (25G)
90149-06184-00
Unavailable
