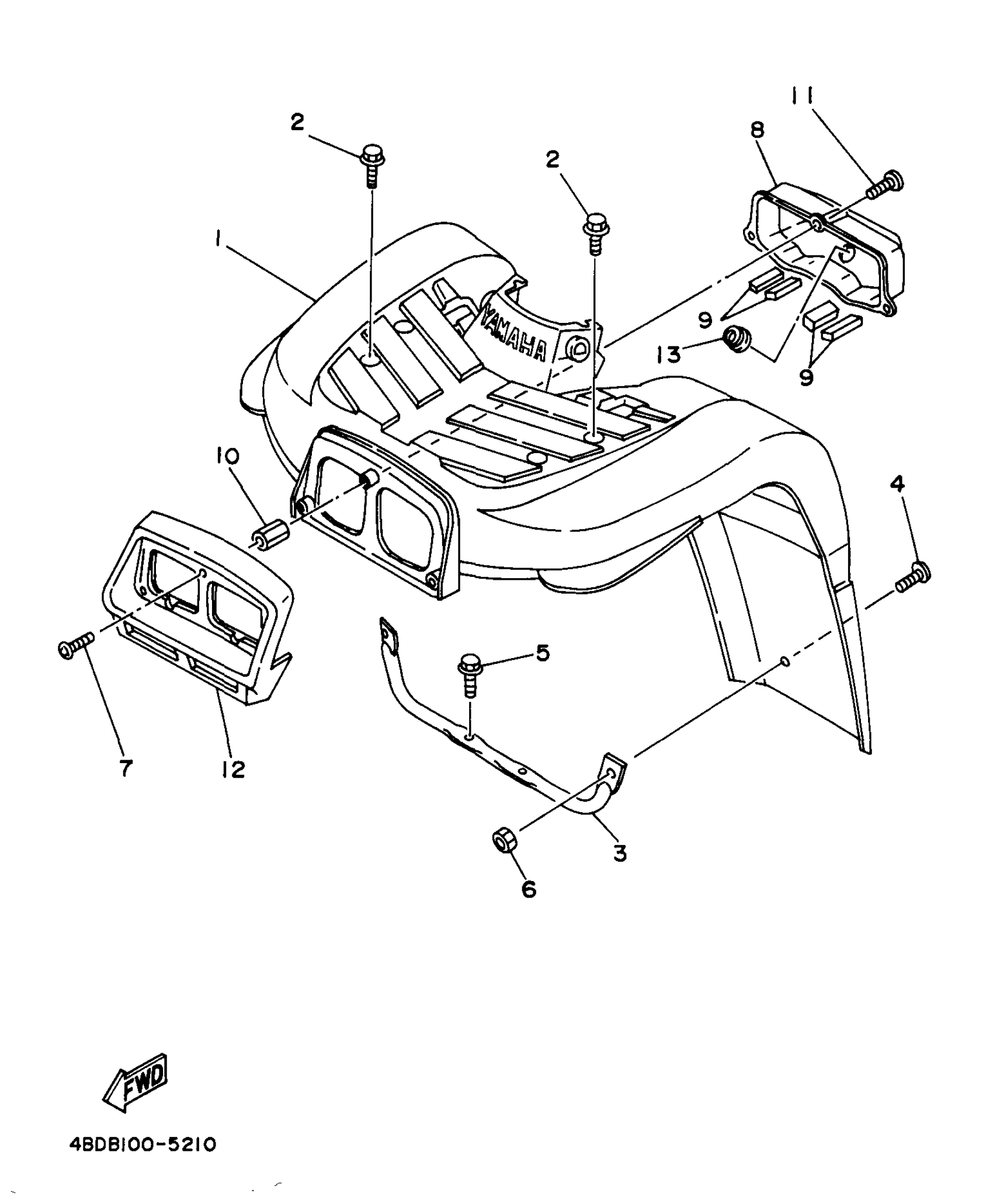

Yamaha YFB250UJ (TIMBERWOLF 2WD) 4BDJ 1997 FRONT FENDER 1 Diagram

#

Description
Price

1

FRONT FENDER COMP.

4BD-W2151-50-00

Unavailable

1

FRONT FENDER COMP.

4BD-W2151-80-00

Unavailable

1

FRONT FENDER COMP.

4BD-W2151-90-00

Unavailable

2

BOLT, WITH WASHER(J38)

90119-08119-00

$7.49

3

STAY, FENDER 1

4BD-21513-00-00

Unavailable

4

SCREW (25G)

90149-06184-00

$4.51

5

BOLT, FLANGE

95817-06012-00

$1.43

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, BINDING (10V)

90154-05013-00

$5.60

8

BODY, HEADLIGHT

2HR-84111-00-00

Unavailable

9

DAMPER 1

83R-14425-00-00

$7.99

10

NUT

90170-05362-00

Unavailable

11

SCREW, BINDING

98907-05014-00

$8.49

12

PANEL, FRONT

2HR-23391-00-00

Unavailable

13

. GROMMET

90480-25461-00

Unavailable
