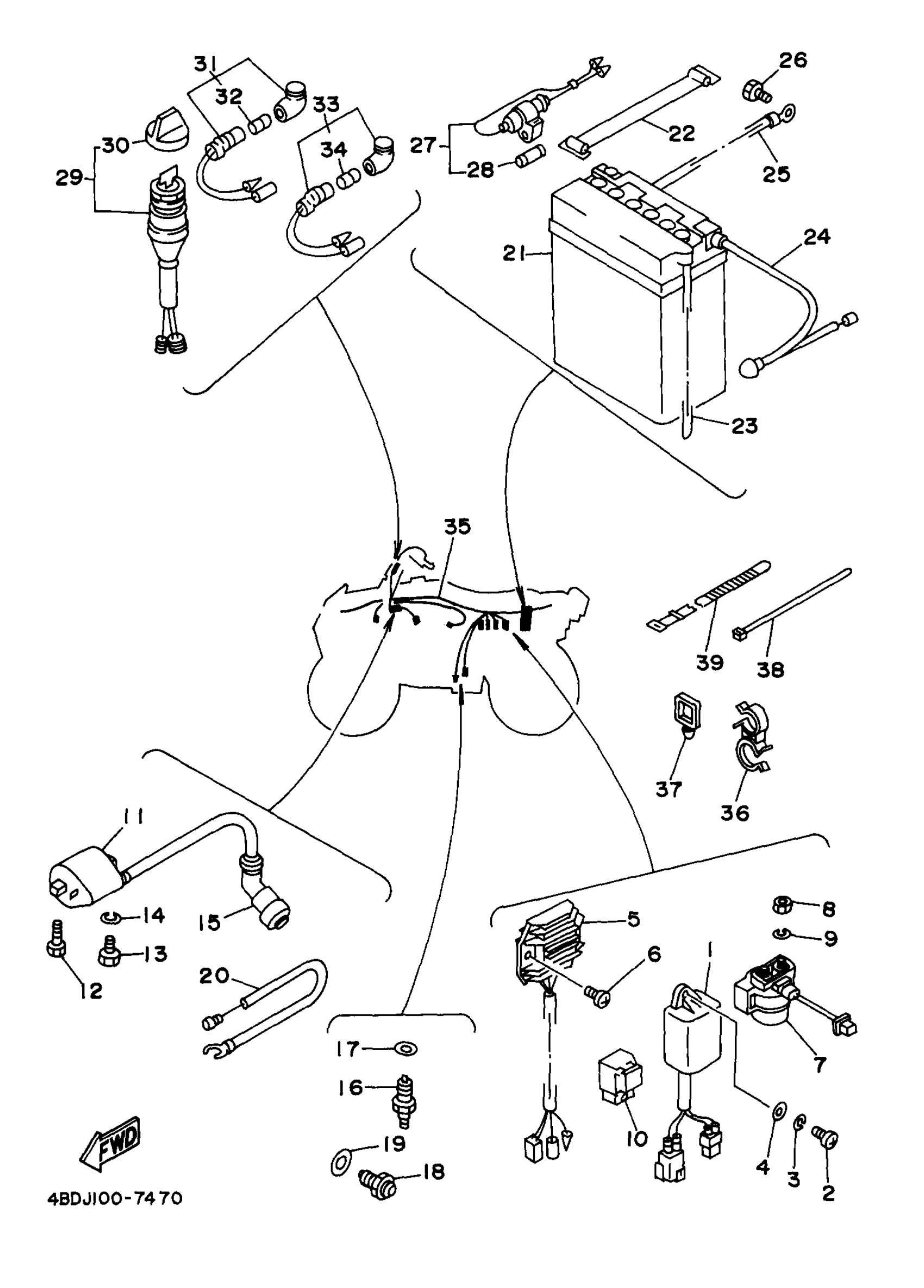

Yamaha YFB250UJ (TIMBERWOLF 2WD) 4BDJ 1997 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

4BD-85540-10-00

Unavailable

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

RECTIFIER & REGULATOR ASSY

4KB-81960-02-00

$287.99

SCREW, BINDING

98907-06020-00

$8.49

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

NUT(JN5)

95317-06700-00

$8.49

WASHER, SPRING

92907-06100-00

$4.25

RELAY ASSY

12R-81950-02-00

$70.99

IGNITION COIL ASSY

3GD-82310-10-00

$153.99

BOLT (21V)

90109-06723-00

$8.49

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER(6TA)

92907-06600-00

$2.72

PLUG CAP ASSY

3NS-82370-00-00

$37.99

NEUTRAL SWITCH ASSY

3GB-82540-01-00

Unavailable

GASKET (5R6)

90430-10171-00

Unavailable

NEUTRAL SWITCH ASSY

4KD-82540-00-00

Unavailable

WASHER, PLATE

90201-12790-00

Unavailable

WIRE, LEAD

4BD-82507-00-00

Unavailable

ACB12CA GS BATTERY WET PACK

ACB-12CA0-00-00

Unavailable

BAND, BATTERY

133-82131-00-00

Unavailable

HOSE (L1500)

90445-084J0-00

Unavailable

WIRE, PLUS LEAD

4BD-82115-01-00

Unavailable

WIRE, MINUS LEAD

89H-82116-00-00

Unavailable

SCREW, HEXAGON (18V)

90153-06044-00

Unavailable

FUSE HOLDER ASSY

2NL-82150-00-00

Unavailable

FUSE (30A)

705-82151-01-00

Unavailable

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

CAP, KEY

3HN-82579-00-00

Unavailable

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

BULB (12V3.4W)

123-83516-21-XX

Unavailable

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

BULB (12V3.4W)

123-83516-21-XX

Unavailable

WIRE HARNESS ASSY

4BD-82590-30-00

Unavailable

CLAMP(3XC)

90464-28153-00

Unavailable

CLAMP (1J7)

90464-16025-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable
