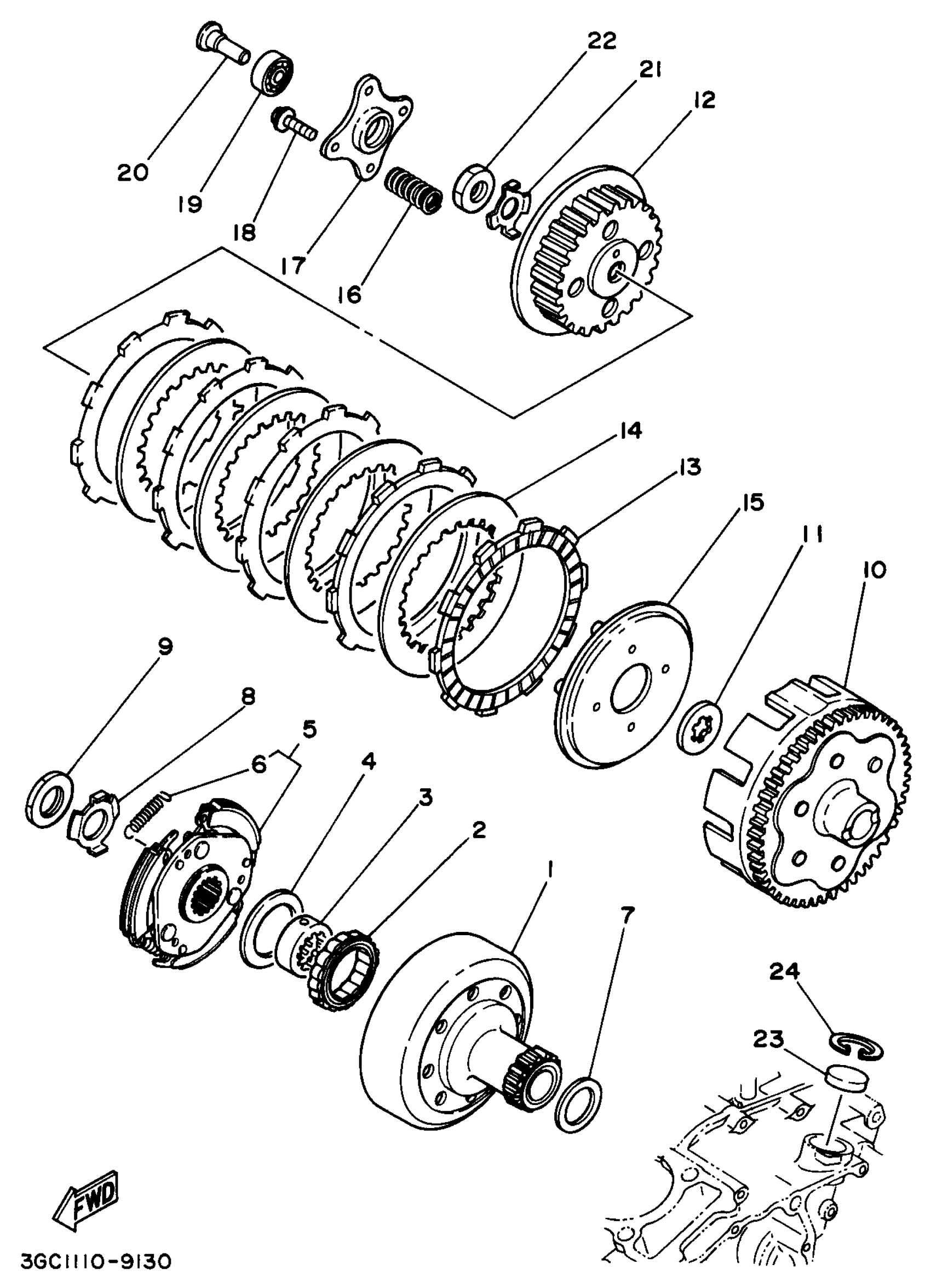

Yamaha YFB250UJ (TIMBERWOLF 2WD) 4BDJ 1997 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

3GC-16611-00-00

Unavailable

2

BEARING,ONE WAY

21V-16664-00-00

$151.99

3

RETAINER, BEARING

21V-16665-01-00

Unavailable

4

WASHER, PLATE(3GC)

90201-404M6-00

$14.99

5

CLUTCH CARRIER ASSY

4BD-16620-01-00

Unavailable

6

SPRING, CLUTCH WEIGHT 1

3GC-16626-01-00

$20.99

7

WASHER, PLATE (21V)

90201-266F6-00

$10.49

8

WASHER, LOCK(1YW)

90215-22259-00

$16.99

9

NUT(1NU)

90170-22371-00

$15.99

10

PRIMARY DRIVEN GEAR COMP.

2HT-16150-00-00

Unavailable

11

PLATE, THRUST 1

5H0-16154-00-00

Unavailable

12

BOSS, CLUTCH

21V-16371-01-00

Unavailable

13

PLATE, FRICTION

3XP-16321-00-00

$19.99

14

PLATE, CLUTCH 1

257-16324-10-00

Unavailable

15

PLATE, PRESSURE 1

21V-16351-00-00

Unavailable

16

SPRING, COMPRESSION(3GC)

90501-243J7-00

Unavailable

17

PLATE, PRESSURE 2

21V-16352-00-00

Unavailable

18

SCREW, WITH WASHER (537)

90159-05011-00

Unavailable

19

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

20

PLATE, PUSH

1YW-16358-00-00

Unavailable

21

WASHER, LOCK (25G)

90215-14186-00

Unavailable

22

NUT (5H0)

90170-14284-00

Unavailable

23

PLUG (21V)

90338-26136-00

Unavailable

24

CIRCLIP (3Y1)

93420-28055-00

Unavailable
