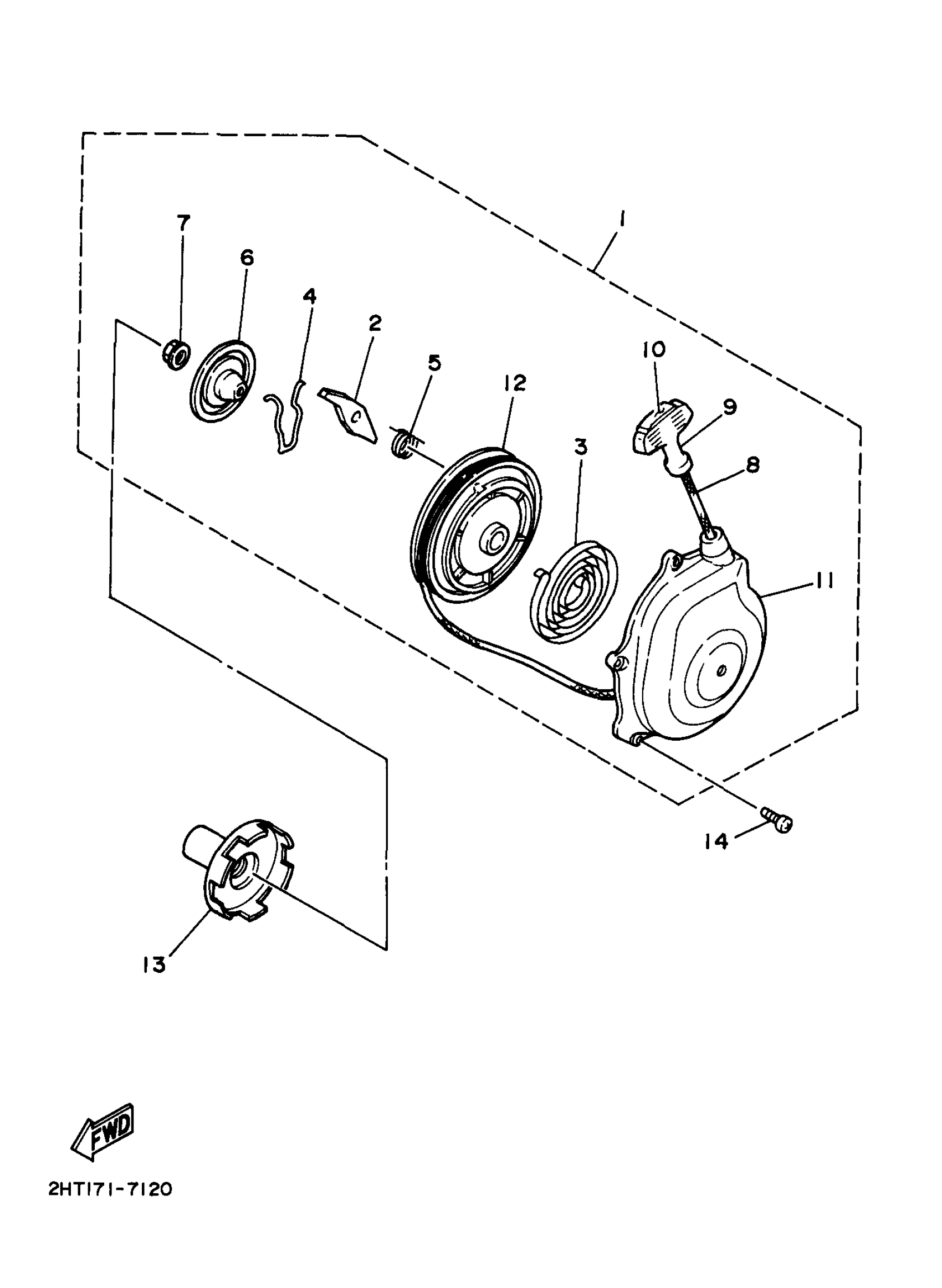

Yamaha YFB250UJ_MNH (TIMBERWOLF 2WD) 4BDJ 1997 STARTER Diagram

#

Description
Price

1

STARTER ASSY

24W-15710-00-00

Unavailable

2

PAWL, DRIVE

21V-15741-00-00

$23.99

3

SPRING, STARTER

21V-15713-00-00

$25.99

4

SPRING, DRIVE PLATE

21V-15715-00-00

$30.99

5

SPRING

21V-15767-00-00

$7.99

6

PLATE, DRIVE

21V-15716-00-00

$27.99

7

NUT, FLANGE(7NB)

95780-06500-00

$2.60

8

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

9

HANDLE, STARTER

3X3-15755-00-00

$29.99

10

CAP, KNOB

21V-15779-00-00

$7.99

11

. CASE, STARTER

24W-15711-00-00

Unavailable

12

DRUM, SHEAVE

24W-15714-00-00

$57.99

13

PULLEY, STARTER

21V-15723-00-00

Unavailable

14

SCREW, PAN

98517-06020-00

$8.49
