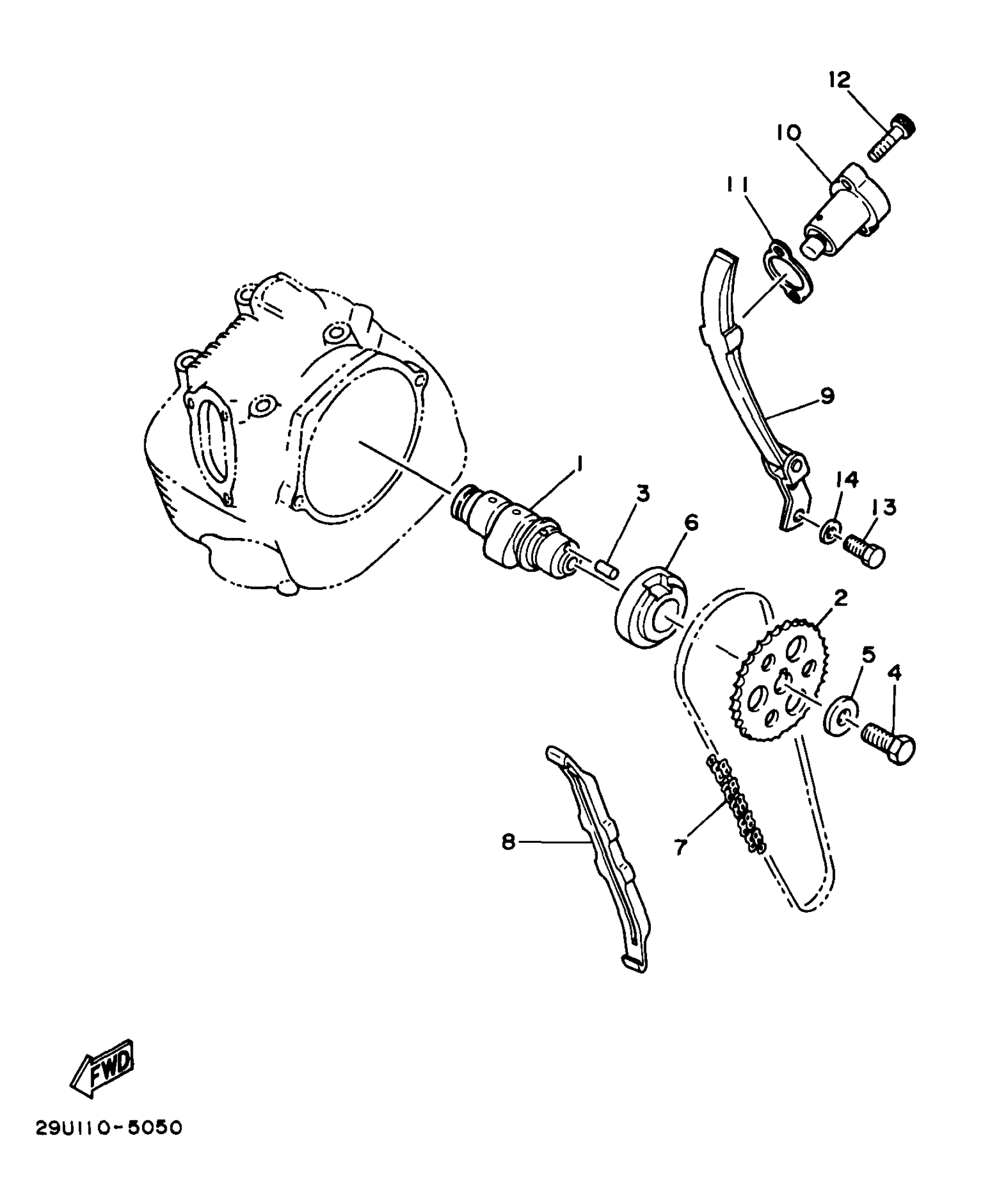

Yamaha YFB250UJ_MNH (TIMBERWOLF 2WD) 4BDJ 1997 CAMSHAFT CHAIN Diagram

CAMSHAFT 1 (5H0-12171-02-00)

99999-01448-00

Unavailable

SPROCKET, CAM CHAIN

5H0-12176-00-00

$27.99

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT (583)

90101-10303-00

$9.49

WASHER, PLATE (3L6)

90201-10774-00

$9.49

COLLAR(2HT)

90387-251T0-00

$34.99

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$81.99

GUIDE, STOPPER 1

5H0-12231-01-00

Unavailable

GUIDE, STOPPER 2

5N0-12241-01-00

$57.99

TENSIONER ASSY, CAM CHAIN

3GC-12210-10-00

$115.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT, WASHER BASED(4KG)

90105-060A0-00

$8.49

BOLT, HEXAGON

97017-06016-00

$8.49

WASHER(6TA)

92907-06600-00

$2.72
