Description

Price

1

REAR ARM COMP. (YB)

4BD-22110-02-33

Unavailable

2

BEARING(4BD)

93332-00080-00

Unavailable

3

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

4

COLLAR(4BD)

90387-1707V-00

$17.99

5

O-RING(53L)

93210-17718-00

$7.49

6

SHAFT, PIVOT

4WV-22141-00-00

$31.99

7

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

8

PLUG (1J7)

90338-34069-00

Unavailable

9

BOOT, RUBBER

29U-22189-00-00

Unavailable

10

CLAMP, HOSE(59V)

90460-85277-00

$16.99

11

CLAMP, HOSE (29U)

90460-99228-00

$16.99

12

COVER

4BD-2219X-02-00

Unavailable

13

DAMPER 1

4KD-2214F-00-00

Unavailable

14

STOPPER, MAIN STAND

116-27114-00-00

$10.99

15

STOPPER, MAIN STAND

128-27114-00-00

$7.99

16

BOLT, FLANGE

95817-08012-00

Unavailable

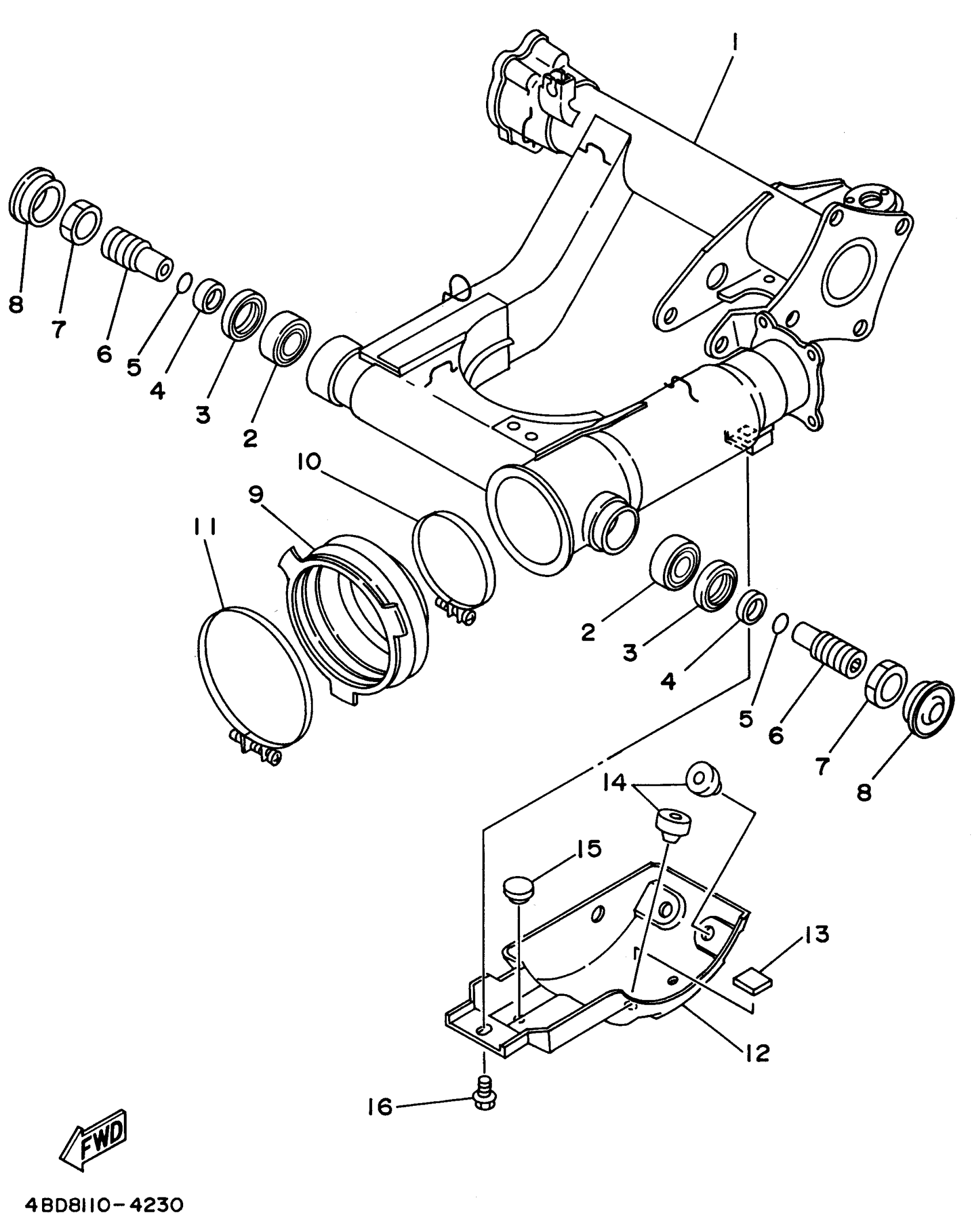

Yamaha YFB250UH_MNH 1996 REAR ARM Diagram

REAR ARM COMP. (YB)

BEARING(4BD)

OIL SEAL (25X40X5-101)

COLLAR(4BD)

O-RING(53L)

SHAFT, PIVOT

NUT, PIVOT SHAFT

PLUG (1J7)

BOOT, RUBBER

CLAMP, HOSE(59V)

CLAMP, HOSE (29U)

COVER

DAMPER 1

STOPPER, MAIN STAND

STOPPER, MAIN STAND

BOLT, FLANGE
