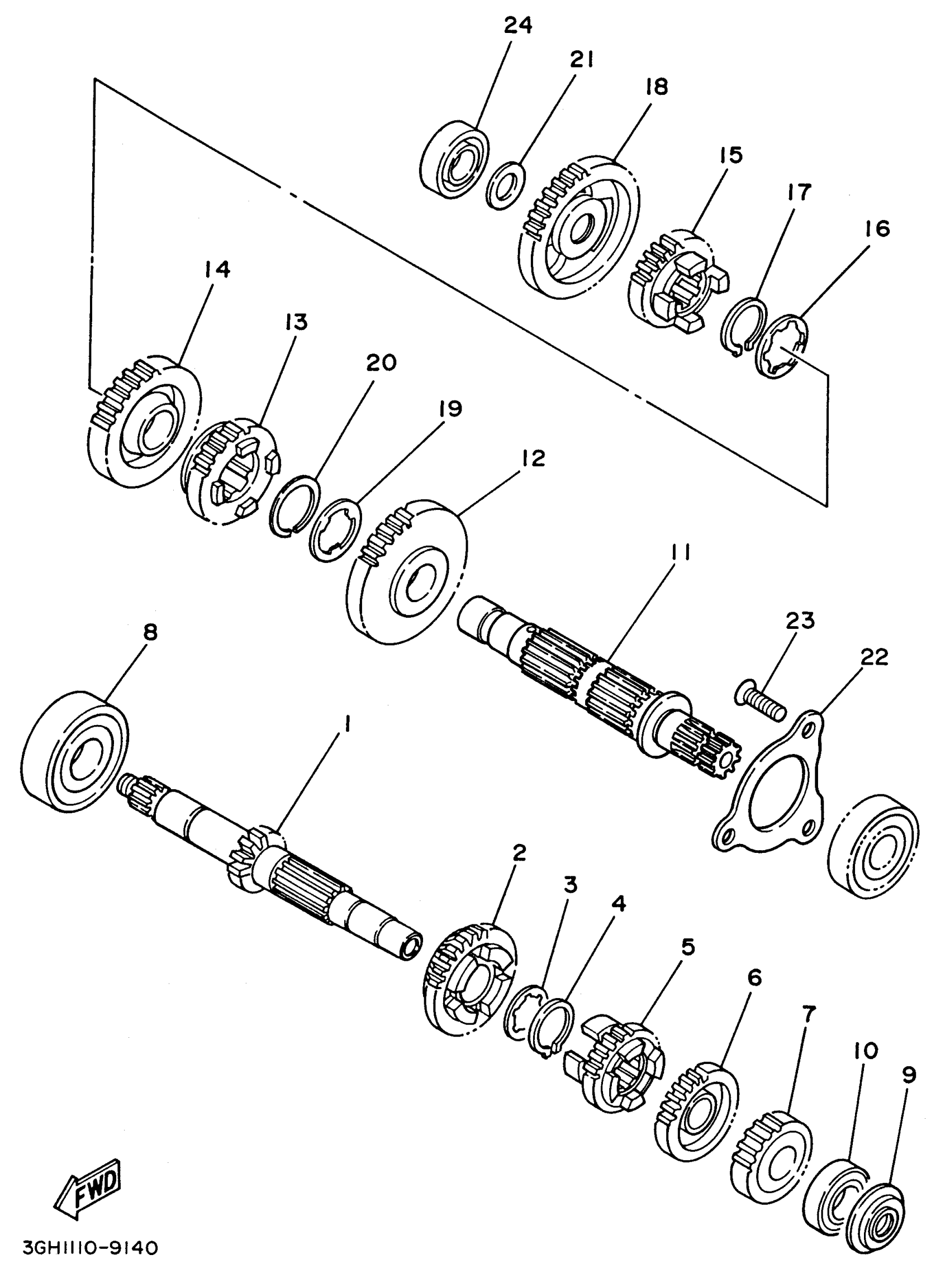

Yamaha YFB250UH 1996 TRANSMISSION Diagram
#
Description
Price
1
MAIN AXLE ASSY
59V-17401-00-00
Unavailable
2
GEAR, 5TH PINION
24W-17151-02-00
Unavailable
5
GEAR, 3RD PINION (22T)
59V-17131-00-00
Unavailable
6
GEAR, 4TH PINION (25T)
59V-17141-00-00
Unavailable
7
GEAR, 2ND PINION
15A-17121-00-00
Unavailable
11
DRIVE AXLE ASSY
24W-17402-00-00
Unavailable
12
GEAR,2ND WHEEL
29U-17221-01-00
Unavailable
13
GEAR, 4TH WHEEL
24W-17241-00-00
Unavailable
14
GEAR, 3RD WHEEL
15A-17231-00-00
Unavailable
15
GEAR, 5TH WHEEL
4BD-17251-00-00
Unavailable
16
WASHER (5H0)
90209-18208-00
Unavailable
17
CIRCLIP (537)
93410-22039-00
Unavailable
18
GEAR, 1ST WHEEL (34T)
29U-17211-00-00
Unavailable
19
WASHER (30X)
90209-23241-00
Unavailable
20
CIRCLIP (30X)
93410-26067-00
Unavailable
21
WASHER, PLATE (4L0)
90201-154E8-00
Unavailable
22
PLATE, BEARING
24W-17558-00-00
Unavailable
23
SCREW
90149-08013-00
Unavailable
