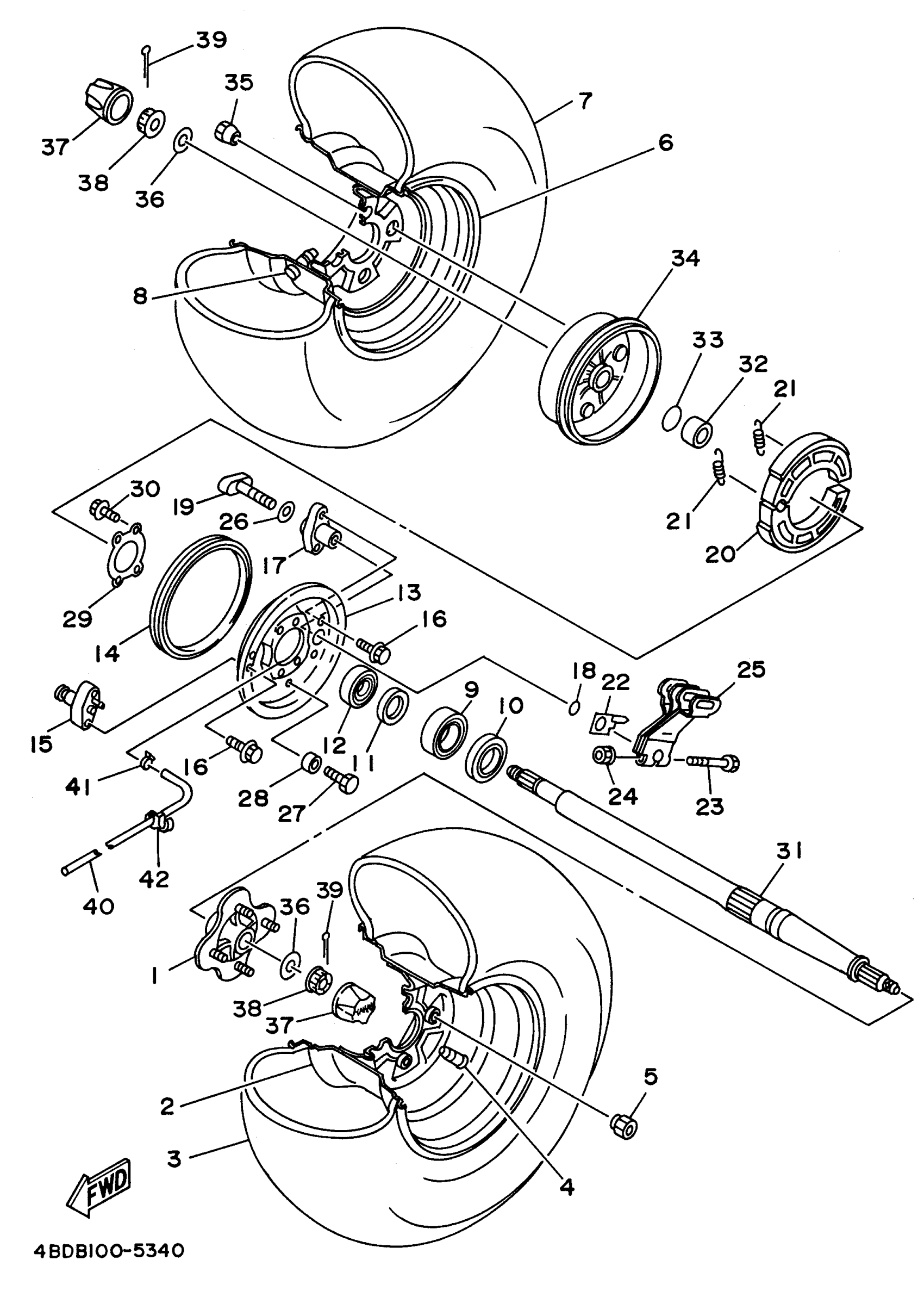

Yamaha YFB250UH 1996 REAR WHEEL Diagram
#
2
REAR WHEEL COMP.
4BD-25390-00-35
Unavailable
3
TIRE (AT 22X10-10)
94110-102Y3-00
Unavailable
6
REAR WHEEL COMP.
4BD-25390-00-35
Unavailable
7
TIRE (AT 22X10-10)
94110-102Y3-00
Unavailable
9
BEARING
93306-00804-00
Unavailable
13
BACKING PLATE ASSY 1
4BD-27280-00-00
Unavailable
15
ANCHOR BODY COMP.
3GH-27206-00-00
Unavailable
16
BOLT, FLANGE
95817-06012-00
Unavailable
17
BRACKET, CAM
3GH-2512E-00-00
Unavailable
18
O-RING (26H)
93210-14579-00
Unavailable
19
CAMSHAFT
3GH-25151-00-00
Unavailable
20
BRAKE SHOE SET
4BD-W2536-01-00
Unavailable
21
SPRING, RETURN
2NL-25133-00-00
Unavailable
22
PLATE, INDICATOR
3GH-2513A-00-00
Unavailable
23
BOLT
90101-06652-00
Unavailable
24
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
25
LEVER, CAMSHAFT
4BD-25355-00-00
Unavailable
26
WASHER
2NL-25153-00-00
Unavailable
27
BOLT, CALIPER
3GH-25818-00-00
Unavailable
28
WASHER
3GH-25898-00-00
Unavailable
29
RETAINER
4BD-46513-00-00
Unavailable
30
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
31
AXLE, WHEEL
4BD-25381-11-00
Unavailable
32
COLLAR, WHEEL
4BD-25377-00-00
Unavailable
33
O-RING(22F)
93210-26662-00
Unavailable
34
HUB, FRONT
3HN-25111-10-00
Unavailable
36
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
37
CAP, WHEEL
52H-2512A-00-00
Unavailable
38
NUT, CASTLE
90171-16001-00
Unavailable
39
PIN, COTTER
91490-30030-00
Unavailable
40
HOSE (L1700)
90445-070G6-00
Unavailable
41
CLIP(42X)
90467-07093-00
Unavailable
42
CLIP(33M)
90468-15139-00
Unavailable
