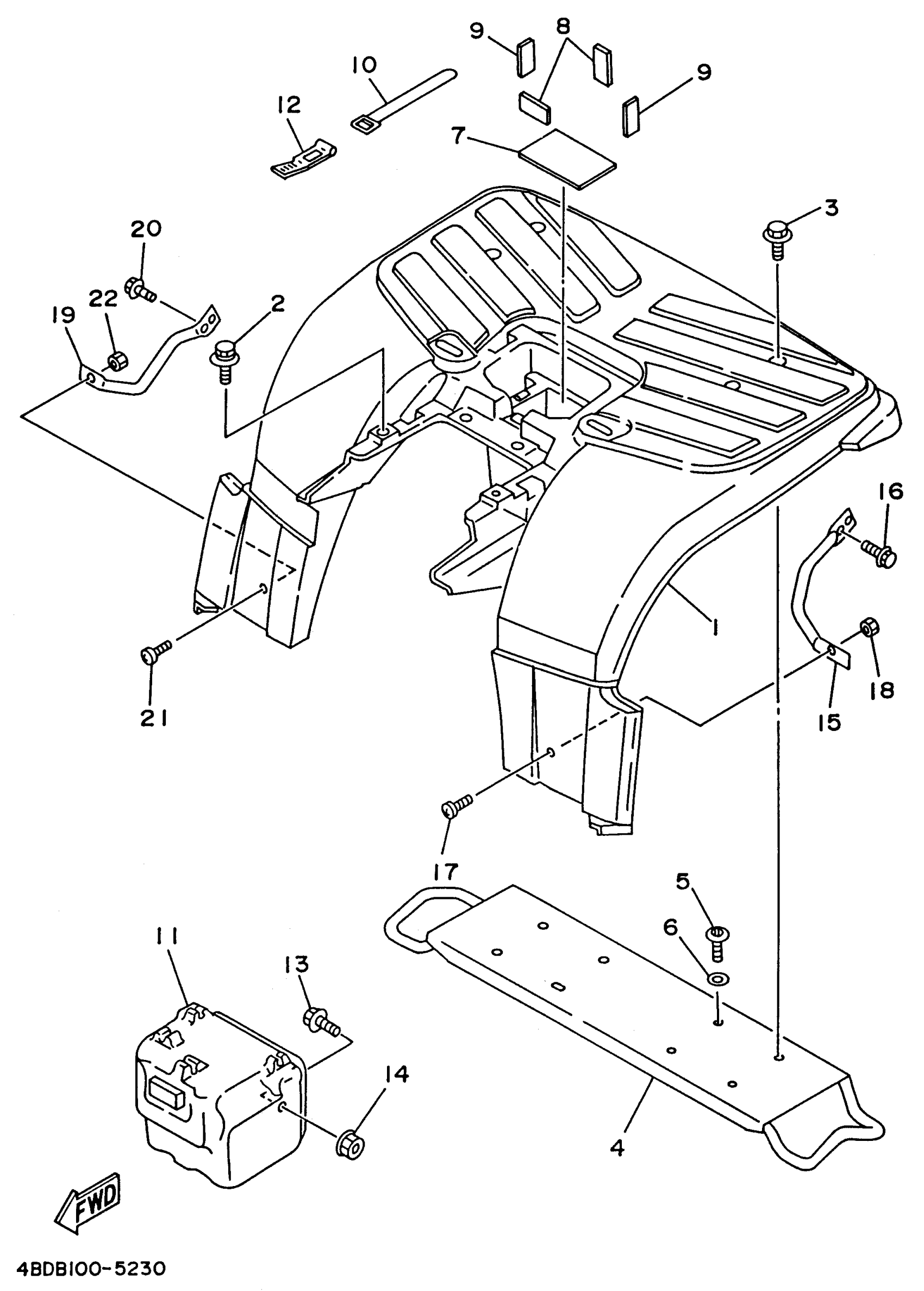

Yamaha YFB250UH 1996 REAR FENDER 2 (FOR YFB250H ONLY) Diagram

#

Description
Price

1

FENDER, REAR (CYAN)

4BD-21611-01-00

Unavailable

1

FENDER,REAR (RED)

4BD-21611-31-00

Unavailable

2

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

3

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

4

STAY, FENDER 1

4BD-21613-00-00

Unavailable

5

BOLT, BUTTON

92017-08014-00

$8.49

6

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

7

DAMPER 2

4BD-21639-00-00

Unavailable

8

DAMPER

1YW-21638-00-00

Unavailable

9

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

10

CLAMP(4BD)

90464-48174-00

$3.50

11

BOX COMP.

4BD-2160A-00-00

Unavailable

12

BAND

59V-21646-00-00

$22.99

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

NUT, W/ WASHER

95707-06600-00

$7.49

15

STAY, FENDER 3

4BD-21643-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

SCREW (25G)

90149-06184-00

Unavailable

18

NUT, SELF-LOCKING

95617-06100-00

Unavailable

19

STAY, FENDER 4

4BD-21644-00-00

Unavailable

20

BOLT, FLANGE

95817-06012-00

Unavailable

21

SCREW (25G)

90149-06184-00

Unavailable

22

NUT, SELF-LOCKING

95617-06100-00

Unavailable
