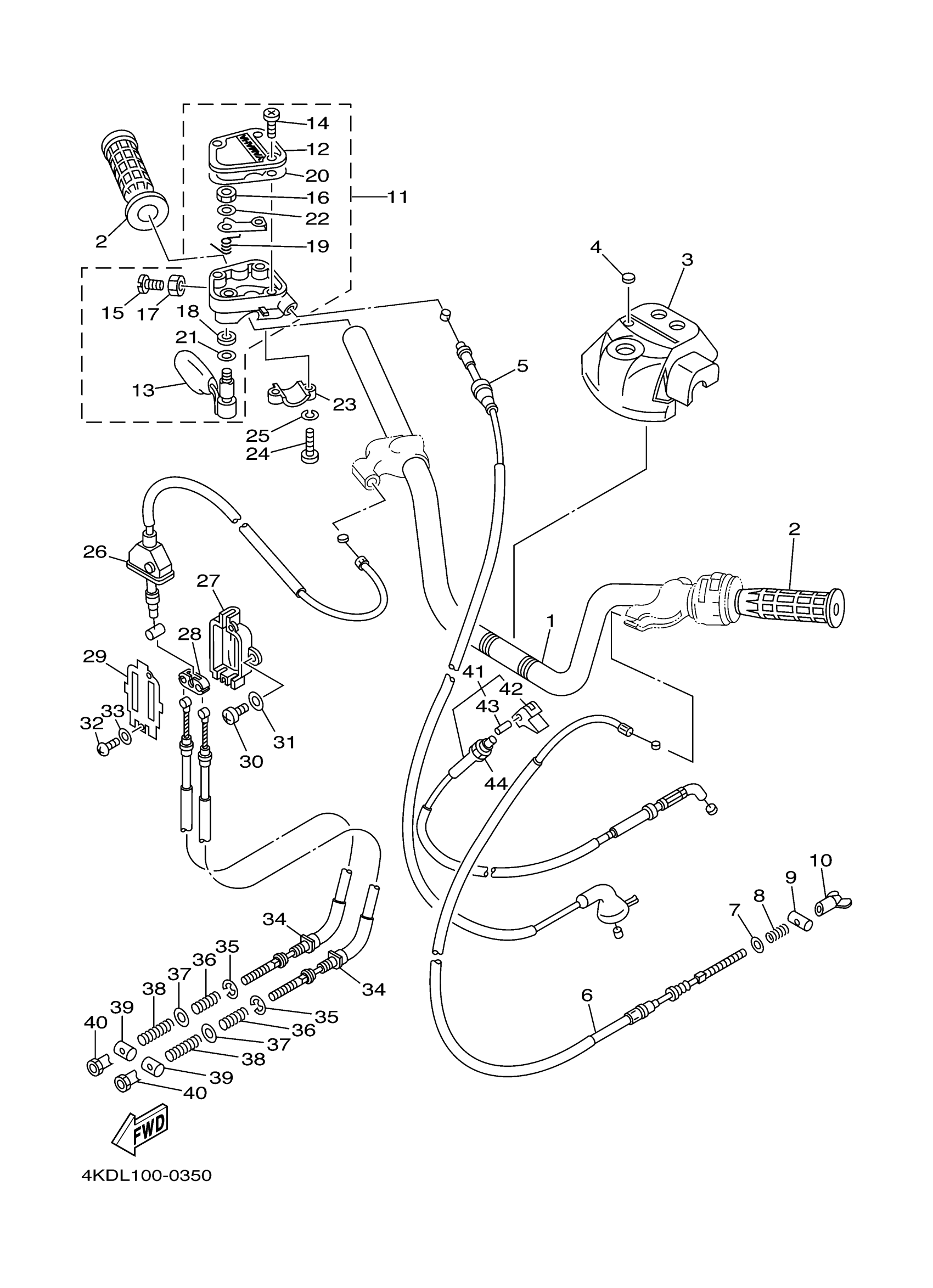

Yamaha YFB250FWM (TIMBERWOLF 4WD) 4KDL 2000 STEERING HANDLE CABLE Diagram
#
1
HANDLEBAR
3FA-26111-20-00
Unavailable
3
PROTECTOR,HANDLEBAR
4BD-26124-01-00
Unavailable
7
WASHER, PLATE(2EX)
90202-08175-00
Unavailable
11
THROTTLE LEVER ASSY
1NV-26250-01-00
Unavailable
12
. CAP, GEAR
1NV-2628F-00-00
Unavailable
13
LEVER, THROTTLE
1NV-2625G-02-00
Unavailable
16
NUT, U
95617-05100-00
Unavailable
17
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
18
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
19
SPRING
1NV-26304-00-00
Unavailable
20
. GASKET
1NV-2628G-00-00
Unavailable
21
WASHER
1NV-26129-00-00
Unavailable
22
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
23
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
25
WASHER(3SX)
92907-05100-00
Unavailable
26
CABLE, BRAKE 4
4BD-26373-01-00
Unavailable
27
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
28
JOINT, CABLE
52H-26347-01-00
Unavailable
29
PLATE
52H-2631G-00-00
Unavailable
30
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
31
WASHER(3SX)
92907-03600-00
Unavailable
32
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
33
WASHER(1RW)
92907-05600-00
Unavailable
34
CABLE, BRAKE
4KD-26361-01-00
Unavailable
35
CIRCLIP(53L)
99001-06600-00
Unavailable
36
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
37
WASHER(52H)
90209-06265-00
Unavailable
38
SPRING, COMPRESSION (29U)
90501-10782-00
Unavailable
40
NUT (25K)
90179-06411-00
Unavailable
41
CABLE, STARTER 1
4BD-26331-01-00
Unavailable
42
LEVER
21V-26374-00-00
Unavailable
43
PIN, SPRING (663)
91690-30010-00
Unavailable
44
Nut
8G8-26333-00-00
Unavailable
