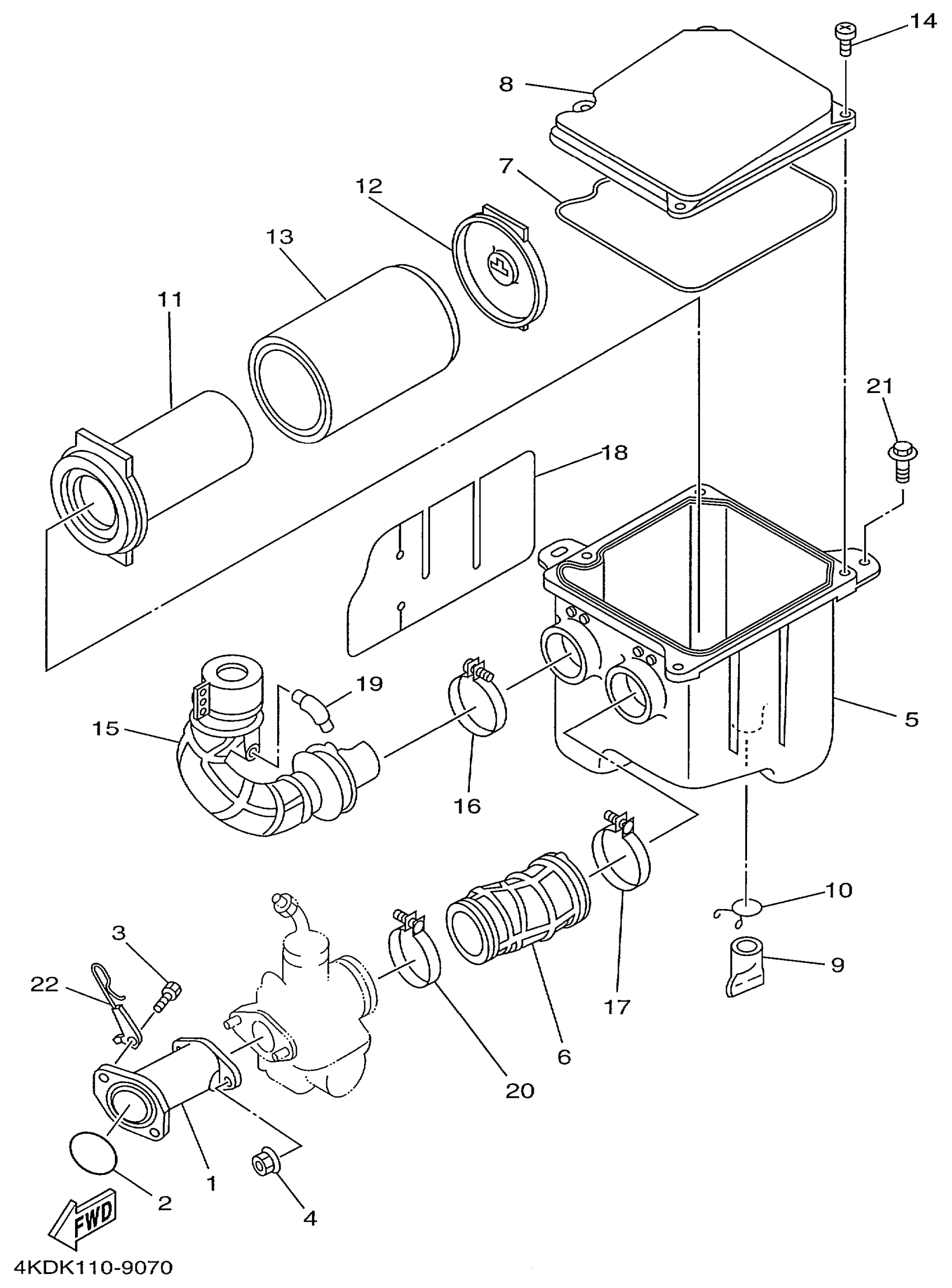

Yamaha YFB250FWL (TIMBERWOLF 2WD) 4KDK 1999 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

29U-13586-01-00

$80.99

2

O-RING (16G)

93210-35537-00

$14.49

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

NUT, FLANGE(4MV)

95707-06500-00

$1.23

5

CASE,AIR CLEANER

3GH-14411-01-00

Unavailable

6

JOINT, AIR CLEANER 1

4KD-14453-01-00

$53.99

7

SEAL

1VJ-14462-00-00

$18.49

8

CAP, CLEANER CASE 1

21V-14412-01-00

$18.49

9

SEAL

59V-14457-00-00

$6.99

10

CLIP (21V)

90467-22080-00

$8.49

11

GUIDE

1YW-14458-01-00

$79.99

12

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

13

ELEMENT,AIR CLNR

1YW-14451-01-00

$18.49

14

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

15

DUCT

4BD-14437-00-00

Unavailable

16

HOSE CLAMP ASSY

90450-58002-00

Unavailable

17

HOSE CLAMP ASSY

90450-56001-00

Unavailable

18

PROTECTOR

4BD-1442F-00-00

Unavailable

19

PIPE

31A-14419-00-00

Unavailable

20

HOSE CLAMP ASSY(10F)

90450-45075-00

Unavailable

21

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable

22

GUIDE

4BD-2631F-00-00

Unavailable
