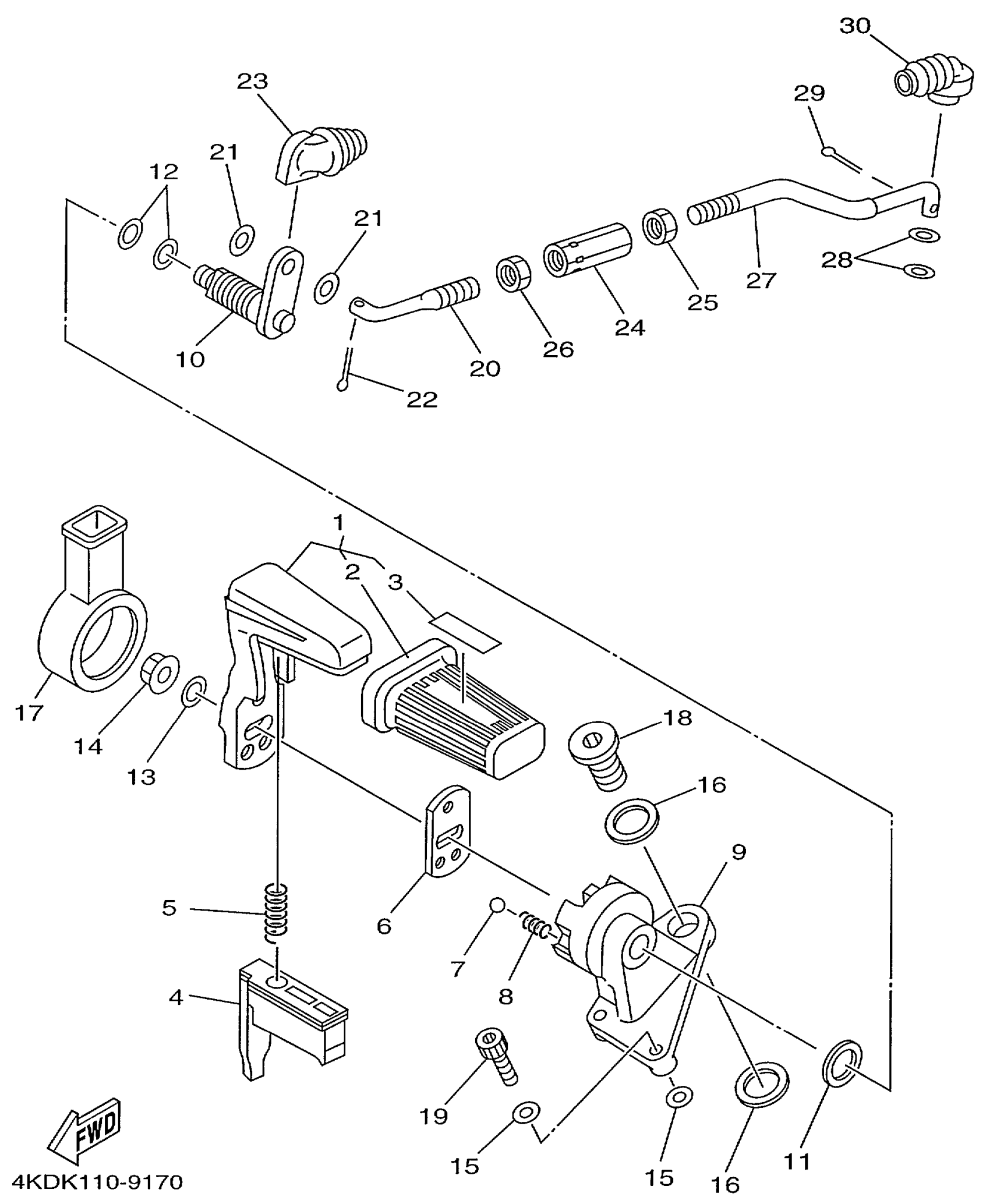

Yamaha YFB250FWL (TIMBERWOLF 2WD) 4KDK 1999 DRIVE SELECTOR Diagram

#

Description
Price

1

SHIFT LEVER ASSY

52G-18150-00-00

Unavailable

2

COVER, SHIFT PEDAL

52G-18113-00-00

$24.99

3

. LABEL

52G-1815A-00-00

Unavailable

4

KNOB, SHIFT LEVER

4KD-18174-01-00

$41.99

5

SPRING, COMPRESSION(52G)

90501-101A7-00

$9.49

6

PLATE, SIDE 1

52G-18561-00-00

Unavailable

7

BALL

93509-32012-00

Unavailable

8

SPRING, COMPRESSION(52G)

90501-103A1-00

$9.49

9

GUIDE, SHIFT RETURN SPRING

52H-18153-00-00

Unavailable

10

SHAFT, RINK

52H-18341-00-00

Unavailable

11

WASHER, PLATE(52G)

90201-144J2-00

$8.49

12

. O-RING

93210-10010-00

Unavailable

13

WASHER, PLATE(52G)

90201-064J1-00

$4.72

14

NUT, FLANGE(4MV)

95707-06500-00

$1.23

15

WASHER, PLATE(4BD)

90201-067P3-00

$5.60

16

WASHER, PLATE(4BD)

90201-147P2-00

Unavailable

17

COVER, SHIFT SPRING

52G-18433-00-00

Unavailable

18

PLUG, STRAIGHT SCREW

90340-14107-00

Unavailable

19

BOLT,SOCKET

91317-06020-00

Unavailable

20

JOINT, ROD 2

52G-18117-00-00

Unavailable

21

WASHER(6TA)

92907-06200-00

Unavailable

22

PIN, COTTER (648)

91490-20015-00

Unavailable

23

COVER, DUST

5R2-18154-00-00

Unavailable

24

NUT, ADJUST

52G-18187-00-00

Unavailable

25

NUT(6TA)

95337-08600-00

Unavailable

26

NUT

90170-08261-00

Unavailable

27

JOINT, ROD 1

52G-18116-00-00

Unavailable

28

WASHER(6TA)

92907-06200-00

Unavailable

29

PIN, COTTER (648)

91490-20015-00

Unavailable

30

COVER, DUST

10W-18154-00-00

Unavailable
