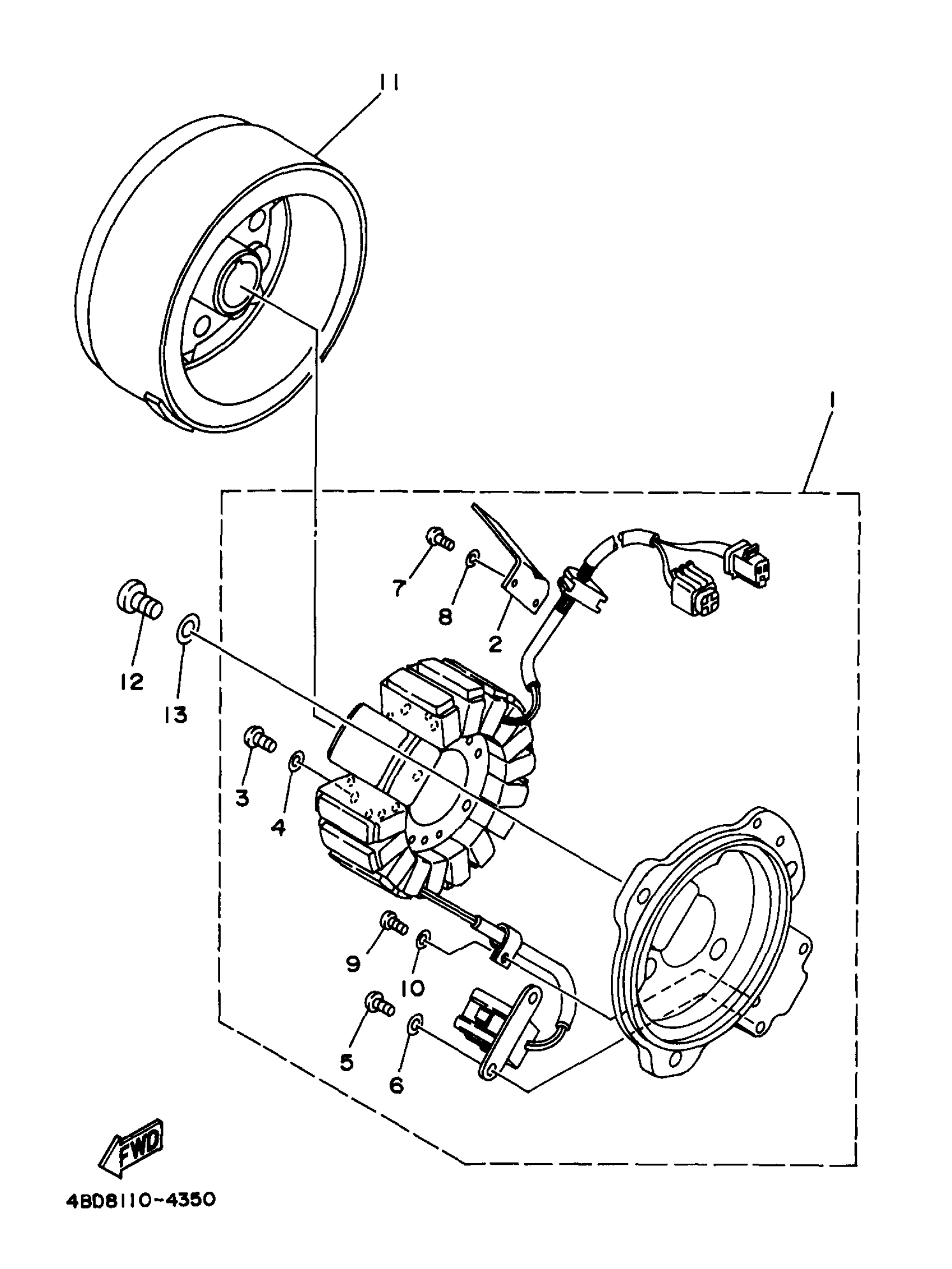

Yamaha YFB250FWK (TIMBERWOLF 4WD) 4KDF 1998 GENERATOR Diagram

STATOR ASSY

4BD-85510-20-00

Unavailable

. COVER

21V-85525-00-00

Unavailable

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

SCREW,PAN HEAD

98501-04006-00

Unavailable

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

ROTOR ASSY

4BD-85550-20-00

Unavailable

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER(6TA)

92907-06600-00

$2.72
