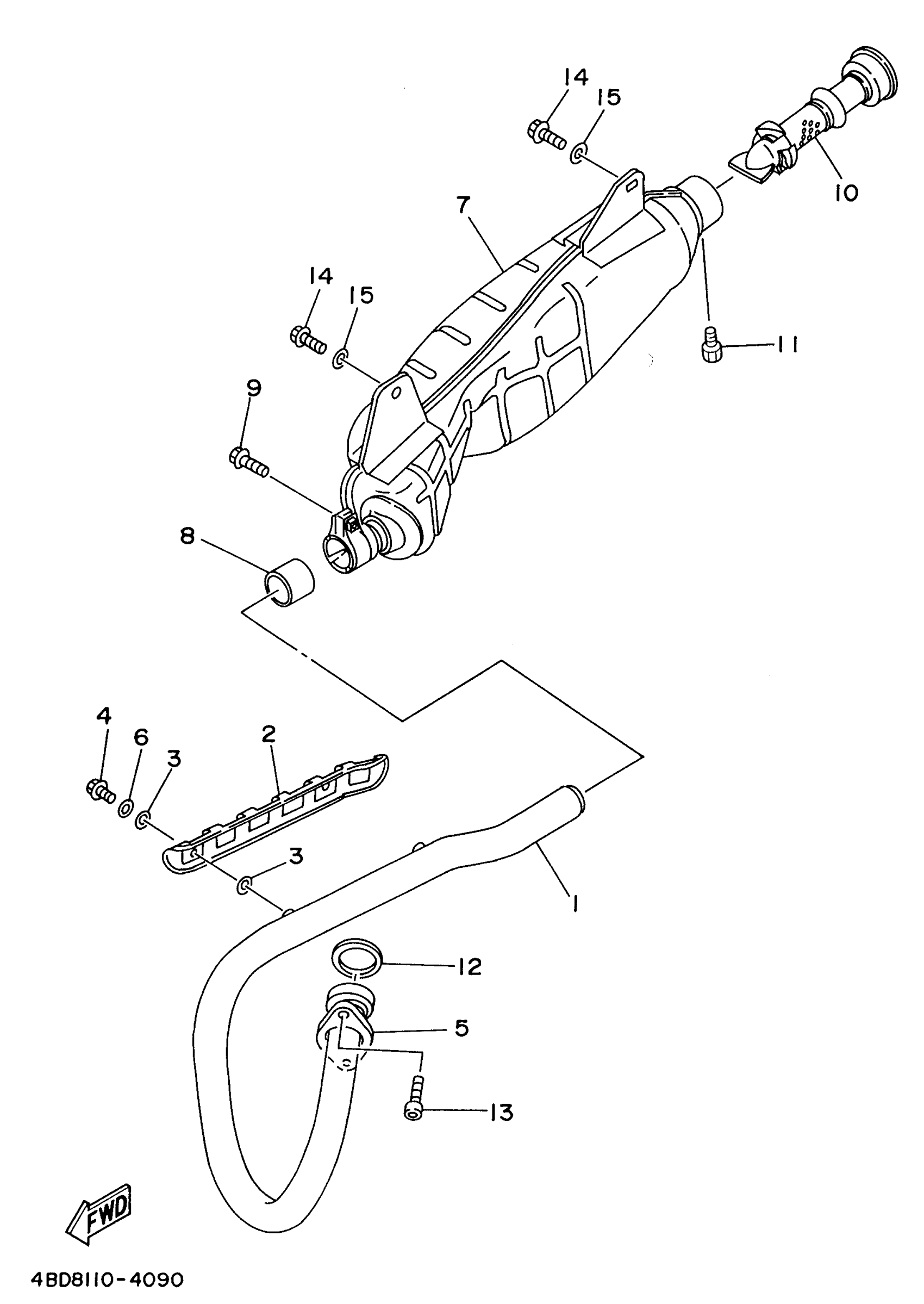

Yamaha YFB250FWK (TIMBERWOLF 4WD) 4KDF 1998 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

4KD-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

3Y1-14628-00-00

Unavailable

3

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

4

BOLT, SMALL FLANGE

95027-06008-00

$7.99

5

NUT, RING

5H0-14612-01-00

$16.49

6

WASHER, WAVE(3RW)

90206-06090-00

$8.49

7

MUFFLER 1

4BD-14711-01-00

Unavailable

8

GASKET, MUFFLER

3YF-14714-00-00

$36.99

9

BOLT, FLANGE(4MY)

95027-08025-00

$9.49

10

PIPE, OUTLET

21V-14752-00-00

Unavailable

11

BOLT,HEXAGON

97017-06008-00

$3.55

12

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

13

BOLT,SOCKET

91317-06020-00

Unavailable

14

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

15

WASHER (853)

90201-08326-00

$8.49
