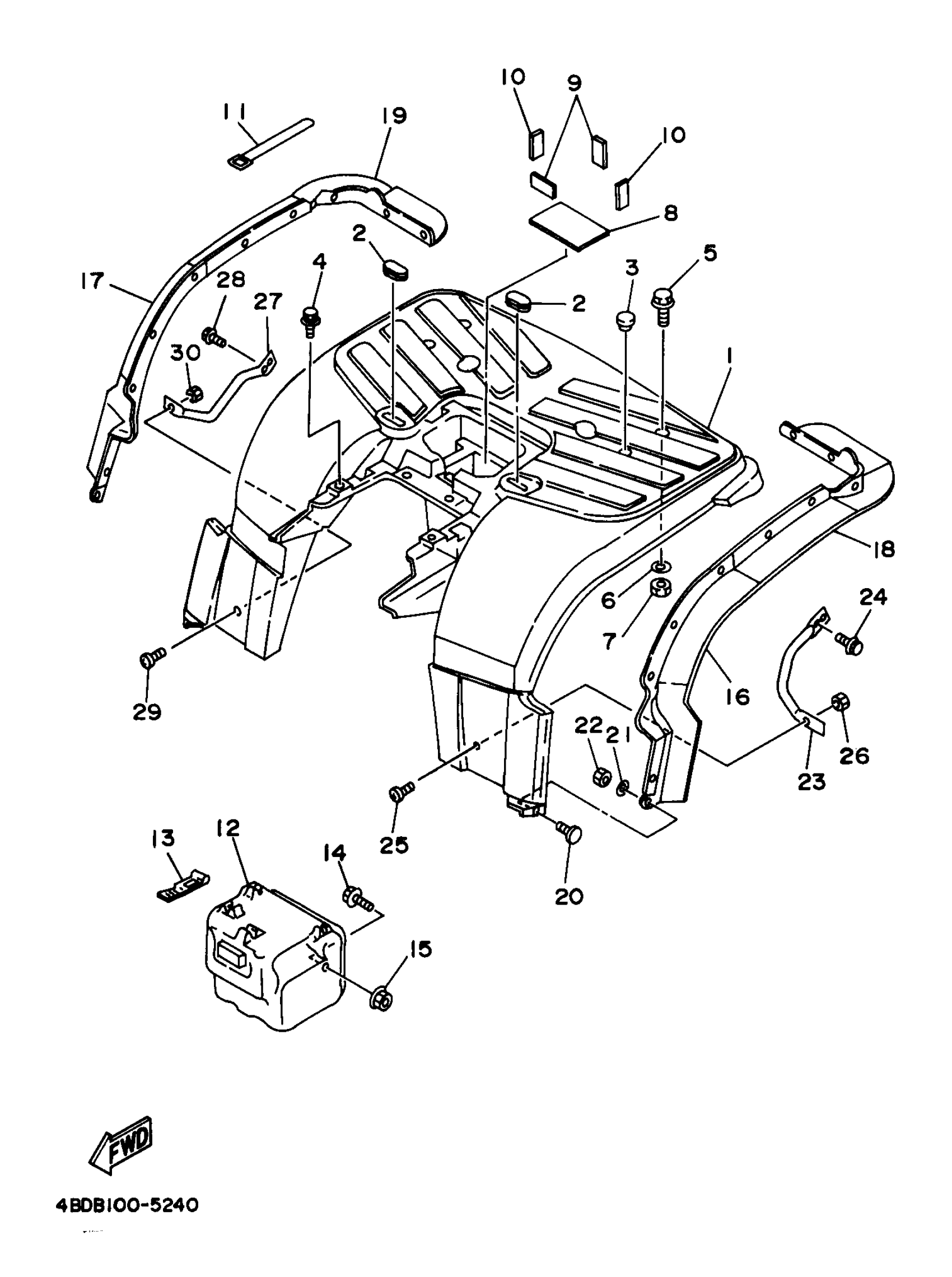

Yamaha YFB250FWJ (TIMBERWOLF 4WD) 4KDB 1997 REAR FENDER Diagram
#
Description
Price
1
R. FENDER ASSEMBLY (DNRS1)
4BD-W2161-M0-00
Unavailable
1
R. FENDER ASSEMBLY (PDG)
4BD-W2161-U0-00
Unavailable
2
GROMMET
90480-01556-00
Unavailable
8
DAMPER 2
4BD-21639-00-00
Unavailable
9
DAMPER
1YW-21638-00-00
Unavailable
10
DAMPER, SIDE COVER
26H-21746-00-00
Unavailable
12
BOX COMP.
4BD-2160A-00-00
Unavailable
15
NUT, W/ WASHER
95707-06600-00
Unavailable
16
FLAP
4BD-21621-00-00
Unavailable
17
FLAP
4BD-21691-00-00
Unavailable
18
FLAP 3
4BD-2162H-00-00
Unavailable
19
FLAP 4
4BD-2162J-00-00
Unavailable
20
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
21
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
22
NUT, NYLON
95707-05300-00
Unavailable
23
STAY, FENDER 3
4BD-21643-00-00
Unavailable
24
BOLT, FLANGE
95817-06012-00
Unavailable
25
SCREW (25G)
90149-06184-00
Unavailable
27
STAY, FENDER 4
4BD-21644-00-00
Unavailable
28
BOLT, FLANGE
95817-06012-00
Unavailable
29
SCREW (25G)
90149-06184-00
Unavailable
